19

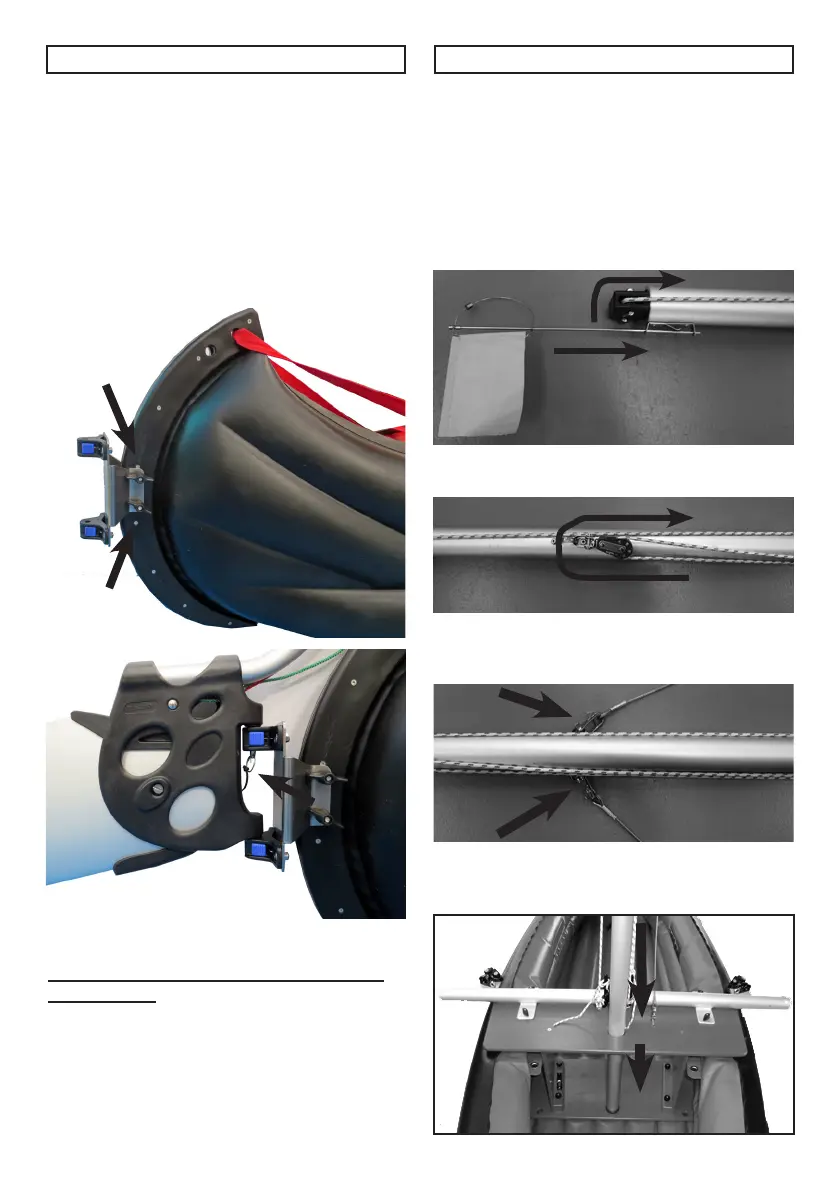

Fasten the rudder assembly with both
wing nuts in-situ direct to the transom.
Slot the 3 mast sections together, they
must click into place.
Feed the main-halyard end without the
carbine over the mast top pulley wheels,
from the rear.
Insert the mast head y from above into
the 2 holes of the bracket at the top of the
upper mast element.
Feed the jib-halyard over the pulley
wheel of the upper mast element.
Attach both shrouds to the eyes at the
side on the lower section of the upper
mast element.
Erect the mast and feed it through the
hole of the xing frame top panel, and
place it over the stub on the base plate.
Drill the holes at the positions marked on
the stern mount strake, using a drill bit
8.5 mm (not supplied).
Place the rudder hinge over the stern
mount strake and tension the two wing
nuts.
Insert the rudder into the rudder hinge
and secure it with the retaining ring.
