m906 Key Features
•Multiple 5.1 and stereo analog inputs
•24-bit/192kHz digital 5.1 and stereo inputs – AES3, S/PDIF, ADAT and TOSLINK formats
•s-Lock
tm
PLL (Phase Lock Loop) for ultra-low jitter sample clock regeneration
•Precision main and headphone level controls with a 100dB gain range in 0.5dB steps
•All controls built into an elegant, convenient desktop remote control unit
•All I/O and audio are routed in a 2U, 19” rack mount mainframe with an external 1U, 
rack linear power supply
•Multiple speaker set selection – two surround/stereo sets and a third stereo set
•High current reference headphone amplier built in – one output on the remote
control unit and an additional output on the system mainframe
•Comprehensive system level calibration (inputs, outputs, inter-channel balance, dim)
•Individual channel solo/mute
•Balanced talkback microphone input with 48V phantom power with an activation
switch on remote and an additional external switch control jack
•Fixed level 5.1 DAC output for digital to analog transfers
•5 year limited warranty on parts and labor

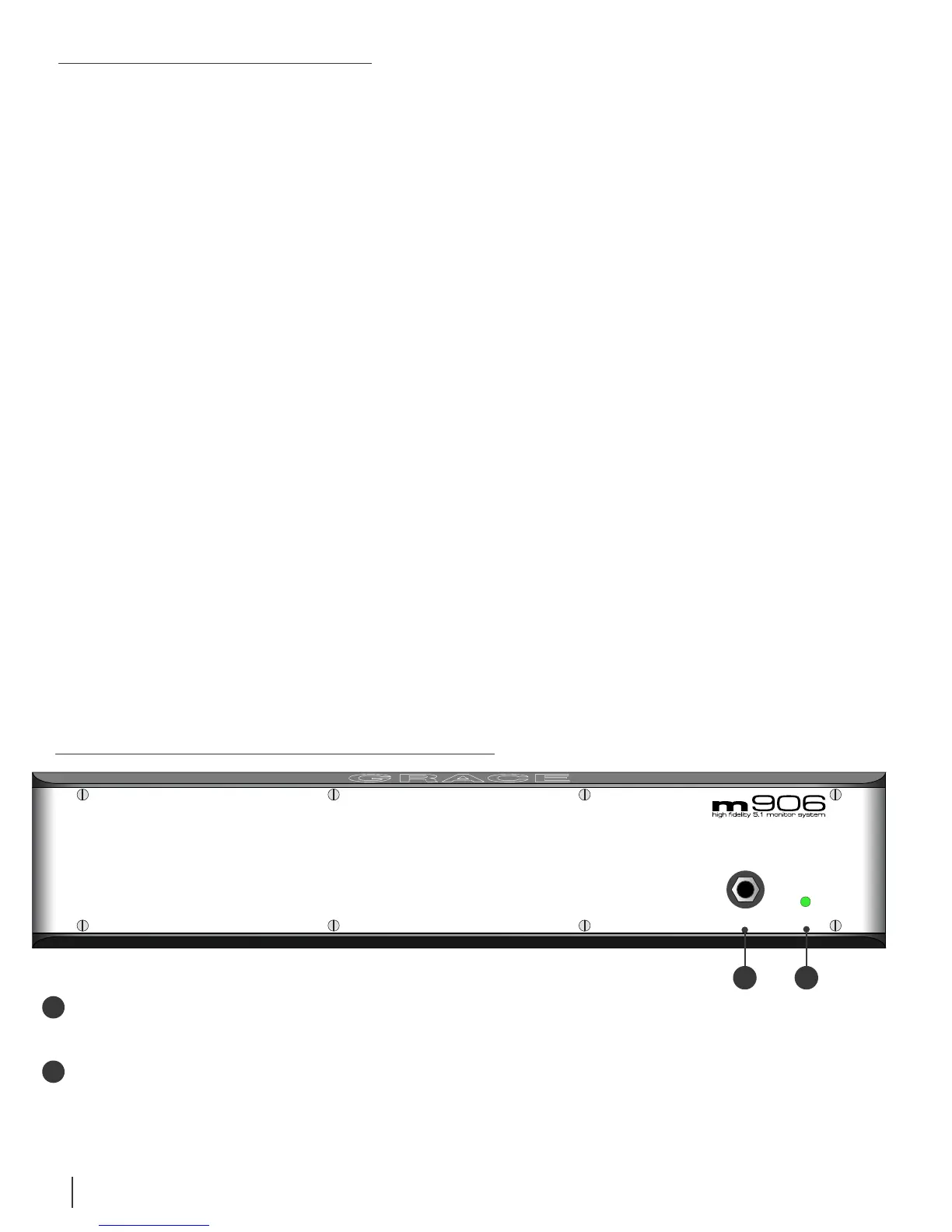

m906 mainframe frontpanel
power
headphone
GRACE DESIGN USA
A
B
HEADPHONE OUTPUT The mainframe headphone output is provided via a ” TRS (Tip,
Ring, Sleeve) jack. This output runs parallel with the headphone jack on the remote unit.
POWER LED The green POWER LED is illuminated when power is received from the external
power supply to the rear panel mounted DC input.
