Grace Design m906 - M906 Mainframe Rearpanel

grace design m906
owner’s manual
4
grace design m906
owner’s manual
5

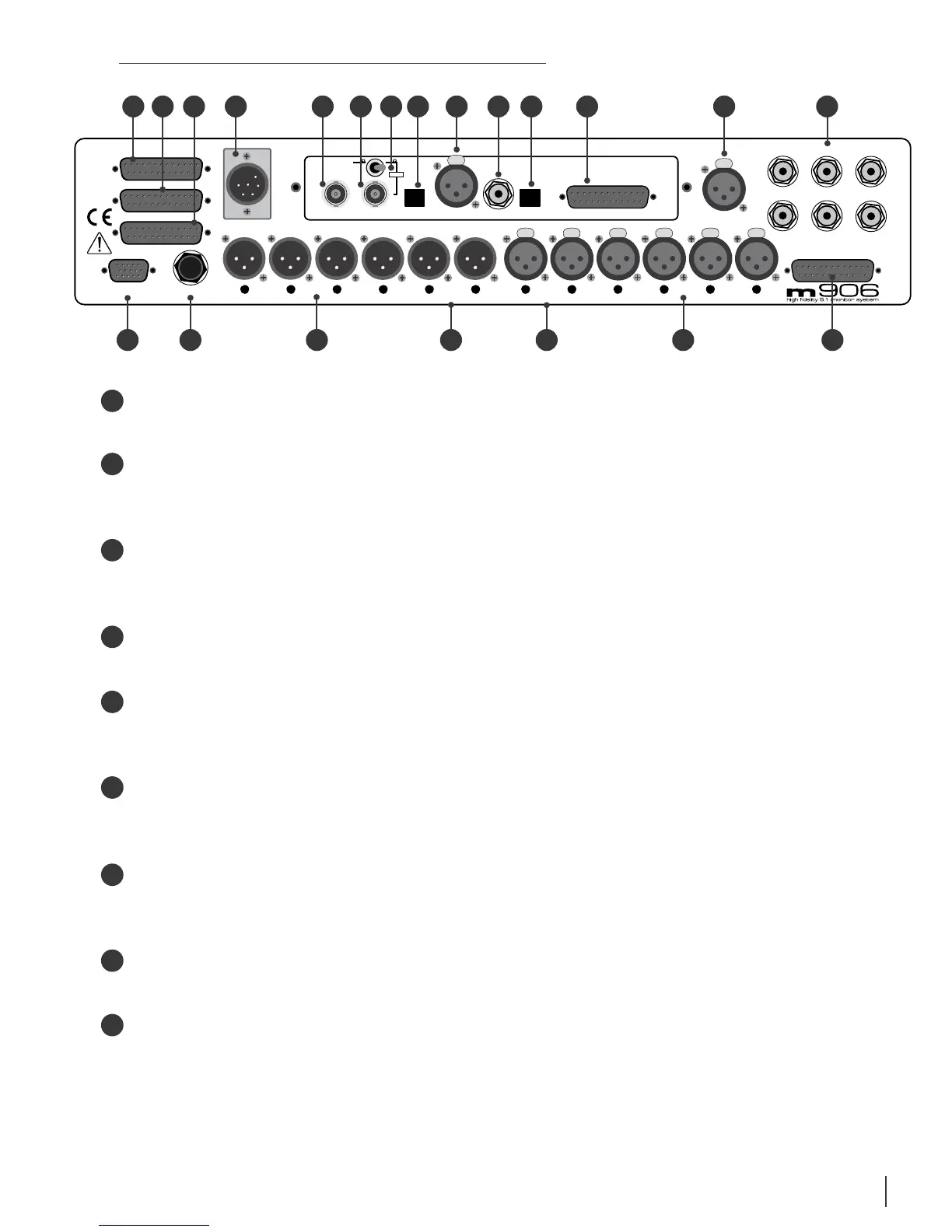

m906 mainframe rearpanel
TB MIC
5.1 CR OUT 2
5.1 CR OUT 1
5.1 INPUT 1
LS RS Sub
DC IN
5.1 DAC OUT
5.1 INPUT 2
REMOTE TB SW
2 CH 2
L R
GRACE DESIGN USA
2 CH 1
L
R
CUE IN
L
R
CUE OUT
L
R
CR OUT 2
L
R
CR OUT 1
L
R
Left RightCenter
DIGITAL INPUTS / SYNC
AES3
S/PDIF
AES3 x 4TOSADAT
THRU
GRACE DESIGN AT103 906 DAC
WORD CLOCK/
SUPERCLOCK
IN
1M
75
load
1
3
PUSH
2
1
3
PUSH
2
1
3
PUSH
2
1
3
PUSH
2
1
3
PUSH
2
1
3
PUSH
2
1
3
PUSH
2
1
3
PUSH
2
O TSRQ
L
M
G H
D
J
E I
A
C
F
B
K
N
P
U
5.1 DAC OUTPUT This female DB-25 connector supplies 5.1 xed level balanced DAC output
signals, wired to the Tascam DA-88 standard pinout.
5.1 CR OUT #2 This female DB-25 connector carries the balanced analog Control Room
Output #2 signals for connection to a 5.1 speaker system, wired to the Tascam DA-88
standard pinout.
5.1 CR OUT #1 This female DB-25 connector carries the balanced analog Control Room
Output #1 signals for connection to a 5.1 speaker system, wired to the Tascam DA-88
standard pinout.
DC IN This 6-pin male XLR DC input accepts the supplied cable from the m906’s external
power supply.
WORD CLOCK/SUPER CLOCK THRU This BNC connector is used to pass an external Word
Clock or Super Clock reference signal through to another digital device down stream of the
m906.
WORD CLOCK/SUPER CLOCK IN This BNC connector allows the m906 to receive an external
Word Clock or Super Clock source to be used as a reference for locking the m906’s internal
clocks.
WORD CLOCK TERMINATION SWITCH This switch is is used to properly terminate a
connection from an external clock reference source to the m906 Word or Super Clock
input.
ADAT INPUT This Lightpipe connector provides an 8-channel input interface from an ADAT
format digital source. 44.1kHz and 48kHz sample rates are supported.
AES3 STEREO INPUT This female XLR connector is used to receive a stereo AES3 format
digital signal.
(contunued)
C
F
G
H
D
E
I
B
A
