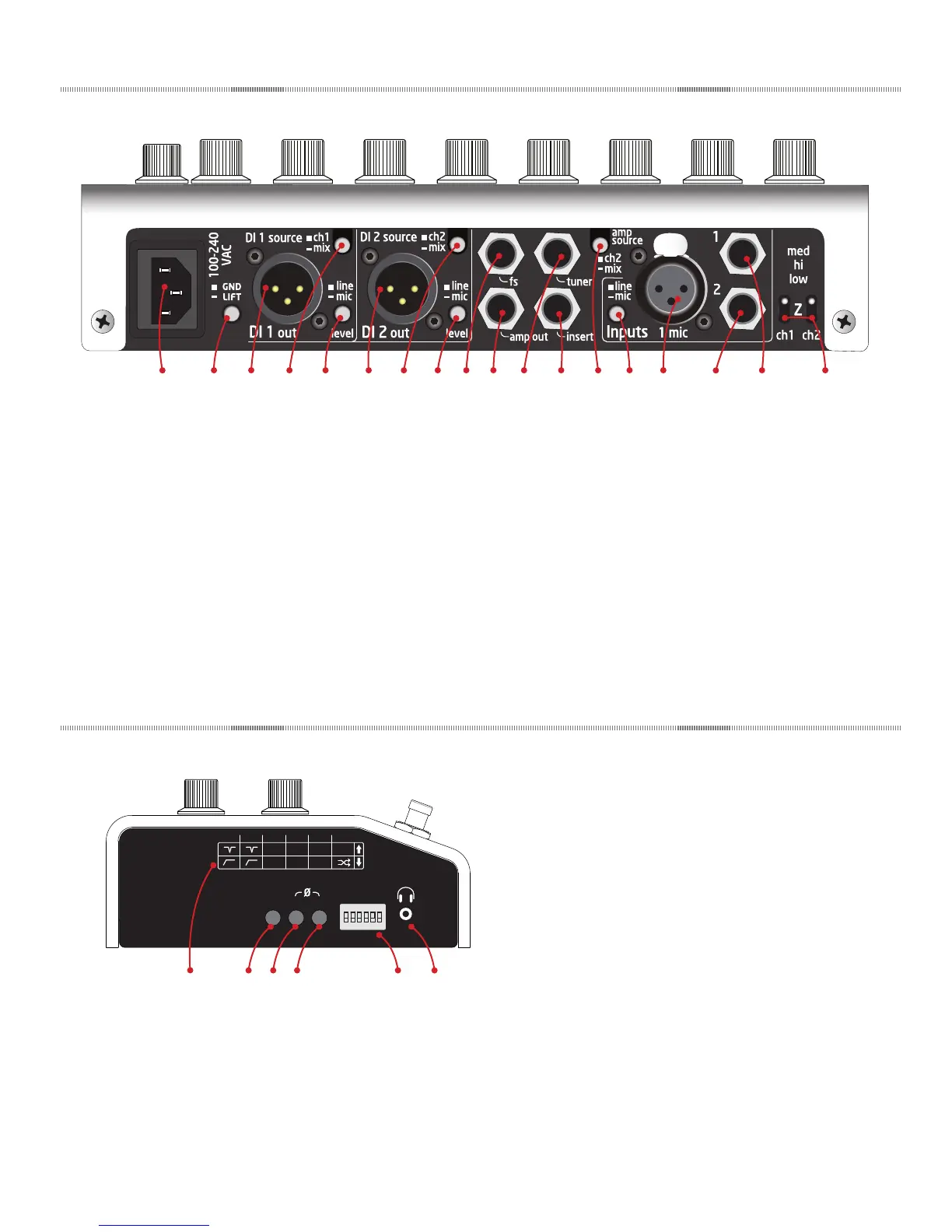

6 Back Panel Controls and Features
PUSH
1 2 3 4 95 6 7 8 10 1211 1413 15 16 17 18
1. Universal 100-240VAC power supply input module
2. Ground lift switch
3. Ch 1 DI output
4. Ch 1 DI output source select
5. Ch 1 DI output line / mic level select
6. Ch 2 DI output
7. Ch 2 DI output source select
8. Ch 2 DI output line / mic level select
9. External Footswitch input
10. Amp Output
11. Tuner Output
12. Eects Insert
13. Amp Source Select switch
14. Ch 1 input mic / line switch
15. Ch 1 mic input
16. Ch 2 line input
17. Ch 1 line input
18. Ch 1 & 2 input impedance select
7 Side Panel Controls and Features
48V ch2ch1
A-B
LO
LO
I
O
HI HI
MODE12VMID 2MID 1CH 2CH 1
61 5432
61 5432
1 2 3 4 5 6
1. Dip Switch location diagram
2. Ch 1 48V pantom power
3. Ch 1 phase reverse
4. Ch 1 phase reverse
5. DIP switch controls
6. 1/8 mini headphone jack
