Graco 104-815 - Page 7


308–167

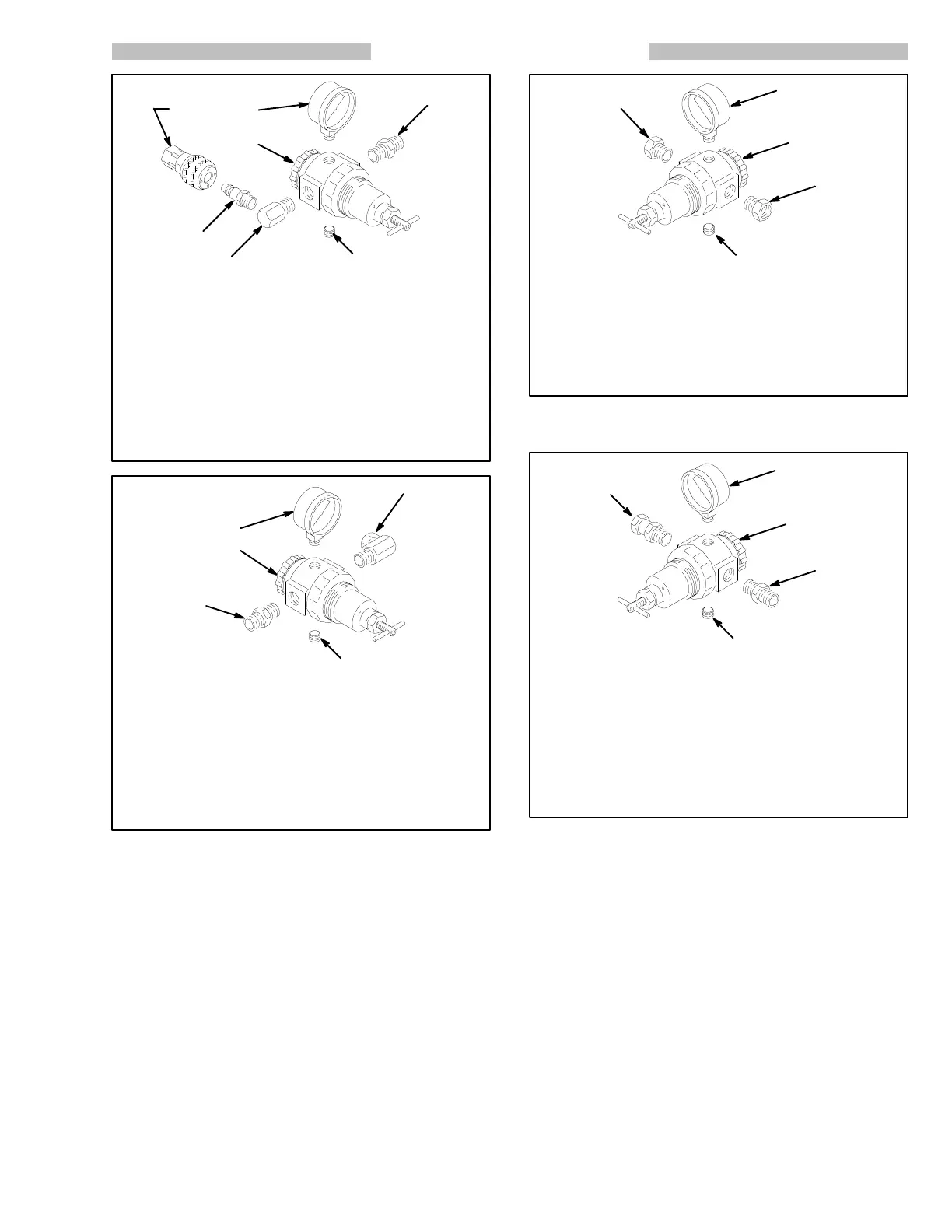

PARTS LIST & DRA WING
Model 206–849
Ref
No. Part No. Description Qty
1 104–266 1/2” AIR REGULATOR 1
2 100–721
PLUG, pipe, 1/4 npt 1
3 100–960
GAUGE, 0–200 psi (0–14 bar) 1
4 159–239
NIPPLE, pipe, 1/2 x 3/8 npt 1
5 166–999 ELBOW
, 1/2 (m) x 1/4 (f) npt 1
6 169–970 FITTING, air line, 1/4 npt(m) 1
7 208–536
COUPLER, air line 1
1
3
47
1/4 npt
INLET
3/8 npt
OUTLET
2
0758
5
6
1
3
5
4
3/8 npt
OUTLET
1/2 npsm
INLET
2
0760
Model 203–716
Ref
No. Part No. Description Qty
1 104–266 1/2” AIR REGULATOR 1
2 100–721
PLUG, pipe, 1/4 npt 1
3 101–180
GAUGE, 0–200 psi (0–14 bar) 1
4 159–239
NIPPLE, pipe, 1/2 x 3/8 npt 1
5 207–438 UNION, 90 swivel, 1/2 npt(m)
x 1/2 npsm(f) swivel 1
1
2
3
4
4
3/8 npt
INLET
3/8 npt
OUTLET
0759
Model 202–156
Ref
No. Part No. Description Qty
1 104–266 1/2” AIR REGULATOR 1
2 100–721
PLUG, pipe, 1/4 npt 1
3 100–960
GAUGE, 0–200 psi (0–14 bar) 1
4 100–081
BUSHING, 1/2(m) x 3/8 (f) npt 1
1
2
3
4
5
1/2 npsm
INLET
3/8 npt
OUTLET
0757
Model 202–858
Ref
No. Part No. Description Qty
1 104–266 1/2” AIR REGULATOR 1
2 100–721
PLUG, pipe, 1/4 npt 1
3 100–960
GAUGE, 0–200 psi (0–14 bar) 1
4 159–239 NIPPLE, pipe, 1/2 x 3/8 npt 1
5 156–684 UNION, swivel, 1/2 npt(m) x
1/2 npsm(f) swivel 1
