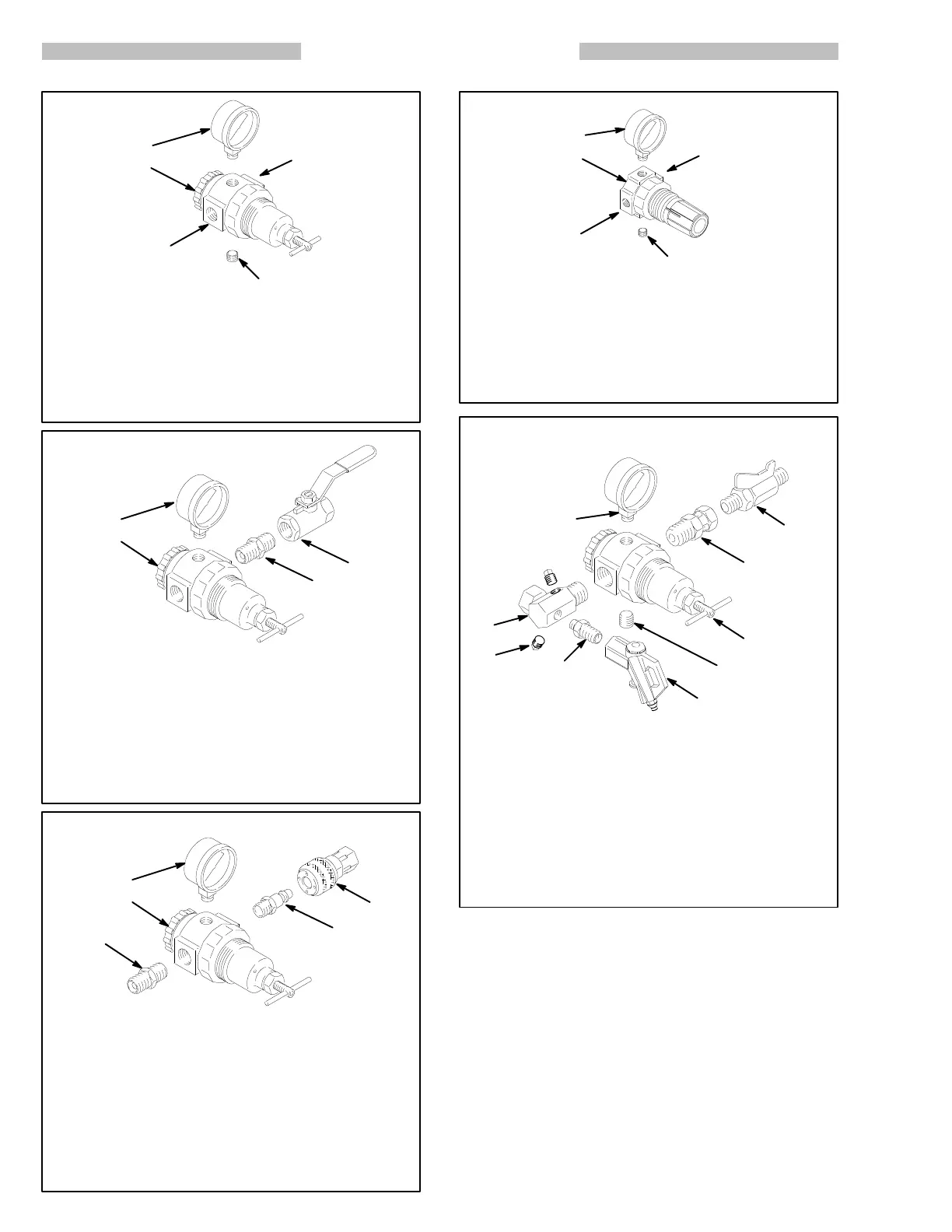

PARTS LIST & DRA WING
Model 109–075
Ref
No. Part No. Description Qty
1 110–234 3/8” AIR REGULATOR 1
2 100–721
PLUG, pipe, 1/4 npt 1
3 100–960
GAUGE, 0–200 psi (0–14 bar) 1
3
3/8 npt
OUTLET
2
0761
3/8 npt
INLET
1
Model 224–512
Ref
No. Part No. Description Qty
1 110–234 3/8” AIR REGULATOR 1
2 100–960
GAUGE, 0–200 psi (0–14 bar) 1
3 110–224
BALL V AL VE, 3/8–18 npt(f) 1
4 156–849
NIPPLE, 3/8–18 npt 1
1
2
4
3/8 npt
INLET
1/2 npsm
OUTLET
0944
3
Model
224–024
Ref
No. Part No. Description Qty
1 110–234 3/8” AIR REGULATOR 1
2 100–960
GAUGE, 0–200 psi (0–14 bar) 1
3 156–849
NIPPLE, 3/8–18 npt 1
4 169–970 FITTING, air line, 1/4 npt(m) 1
5 208–536
COUPLER, air line 1
1
2
3/8 npt
OUTLET
1/4 npt
INLET
4
5
3
Model 1 10–147
Ref
No. Part No. Description Qty
1 110–318 1/4” AIR REGULATOR 1
2 100–403
PLUG, pipe, 1/8 npt 1
3 110–319
GAUGE, 0–200 psi (0–14 bar) 1
3
1/4 npt
OUTLET
2
0762
1/4 npt
INLET
1
Model 206–237
Ref
No. Part No. Description Qty
1 104–267 1/2” AIR REGULATOR 1
2 100–721
PLUG, pipe, 1/4 npt 1
3 101–180
GAUGE, 0–200 psi (0–14 bar) 1
4 208–393 BALL V AL VE, 3/8–18 npt 1
5 158–256 UNION, swivel, 1
6 162–376 MANIFOLD, 1/2 npt(f) swivel, x
1/2 npt(m), two 1/8–27 npt ports 1
7 100–403
PLUG, 1/8–27 npt 2
8 151–519
NIPPLE, 1/4–18 x 1/8–27 npt 1
9 208–625 AIR BLOW GUN 1
4
3/8 npt
OUTLET
1/2 npsm
INLET
2
0943
1
9
7
6
3
5
8
