Graco 203876 Instructions

Dimensions
306518ZAE 15

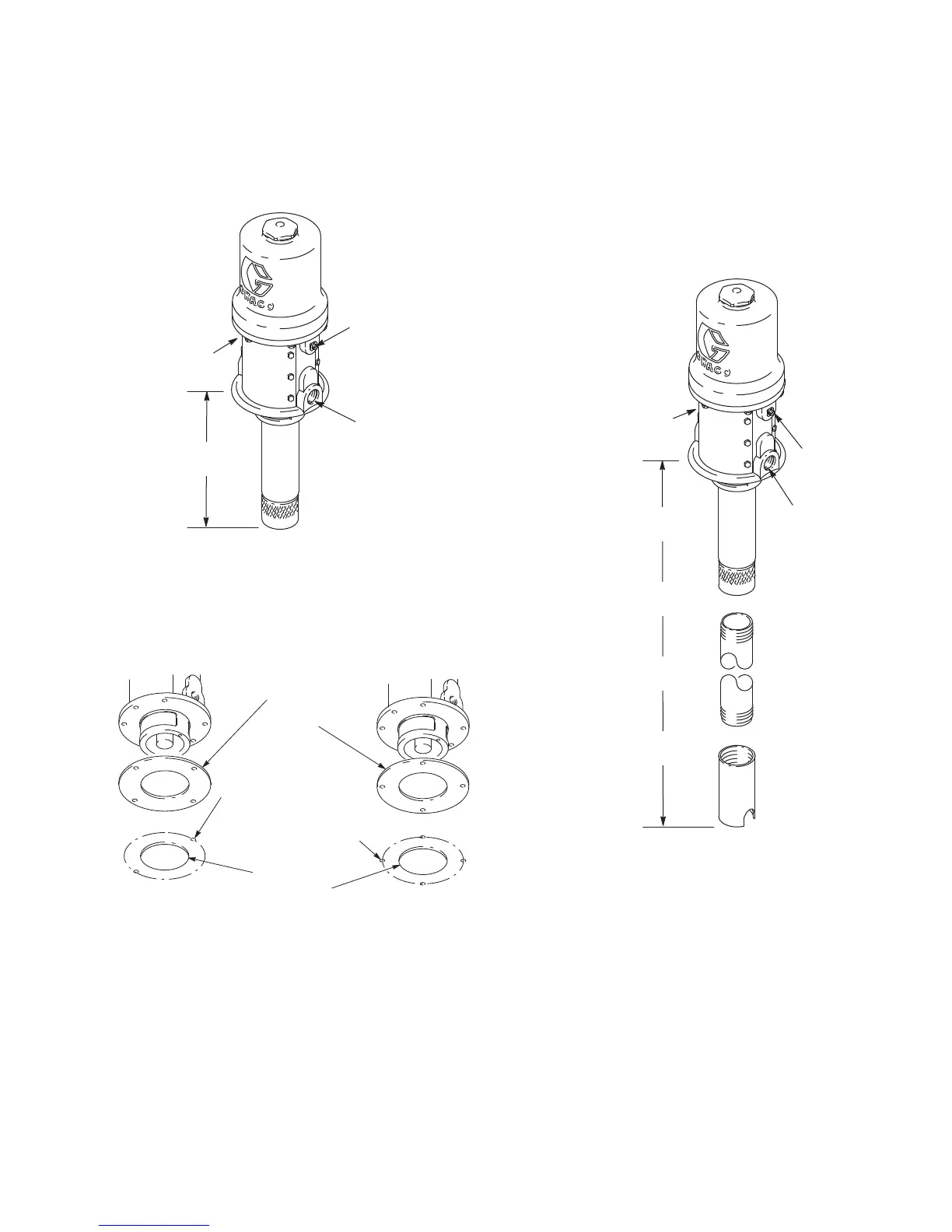

Dimensions
Mounting Hole Layout
3/8 in.
npt(f) air
inlet
Overall Length: 20.7 in. (526 mm)
8.9 in.
(226 mm)
grounding
screw
1/2 in. npt(f)
fluid outlet
Model 203876, Series N, Overall length 20.7 in (526 mm)
nrettaP gnitnuoM eloH-4nrettaP gnitnuoM eloH-2
Two 0.265-in. (6.73
mm) diameter holes
on 5-in. (127 mm) bolt
circle
Four 0.265-in. (6.73
mm) diameter holes on
5-in. (127 mm) bolt
circle
Gasket,
Part No.
161023
3-in. (76.2 mm)
diameter hole
3/8 in.
npt(f) air
inlet
grounding
screw
Model 203872
26.3 in. (668 mm)
Model 203857
33.8 in. (859 mm)
Model 204254
38.1 in. (968 mm)
Model 222087
48.1 in. (1222 mm)
1/2 in.
npt(f)
fluid
outlet
Model 203857, Series N, Overall length 45.6 in (1158 mm)
Model 203872, Series N, Overall length 38.1 in (968 mm)
Model 204254, Series S, Overall length 49.9 in (1267 mm)
Model 222087, Series E, Overall length 59.9 in (1521 mm)
