Dimensions
Installation and Operation 31

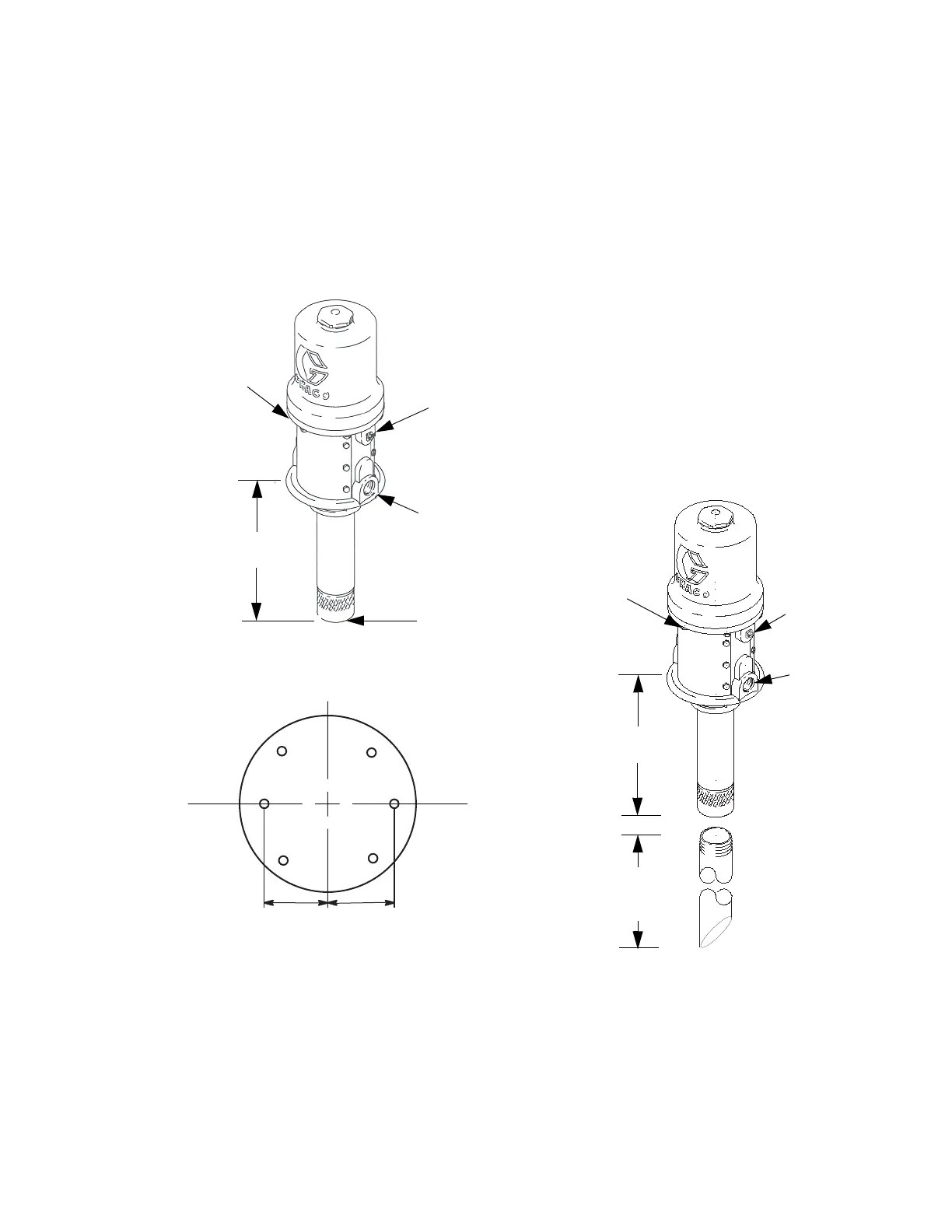

Dimensions
Fire-Ball 225
grounding
screw
1/2 in. npt(f)
fluid outlet
3/8 in. npt(f)
air inlet
8.9 in.
(20 cm)
40.68 in. (103.33
cm) drop tube is
cut to length
Model 246775
Universal
Overall Length: 18.9 in. (48 cm)
Model 248097
Variable length
Overall Length: 59.2 in. (150.4 cm)
Model 246775
Universal
1/2 in. npt(f)
fluid outlet
3/8 in. npt(f)
air inlet
8.9 in.
(20 cm)
Grounding
screw
05752
1-1/2 in. npt
4.250 in. (10.8 cm) bolt circle
0.281 in. (7.1 mm) diameter clearance holes
Model 248097
Variable length
Mounting Hole Layout
