Graco 203876 - Fire-Ball 300

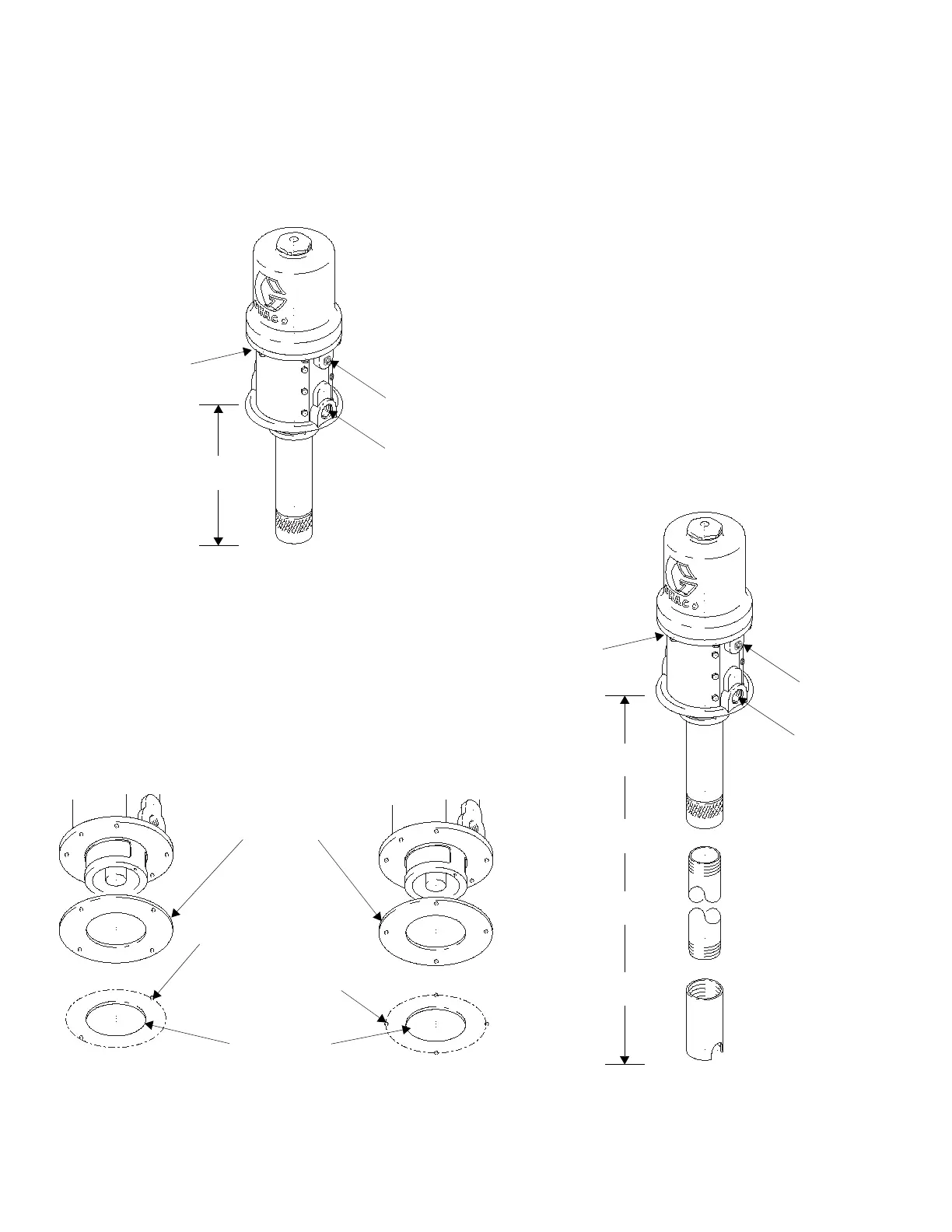

Dimensions
32 Installation and Operation
Fire-Ball 300
M
o
d
e
l
203857
55-gal. (400 lb) drum size, cover mount
Overall Length: 45.6 in. (115.8 cm)
Model 203872
16-gal. (120 lb) drum size, cover mount
Overall Length: 38.1 in. (96.8 cm)
Model 204254
55-gal. (400 lb) drum size, bung mount
Overall Length: 49.9 in. (126.7 cm)
Model 222087
275-gal. tank size, bung mount
Overall Length: 59.9 in. (152.1 cm)
Model 203876
Universal
Mounting Hole Layout
3/8 in. npt(f)
air inlet
3/8 in. npt(f)
air inlet
8.9 in.
(22.6 cm)
grounding
screw
1/2 in. npt(f)
fluid outlet
grounding
screw
1/2 in. npt(f)
fluid outlet
Model 203857
33.8 in. (85.9 cm)
Model 203872
26.3in. 66.9 cm)
Model 204254
38.1in. (96.8 cm)
Model 222087
48.1 in. (122.2 cm)
05754
04127
05750
2-Hole
Mounting Pattern
4-Hole
Mounting Pattern
Gasket
Part No. 161023
Two 0.265-in. (.673 cm)
diameter holes on 5-in.
(12.7 cm) bolt circle
Four 0.265-in. (.673 cm)
diameter holes on 5-in.
(12.7 cm) bolt circle
3-in. (7.62 cm)
diameter hole
Overall Length: 20.7 in (52.6 cm)
