Graco 205394 - Mounting Holes

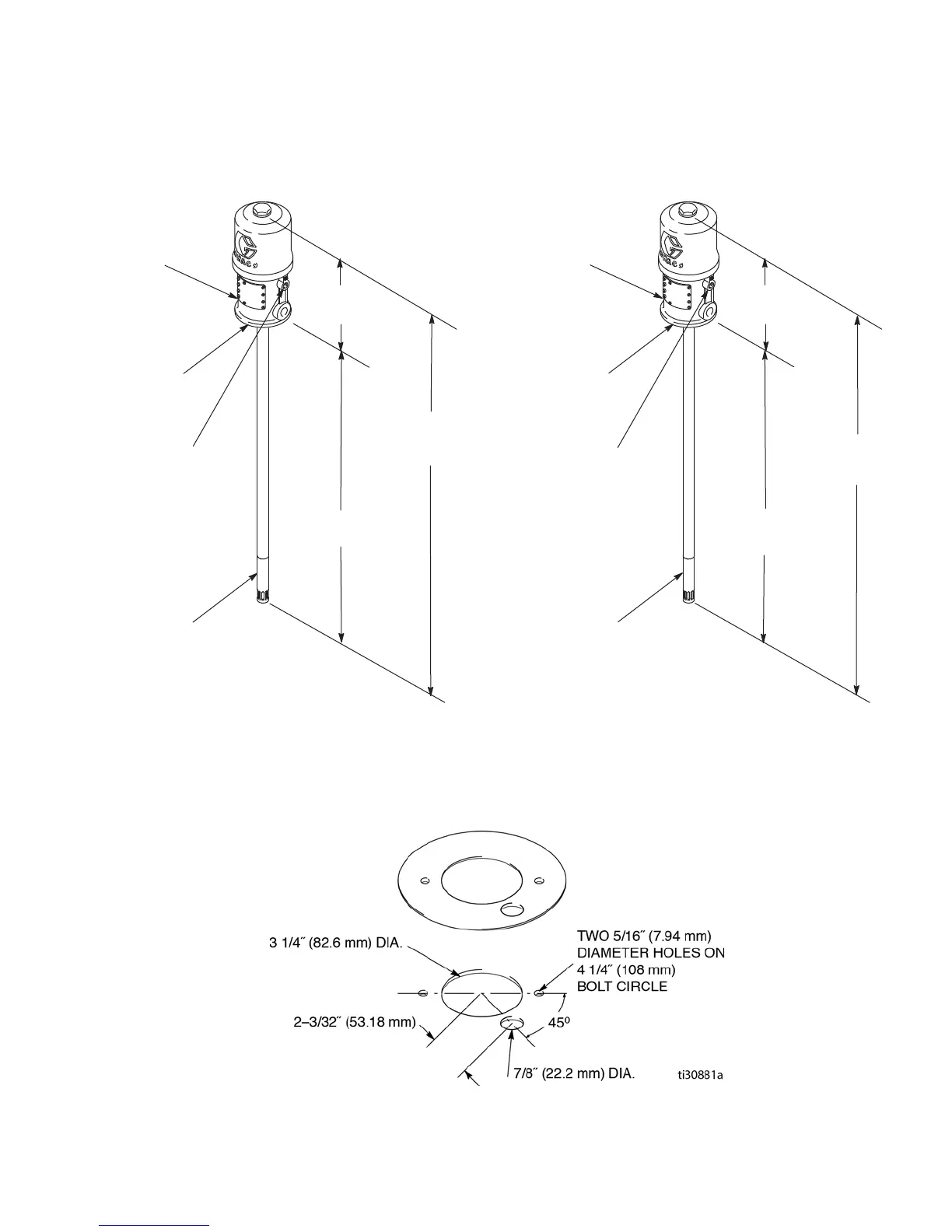

Dimensions
306674W 17
Dimensions
Mounting Holes
Model 205395, Series N
Weight 36 lb (16 kg)
Model 205394, Series E
Weight 36 lb (16 kg)
Primin
g Piston
6–1/2”
(165.1 mm)
Diameter
3/8 npt
Fluid
Outlet
41–1/4”
26–11/16”
(1048 mm)
(678 mm)
14–9/16”
(369.9 mm)
Priming Piston
6–1/2”
(165.1 mm)
Diameter
3/8 npt
Fluid
Outlet
48–3/16”
33–5/8”
(1224 mm)
(854.1 mm)
14–9/16”
(369.9 mm)
1/2 npt(f)
Air Inlet
1/2 npt(f)
Air Inlet
