Fuse Replacement
20 311990B
Fuse Replacement
If the fuse is blown, check for:
• Pinched or shorted wires
• A defective motor (see Spin Test, page 15)
• A locked or frozen pump
Correct defective condition before replacing fuse.
Removal
1. Relieve pressure, page 6. Disconnect power cord
from outlet.
2. Remove kick stand (66) on 210
ES.
3. Remove two screws (5) and toolbox (3).
4. Remove two screws (11) and front cover (32).
Remove screw (13) and shroud (12) (see illustra-
tion, page15).
5. Remove fuse from control board.
Installation
1. Install Fuse 119277 on control board.
2. Install shroud (12) with screw (13). Install front cover
(32) with two screws (11). (see illustration, page 15).
3. Install toolbox (3) with two screws (5).
4. Install kick stand (66) on 210
ES.

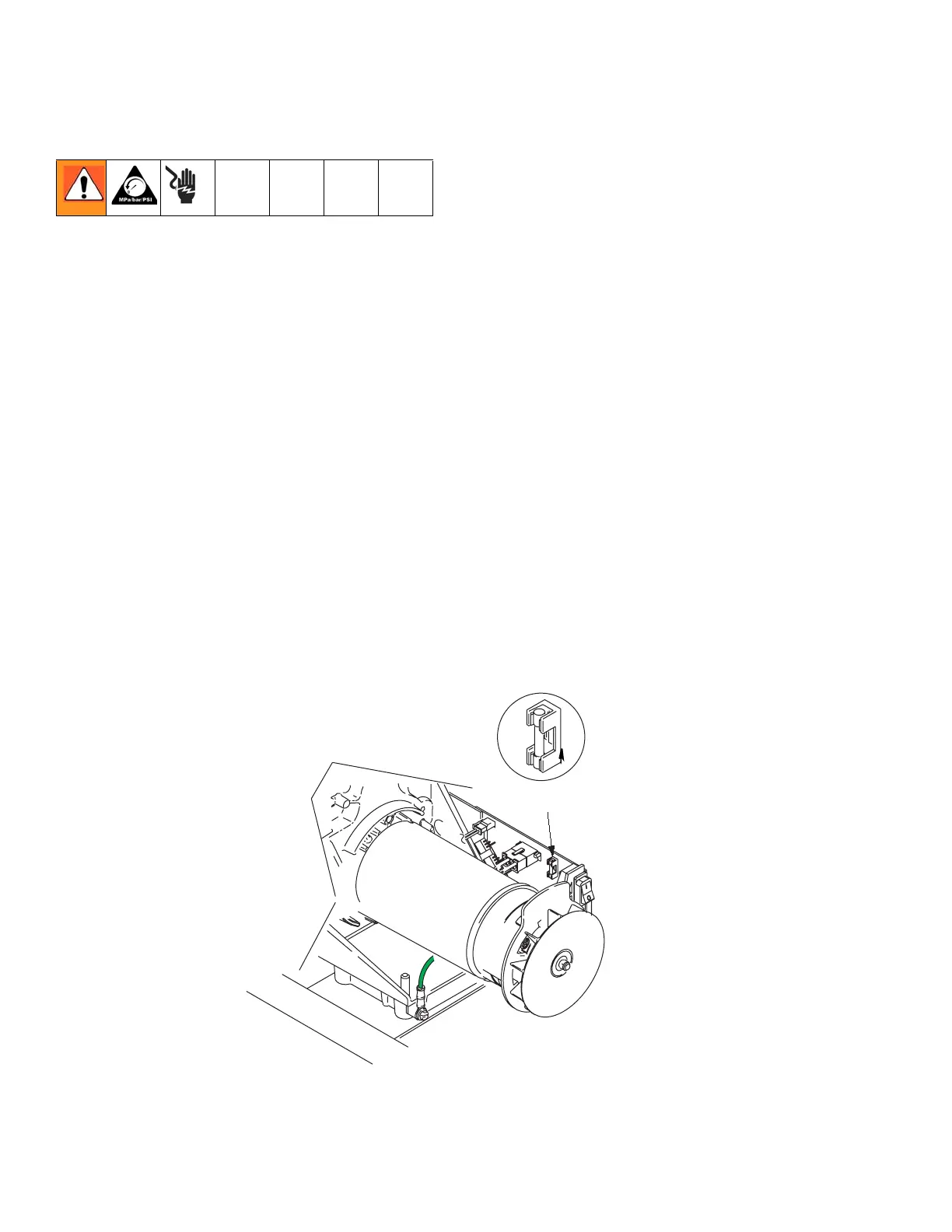

Replaceable Fuse
ti9134a
