Power Cord Replacement
311990B 25
Power Cord Replacement
See Wiring Diagram, page 27.
Removal
1. Remove control board, Control Board Replace-
ment, Removal, page 18.
2. Remove green ground screw (20) and disconnect
green ground wire (G) from frame.
Installation
1. Connect green ground wire (G) to frame with green
ground screw (20). Be sure green ground wire ter-
minal faces up or wires could get caught in shroud.
2. Install control board, Control Board Replacement,
Installation, page 19.

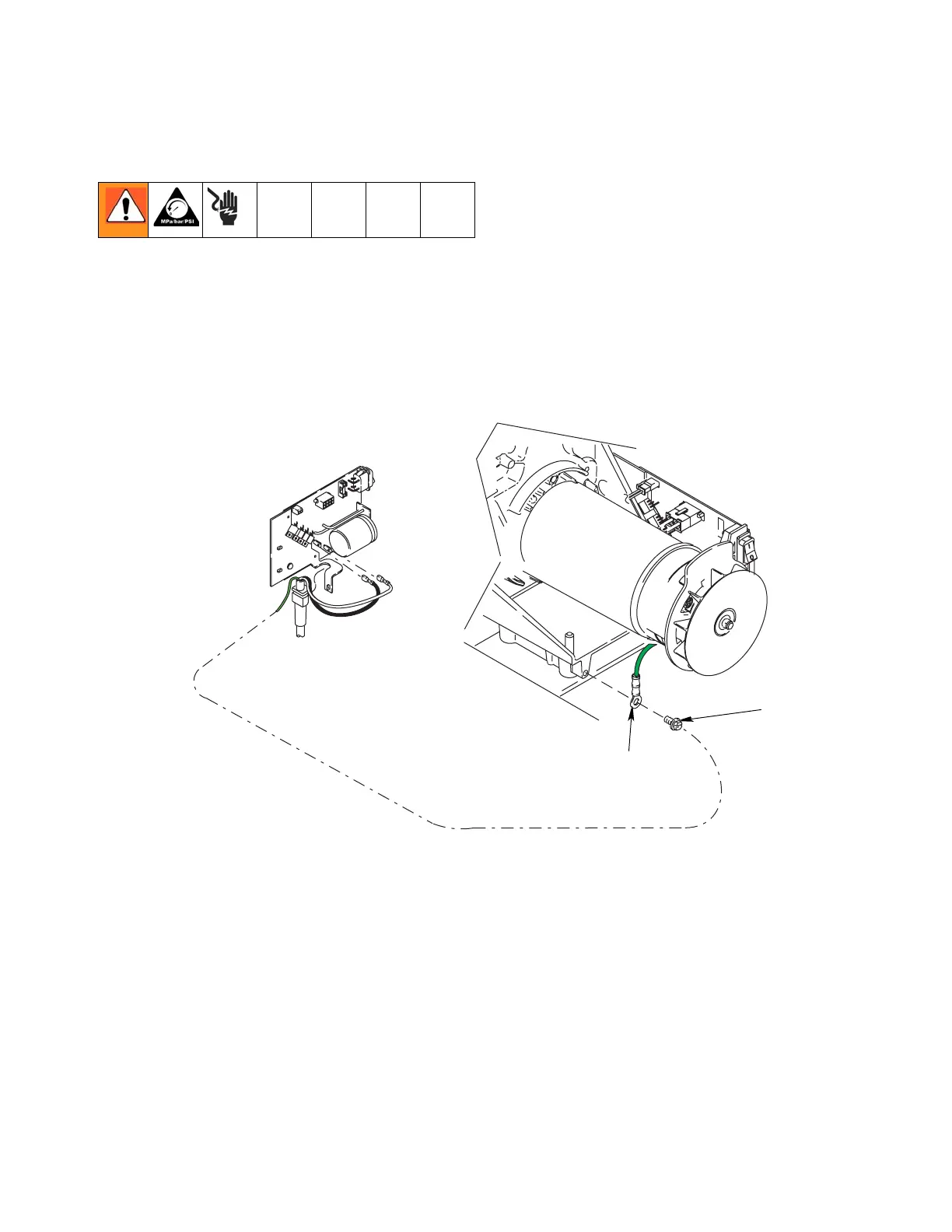

G
