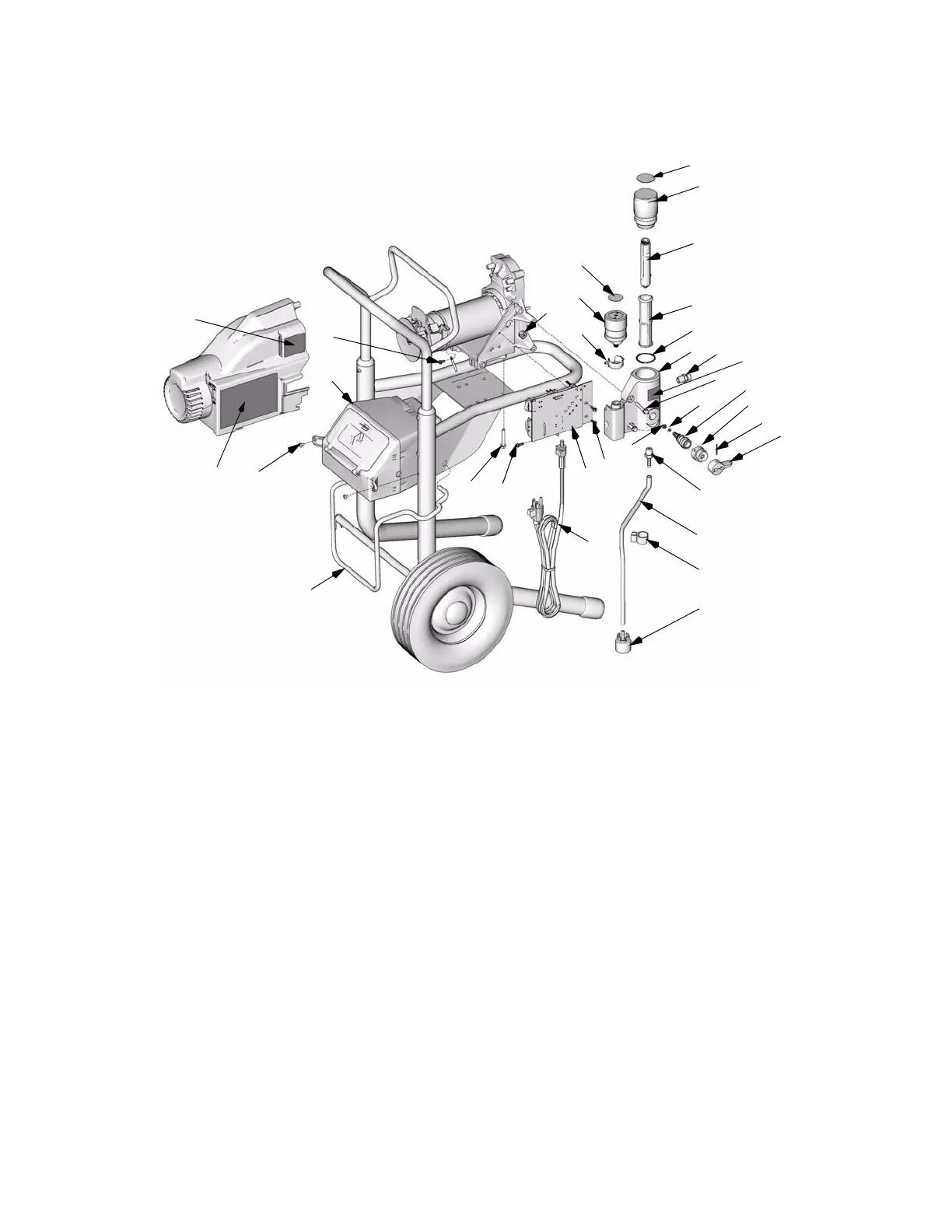

Graco 210ES - Parts Drawing

Parts Drawing
30 311990B
Parts Drawing
Parts List
50
67
49
51
46
47
45
4
35
52
53
54
55
43
22
17
21
11
18
11
66
98
3
4
44
23
19
44b
44a
ti9159a
20
56
72
71
48
Ref Part Description Qty
3 288503 TOOL BOX, assembly 1
4 117493 SCREW, mach, hex washer hd 10
11 117501 SCREW, mach, slot hex wash hd 7
17 255169 CONTROL, pressure, 120V
;
includes 21, 22, 23
1
18 249052‡
CONTROL, board 1
19 15J743 CORD, power, lighted, cart unit 1
20 115498 SCREW, mach, slot hex wash hd 1
21 15E794 CAP, wire, control, pressure 1
22 15F399 LABEL, pressure control knob 1
23 115756 BUSHING, universal 1
43 15J745 MANIFOLD, Filter, 190/210 ES 1
44 235014 VALVE, drain; includes 44a, 44b 1
44a 111699 GASKET, seat 1
44b 187615 SEAT, valve 1
45 224807 BASE, valve 1
46 187625 HANDLE, valve, drain 1
47 111600 PIN, grooved 1
48 195811 LABEL, instruction 1
49 15K092 TUBE, drain 1
50 244035 DEFLECTOR, barbed 1
51 M70809 FITTING, barbed, hose 1
52 104361 O-RING 1
53 243080 FILTER, fluid 1
54 15E288 INSERT, manifold 1
55 15E289 CAP, filter 1
56 195707 LABEL, identification 1
66 ROD, kickstand
-190 ES 0
15J117 210 ES 1
67 195400 CLIP, spring 1
71Y 15K359
LABEL, 190-210 261825 261830 war 1
72Y 195833 LABEL, warning 1
98 108795 SCREW, mach, pnh 2
Y Warning labels are available free of charge
‡ 119277 Fuse replacement
