Graco 231-043 - Page 39

39
307–785

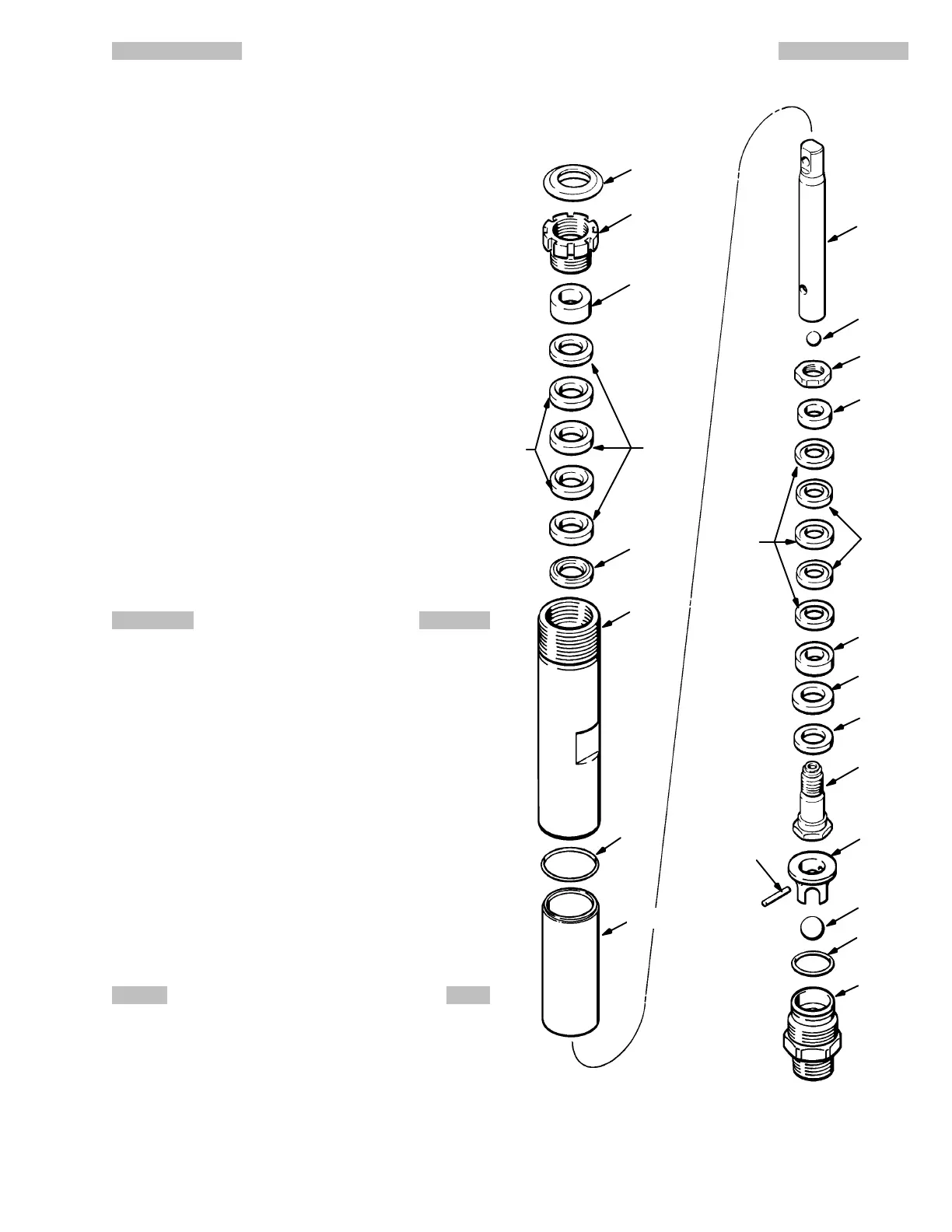

PARTS DRA WING & LIST – DISPLACEMENT PUMP
Model 222–580, Series A
Sleeved Displacement Pump
Includes items 202 to 225
REF
NO. PART NO. DESCRIPTION QTY
202 110–165* P
ACKING, o–ring,  2
203 107–093*
SEAL, u–cup, polyurethane 1
204 105–445* BALL; sst 1
205 179–810 PLUG 1
206 178–939* V–P
ACKING, leather 2
207 178–940* V–P
ACKING, leather 2
208 178–942*
GLAND, male 1
209 178–943*
GLAND, female 1
210 178–944*
GLAND, male 1
211
178–945 NUT , hex, retaining 1
212 178–964* V–PACKING, plastic 3
213 178–965* V–PACKING, plastic 3
214 181–338* WASHER, backup 1
215 178–969*
GLAND, female 1
216
179–809 NUT , packing 1
218
185–213 SLEEVE, cylinder 1
219 185–21
1 CYLINDER 1
220
185–214 GUIDE, ball 1
221 178–938*
PIN, ball stop 1
222
218–036 VAL VE, piston 1
223
222–437 VAL VE, intake 1
224
222–438 ROD, piston 1
225 105–444*
BALL 1
*Supplied in repair kit 222–588.
REPAIR KIT 222–588
Must be purchased separately .
REF
NO. DESCRIPTION QTY
202 PACKING,
o–ring,  1
203
SEAL, u–cup, polyurethane 1
204 BALL; sst 1
206 V–P
ACKING, leather 2
207 V–P
ACKING, leather 2
208
GLAND, male 1
209
GLAND, female 1
210
GLAND, male 1
212 V–PACKING, plastic 3
213 V–PACKING, plastic 3
214 WASHER, backup 1
215
GLAND, female 1
221
PIN, ball stop 1
225
BALL 1
SLEEVE REMOVAL TOOL
Must be purchased separately .
NOTE: Be sure you order the correct tool for your pump.
222–586 Sleeve Removal T ool, for pump 222–580.
202*
*207
214*
203*
205
216
209*
213*
208*
219
218
224
225*
211
210*
206*
215*
222
220
204*
202*
223
*221
*212
PTFE
PTFE
