41
307–785
PARTS LIST – SPRAYER
Ultra 1000 Sprayers with Upright Cart
Model 231–034 Series C
Includes
items 1–90
Basic Sprayer
Model 231–043
Includes
items 1 – 90, 100 – 102
Complete Sprayer
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
1 065–099 CONDUIT
,
electrical
s
pecify
length when ordering
0.8 ft
8 100–057 SCREW,
hex. head no.
5/16–18 x .25”
7
9 100–069
BALL,
steel; 1/4” dia.
1
10
100–188
NUT
,
heavy
hex; 5/16–18 unc–2a
7
11 100–214
LOCKWASHER,
spring; 5/16”
7
12 100–322 LOCKWASHER,
external
shakeproof;
7/16”
1
13 100–643 SCREW,
socket
head
no. 1/4–20 x 1.00”
2
14 101–242 RING,
retaining 2
16
100–644
SCREW,
socket head,
no. 1/4–20 x 0.75”
2
17 101–754 PLUG,
pipe,
refer
to page 42
1
19 104–811 HUBCAP 2
20 105–510
LOCKWASHER, spring,
1/4”
6
21 106–062 WHEEL,
semi–pneumatic 2
22
106–075 SCREW,
mach, ovhd, thd frmg;
no. 6–24 x 1/2”, type “c”
4
23 106–115 LOCKWASHER,
spring, 3/8”
4
24 107–209 SCREW,
mach, filh; no. 8–32 x1”
4
25 107–210 CAPSCREW,
sch; 3/8–16
unc–3a x 1–1/2”
4
26 107–218
CAPSCREW
,
sch;
1/4–20 x 2.75”
2
27 107–258 TIP,
grip,
refer
to page 42
1
29 107–447 SEAL,
conduit
,
refer
to page 42
2
31 108–460
CONNECTOR, conduit,
45
1
32 108–662 NUT,
retainer 2
33 108–691
PLUG, tubing
2
34 108–865
SCREW
,
mach;
pan head;
no. 8 x 3/8”
10
35 109–032 SCREW,
mach, pnh
4
36 110–037 SCREW,
mach,
pnhd
4
37 110–243 RING,
retaining 2
38
150–513
NUT
,
jam;
7/16”
1
39 155–665 UNION,
adapter; 3/8” npsm
swivel x 3/8 npt(m)
1
40 162–453 NIPPLE,
1/4
npt(m) x 1/4 npsm
2
42 176–817 SPRING,
retaining
1
43
176–818 PIN, straight,
hdls;
0.3125” dia x 1.023”
1
44 177–762* LABEL,
W
ARNING 1
45 178–034*
TAG,
W
ARNING 1
46 178–934*
LABEL,
WARNING 1
47 178–941 NUT,
hex
1
48 179–777 BUTTON,
snap
2
49 179–899 COVER,
housing 1
50 179–945 ADAPTER,
elbow,
special;
1/4–18 npt (m x f)
1
51 179–961 GEAR REDUCER 1
52 180–041
PIN, straight
refer
to page 42
1
53 181–072
STRAINER 1
55 181–608 LABEL,
identification
1
56 181–639 LABEL,
ID,
motor cover
, left
1
57 181–640 LABEL,
ID,
motor cover
, right
1
58 181–641 LABEL,
ID,
front cover
1
59 223–095 SHIELD,
motor
includes
items 46, 56, 57
1
60 183–035 BRACKET 2
61 183–037 HANGER,
pail
1
62 183–194 SLEEVE 2
63 183–995 COVER,
pressure control
1
64
183–365 BRACKET,
mounting
1
65 206–994 THROAT SEAL LIQUID,
8
OZ
1
66 214–570 FLUID
FIL
TER
Includes
one of item 40
see manual 307–273 for parts
1
67 218–032 DRIVE HOUSING
includes
replaceable items 67a and 67b
1
67a 178–967 .WASHER,
silver–colored 1
67b 107–089 .WASHER,
bronze–colored 1
68
218–034
ROD, CONNECTING 1
69
218–035 HOUSING,
BEARING
1
70 218–083
HOSE, grounded,
nylon;1/4” ID
cpld 1/4 npsm (f); 29” (715 mm);
spring guards both ends
1
71 218–405
BOARD, CIRCUIT;
1
15V 1
72 220–285 CAP,
for
secondary outlet
1
73 222–388**
MOTOR, ELECTRIC
includes
replaceable items 73a to 73d
(which are shown on page 43)
and one each of items 10 and 1
1
1
73a 107–267 .TERMINAL,
female 2
73b 107–504 .TERMINAL,
female
1
73c
596–421
.TERMINAL,
wire, female, snap–on
1
73d 176–250* .LABEL, WARNING 1
74
222–198
VALVE,
PRESSURE DRAIN
1
75 220–455 PRESSURE CONTROL ASSY
refer
to page 42 for parts
1
76 222–580
DISPLACEMENT PUMP
refer
to page 39 for parts
1
77 222–554 HANDLE,
cart
1
78 222–555 FRAME,
sprayer
includes replaceable items 58 & 76
1
85 185–384 BRACKET 2
86 185–386 TUBE,
suction
1
87 107–194 WASHER 4
89 183–350 WASHER 2
90 110–240 CLIP 2
100 210–541 HOSE,
grounded, nylon; 1/4” ID;
cpld 1/4 npsm(f); 50 ft (15m)
spring guards both ends
1
101 214–701 HOSE,
grounded,
nylon; 3/16” ID;
cpld 1/4 npsm(f); 3 ft (.9 m);
spring guards both ends
1
102 220–955 SPRAY GUN
see
manual 307–614 for parts
1
*Extra
warning tags and labels available free.
**Motor Brush Repair Kit 220–853 is available.
Order separately
.

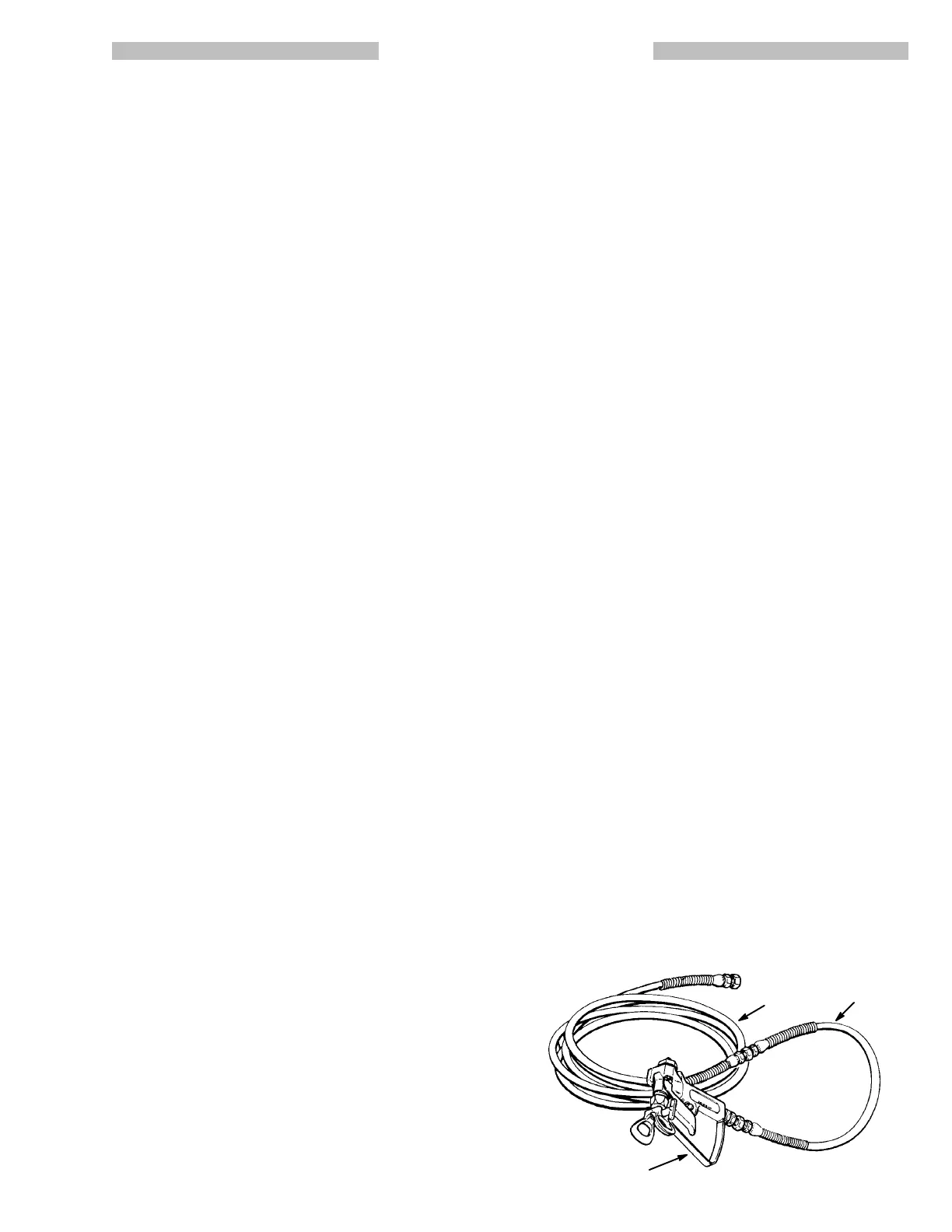

100 101
102
