Graco 233500 - Dimensions

309303 25

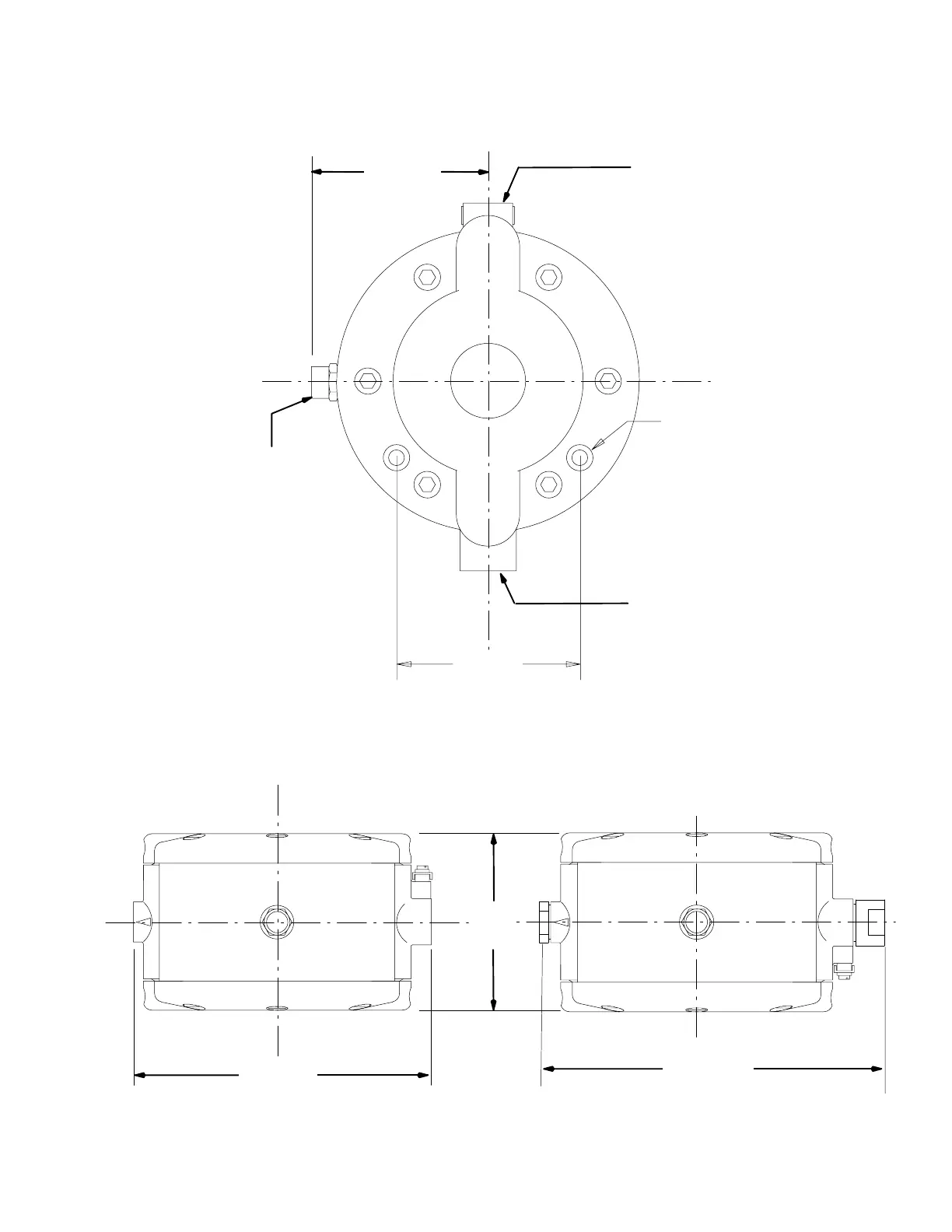

Dimensions
BOTTOM VIEW
SIDE VIEW
Aluminum
Two 0.35 in. (9 mm) diameter
holes, for mounting pump
4.1 in.
(104 mm)
4.53 in.
(115 mm)
3/8 npt or 3/8 BSPP Fluid Outlet
3/4 npt or M26 x 1.5
Fluid Inlet
1/4 npt or 1/4 BSPP Air Inlet
4.88 in.
(124 mm)
8.2 in.
(208 mm)
ti1037a
TI3265A
SIDE VIEW
SST
9.1 in.
(231.5 mm)
