Parts Drawings and Lists

8729B

7 or 8

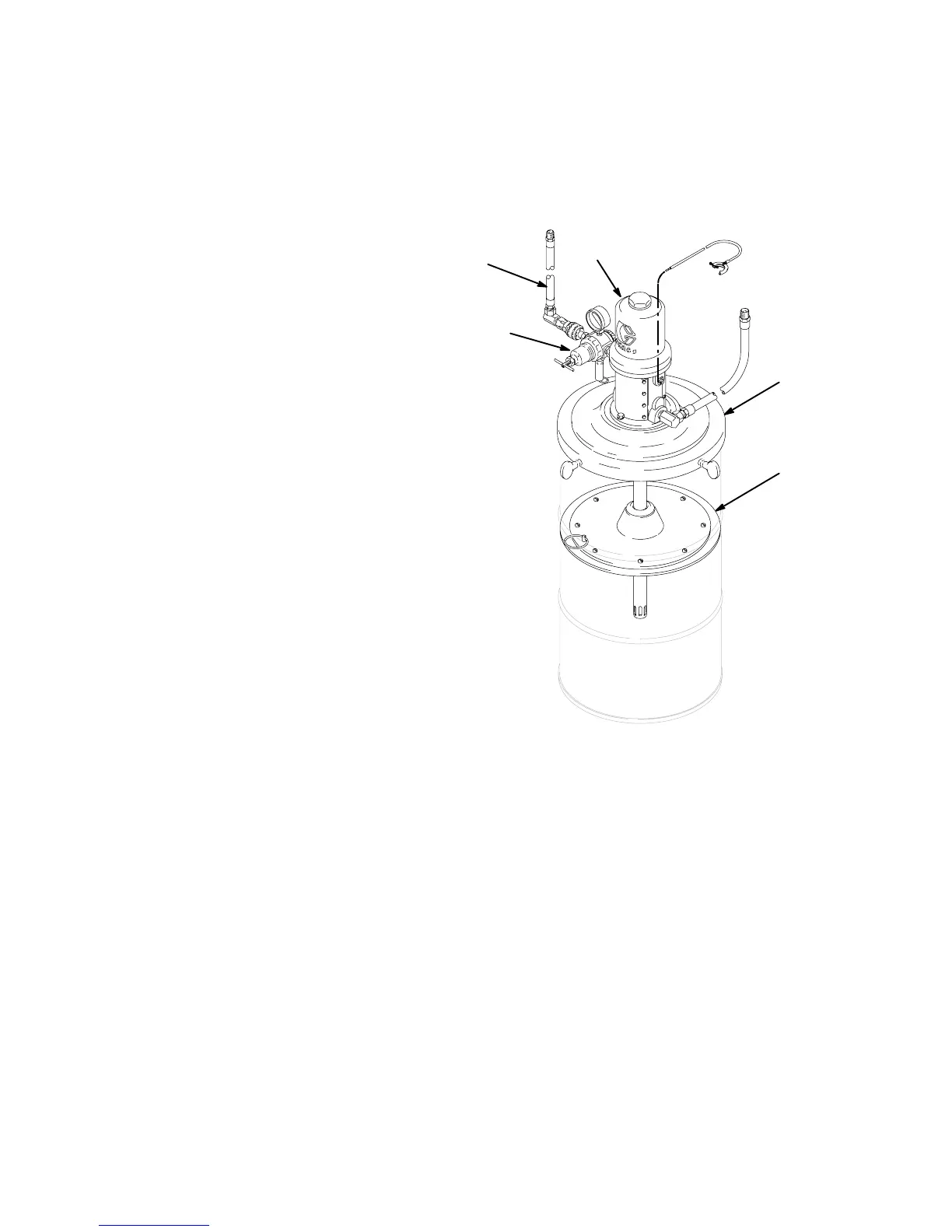

50:1 Fire-Ball 300, 120-lb drum size

Model 225014, Includes items 1 to 4

Ref

No. Part No. Description Qty.

1 239887 PUMP, 50:1 Ratio Fire-Ball 300;

See 308883 for parts 1

2 222072 HOSE AND FITTING KIT;

See parts on page 14 1

3 204574 COVER; See 306345 for parts 1

4 220654 FOLLOW PLATE;

See 306345 for parts 1

50:1 Fire–Ball 425, 120-lb drum size

Model 223108, Includes items 1 to 4

Ref

No. Part No. Description Qty.

1 205394 PUMP, 50:1 Ratio Fire–Ball 425;

See 306674 for parts 1

2 222076 HOSE AND FITTING KIT;

See parts on page 14 1

3 204574 COVER; See 306345 for parts 1

4 223344 FOLLOW PLATE;

See 306345 for parts 1

Fire-Ball 300

pump shown

75:1 Fire–Ball 425, 120-lb drum size

Model 244635, Includes items 1 to 4

Ref

No. Part No. Description Qty.

1 239729 PUMP, 75:1 Ratio Fire–Ball 425;

See 308777 for parts 1

2 222076 HOSE AND FITTING KIT;

See parts on page 14 1

3 204574 COVER; See 306345 for parts 1

4 223344 FOLLOW PLATE;

See 306345 for parts 1
