Graco 244846 Instruction Manual

13307880
Parts Drawings and Lists
50:1 Fire-Ball 300, 400-lb drum size
Model 222071, Includes items 1 to 5
Ref
No. Part No. Description Qty.
1 239888 PUMP, 50:1 Ratio Fire-Ball 300;
See 308883 for parts 1
2 222072 HOSE AND FITTING KIT;
See parts on page 14 1
3 207366 COVER; See 306345 for parts 1
4 223845 FOLLOW PLATE;
See 306345 for parts 1
5 207361 HOLD-DOWN KIT;
See 306345 for parts 1
50:1 Fire–Ball 425, 400-lb drum size
Model 222075, Includes items 1 to 5
Ref
No. Part No. Description Qty.
1 205395 PUMP, 50:1 Ratio Fire–Ball 425;
See 306674 for parts 1
2 222076 HOSE AND FITTING KIT;
See parts on page 14 1
3 207366 COVER; See 306345 for parts 1
4 223846 FOLLOW PLATE;
See 306345 for parts 1
5 207361 HOLD-DOWN KIT;
See 306345 for parts 1
2
5

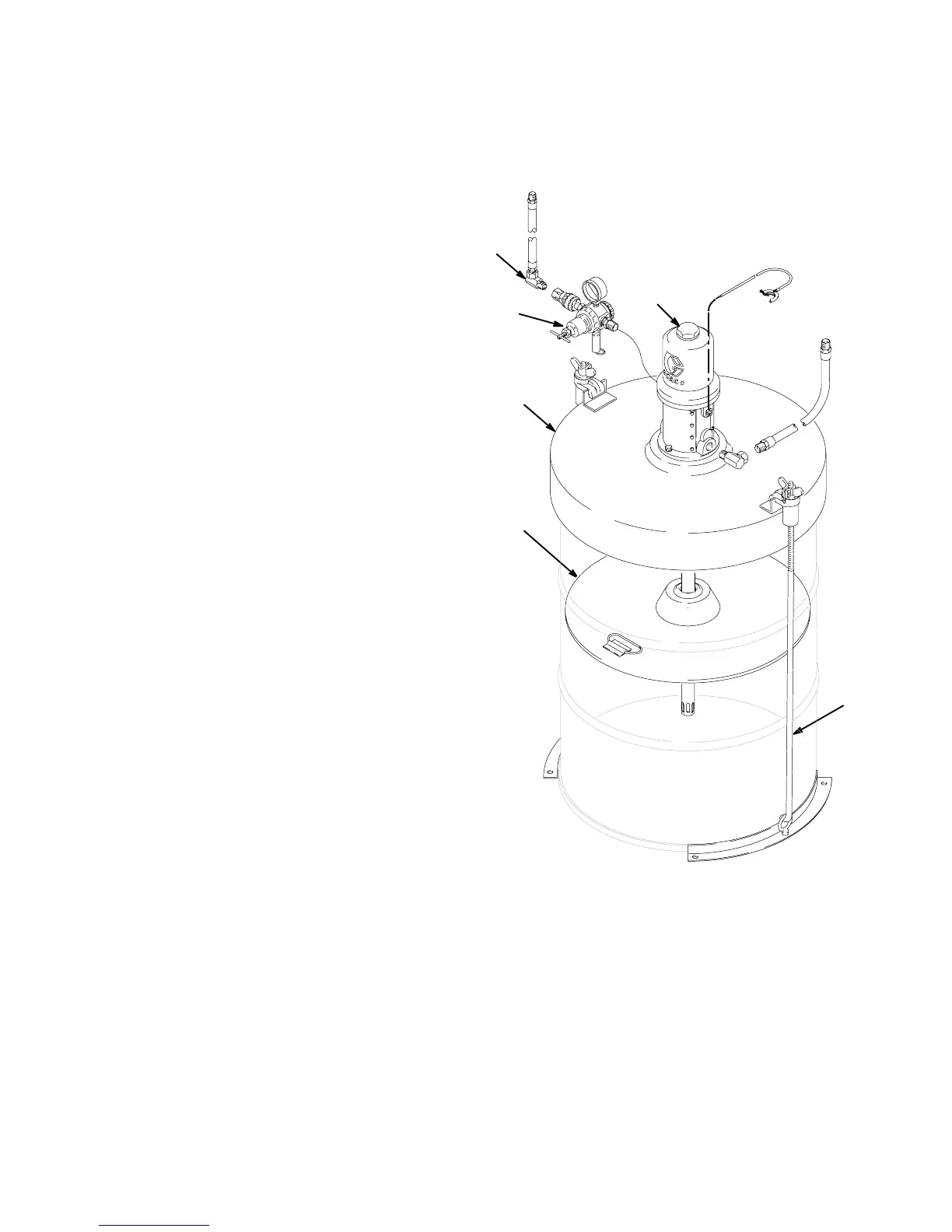

Fire-Ball 300
pump shown
1
3
4
6 or 8
8728B
75:1 Fire–Ball 425, 400-lb drum size
Model 243818, Includes items 1 to 5
Ref
No. Part No. Description Qty.
1 239730 PUMP, 75:1 Ratio Fire–Ball 425;
See 308777 for parts 1
2 222076 HOSE AND FITTING KIT;
See parts on page 14 1
3 207366 COVER; See 306345 for parts 1
4 223846 FOLLOW PLATE;
See 306345 for parts 1
5 207361 HOLD-DOWN KIT;
See 306345 for parts 1
