Dimensions
Installatio
n and Operation
31

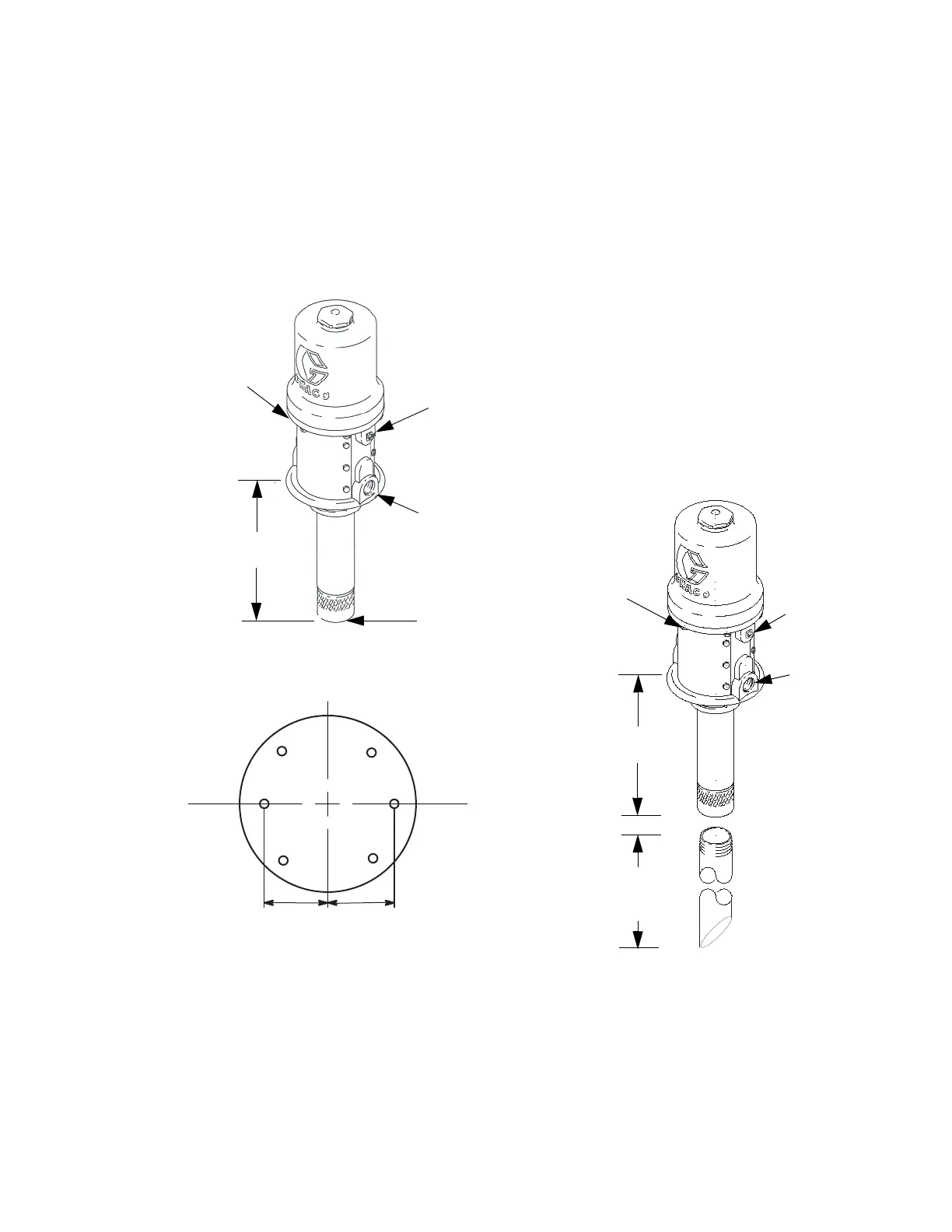

Dimensions
Fire-Ball 225
grounding
screw
1/2 in. npt(f)
fluid outlet
3/8 in. npt(f)
air inlet
8.9 in.
(20 cm)
40.68 in.
(103.33
cm) drop tube is
cut to length
Model 246775
Universal
Overall Length: 18.9 in. (48 cm)
Model 248097
Variable length
Overall Length: 59.2 in. (150.4 cm)
Model 246775
Universal
1/2 in. npt(f)
fluid outlet
3/8 in. npt(f)
air inlet
8.9 in.
(20 cm)
Grounding
screw
05752
1-1/2 in. npt
4.250 in. (10.8
cm) bolt circle
0.281 in. (7
.1 mm)
diameter cle
arance holes
Model 248097
Variable length
Mounting Hole Layout
30
32
Table of Contents
Table of Contents
2
Contents
2
Packages
3
Manual Conventions
4
Warning
5
Installation
6
Mounting the Pump
7
Grounding
7
Mobil Mounting
13
Operation
15
Relieving Pressure
15
Starting and Adjusting the Pump
15
Parts
16
Universal Pump Package Fire-Ball 225 Model 248230 Fire-Ball 300 Model 225852 Fire-Ball 425 Model 225853
16
16-Gallon (60 Liter) Gear Lube Dispenser Fire-Ball 225 Model 246903 Fire-Ball 300 Model 225728
18
16-Gallon (60 Liter) Drum Cover Pump Fire-Ball 225 Model 246904 Fire-Ball 300 Model 225094
20
55-Gallon (208 Liter) Drum Cover Pump Fire-Ball 225 Model 246906 Fire-Ball 300 Model 225642 Fire-Ball 425 Model 225782
22
Fire-Ball 225 Model 246907
22
Fire-Ball 300 Model 225640
22
Fire-Ball 425 Model 225786
22
16-Gallon (60 Liter) Drum Cover, Truck Mounted Pump Fire-Ball 300 Model 222086
26
55-Gallon (208 Liter) Drum Cover, Truck Mounted Pump Fire-Ball 300 Model 206655 Fire-Ball 425 Model 206656
27
55-Gallon (208 Liter) Bung Adapter, Truck Mounted Pump Fire-Ball 300 Model 204264 Fire-Ball 425 Model 222067
28
Technical Data
30
Fire-Ball 225 (3:1)
30
Fire-Ball 300 (5:1)
30
Fire-Ball 425 (10:1)
30
Dimensions
31
Fire-Ball 225
31
Fire-Ball 300
32
Fire-Ball 425
33
Graco Standard Warranty
34
Graco Information
34
