12 310894

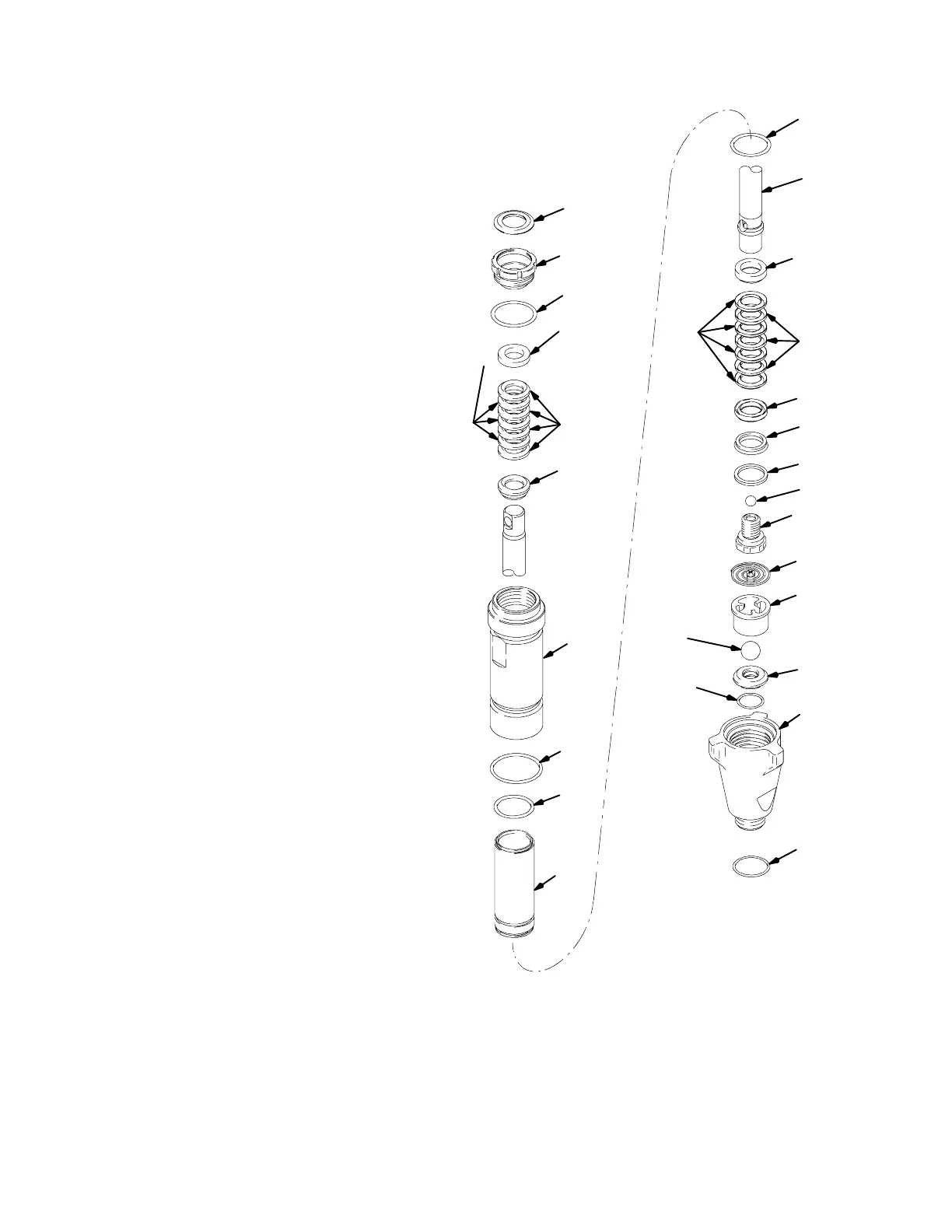

Parts -- Pump 249122
Model 249122, Series A;
Ref
No. Part No. Description Qty.
201 112590 PLUG 1
202 15E962 NUT, packing 1
203* 193722 V -PACKING 8
V-Maxt UHMWPE, blue
204* 198768 GLAND, packing, male, throat 1
205 249139 CYLINDER, pump 1
206* 107203 BALL, valve, check 1
207* 107306 PACKING, o-ring 1
210 249177 VALVE, piston 1
211 233698 SPRING, intake ball 1
212† 240918 KIT, SEAT, carbide 1
includes 214 and 227
213 15E655 HOUSING, intake (foot) 1
214*† 107167 BALL, sst 1
215 198505 GUIDE, ball 1
216* 119636 WIPER, piston 1
217* 189588 GLAND, packing, female 1
218* 15E639 V-PACKING, piston, V-Maxt 3
UHMWPE, brown
219* 189585 GLAND, packing, male 1
220 249121 SLEEVE, cylinder 1
221* 108822 PACKING, o-ring 2
222 249119 ROD, piston 1
223* 112591 V-PACKING, leather, throat 3
224* 194175 GLAND, packing, female 1
227*† 107098 PACKING, o-ring 1
228 108832 SPACER, nut 1
229* 15F183 WASHER, backup 1
230†† 15E802 FITTING, pump (not shown) 1
231 118494 O-R IN G, ac et al 1
232†† 15E806 TUBE, intake (not shown) 1
* These parts are also included in Repair Kit 249123,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
240918, which may be purchased separately.
†† These parts are included with pump 249122.
ti5673a
*223
216*
201
202
224*
203*
204*
205
221*
220
222
206*
219*
218*
217*
210
215
212†
213
†*214
*203
221
*
207*
†*227
228
229
211
231
