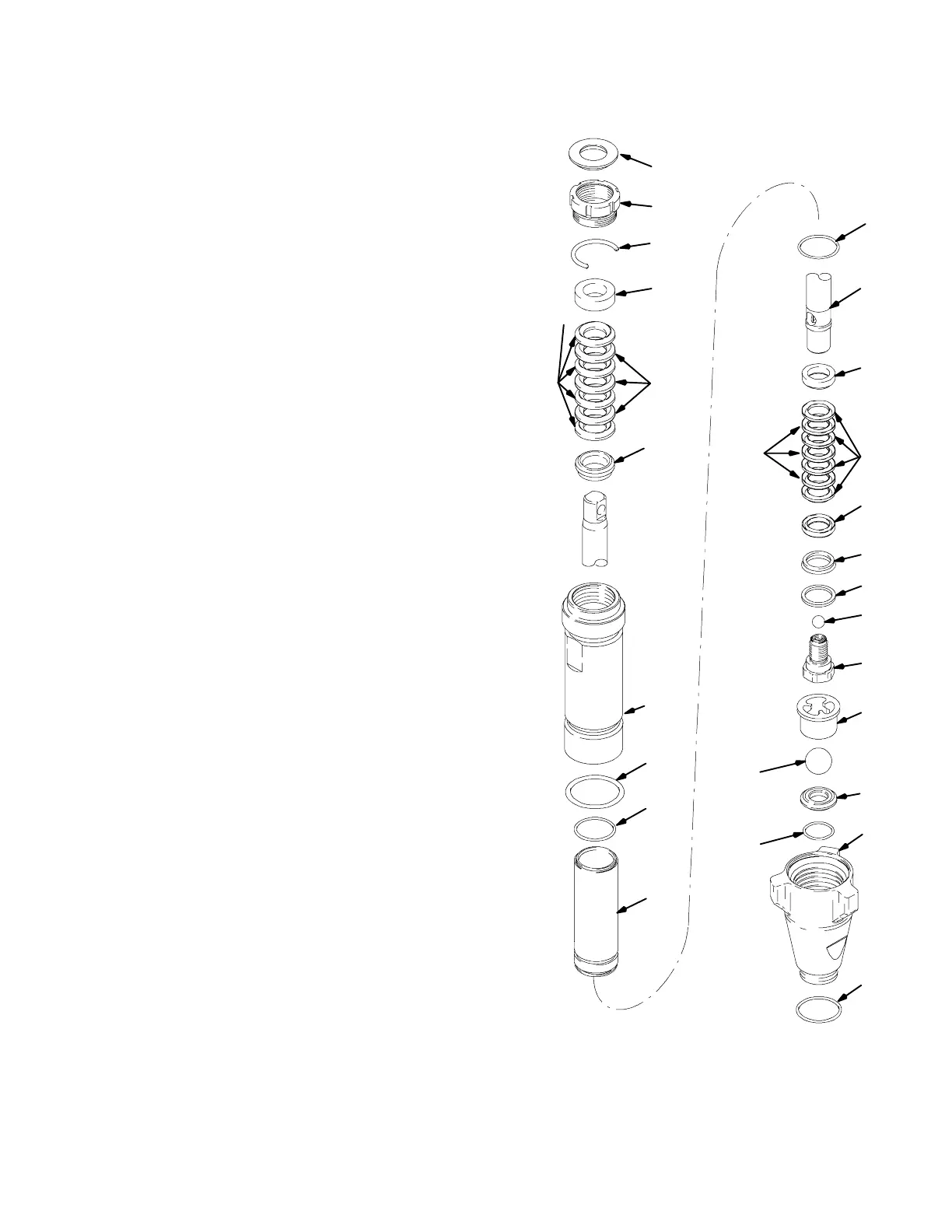

Parts -- Pump 287513
Model 287513, Series A
Ref
No. Part No. Description Qty.
201 183171 PLUG 1
202 193032 NUT, packing 1
203* 193124 V -PACKING, throat, 4
V-Maxt UHMWPE, blue
204* 15C989 GLAND, male, throat 1
205 287552 CYLINDER, pump
206* 101947 BALL, sst, 0.3125 in. 1
207* 106556 PACKING, o-ring 1
208* 193125 V -PACKING, piston 4
V-Maxt UHMWPE, blue
210 240150 VALVE, piston 1
212† 244199 KIT, seat, carbide 1
includes 214 and 227
213 15E654 VALVE, intake (foot) 1
214*† 102972 BALL, metallic 1
215 193027 GUIDE, ball 1
216* 118504 WIPER, piston 1
217* 183185 GLAND, female, piston 1
218* 15E329 V-PACKING, leather, piston 3
219* 183178 GLAND, male 1
220 248210 SLEEVE, cylinder 1
221* 107098 PACKING, o--ring 2
222 248207 ROD, piston 1
223* 183175 V -PACKING, leather, throat 3
224* 15C990 GLAND, packing 1
227*† 108526 PACKING, o-ring 1
228 193127 SPACER, nut 1
229* 15C998 WASHER, backup 1
230†† 15E802 FITTING, pump (not shown) 1
231 118494 O-R IN G, ac et al 1
232†† 15E806 TUBE, intake (not shown) 1
* These parts are also included in Repair Kit 248213,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
244199, which may be purchased separately.
†† These parts are included with pump 287513.
*203
216*
201
202
224*
223*
204*
205
221*
220
222
206*
219*
208*
217*
210
215
212†
213
†*214
*218
221*
207*
†*227
228
229
ti5490a
231
