Graco 24B322 User Manual

10 310894

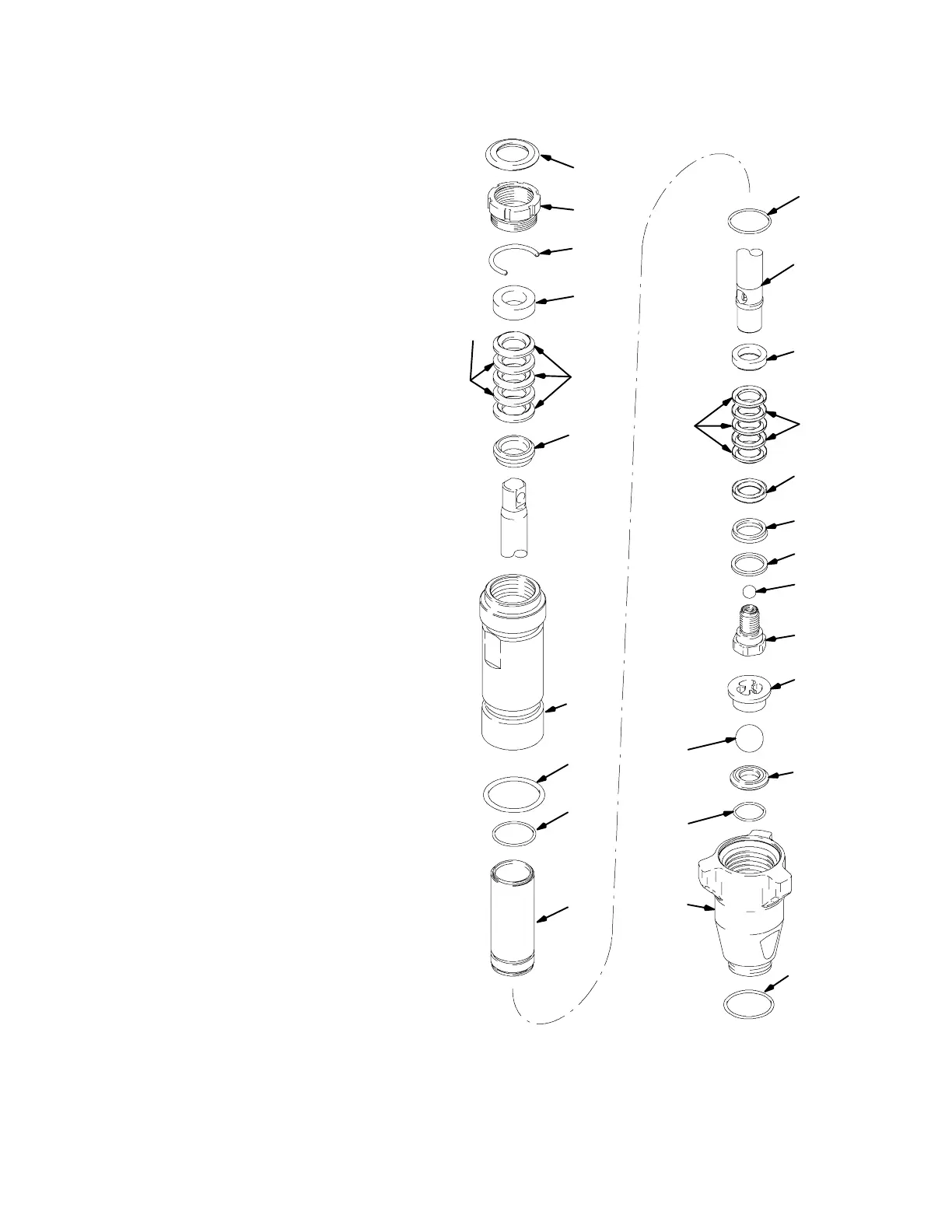

Parts -- Pump 287512
Model 287512, Series A
Ref
No. Part No. Description Qty.
201 179810 SEAL, throat 1
202 193046 NUT, packing 1
203* 192692 V -PACKING, throat, 3
V-Maxt UHMWPE, blue
204* 15C987 GLAND, male, throat 1
205 287551 CYLINDER, pump
206* 105444 BALL, sst, 0.3125 in. 1
207* 114054 PACKING, o-ring 1
208* 192693 V -PACKING, piston 3
V-Maxt UHMWPE, blue
210 239932 VALVE, piston 1
212† 239922 KIT, seat, carbide 1
includes 214 and 227
213 15C785 VALVE, intake (foot) 1
214*† 105445 BALL, sst, 0.5000 in. 1
215 192624 GUIDE, ball 1
216* 118503 WIPER, piston 1
217* 178969 GLAND, female, piston 1
218* 178939 V -PACKING, leather, piston 2
219* 196880 GLAND, male 1
220 248209 SLEEVE, cylinder 1
221* 108526 O-RING, PTFE 2
222 248206 ROD, piston 1
223* 178940 V -PACKING, leather, throat 2
224* 15C988 GLAND, female
227*† 107079 PACKING, o-ring 1
228 192714 SPACER, throat, nut 1
229* 15C997 WASHER, backup 1
230†† 15E802 FITTING, pump (not shown) 1
231 118494 O-R IN G, ac et al 1
232†† 15E807 TUBE, intake (not shown) 1
* These parts are also included in Repair Kit 248212,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
239922, which may be purchased separately.
†† These parts are included with pump 287512.
ti5491a
*223
216*
201
202
224*
203*
204*
205
221*
220
222
206*
219*
218*
217*
210
215
212†
213
†*214
*208
221*
207*
†*227
228
229
231
