16 310894

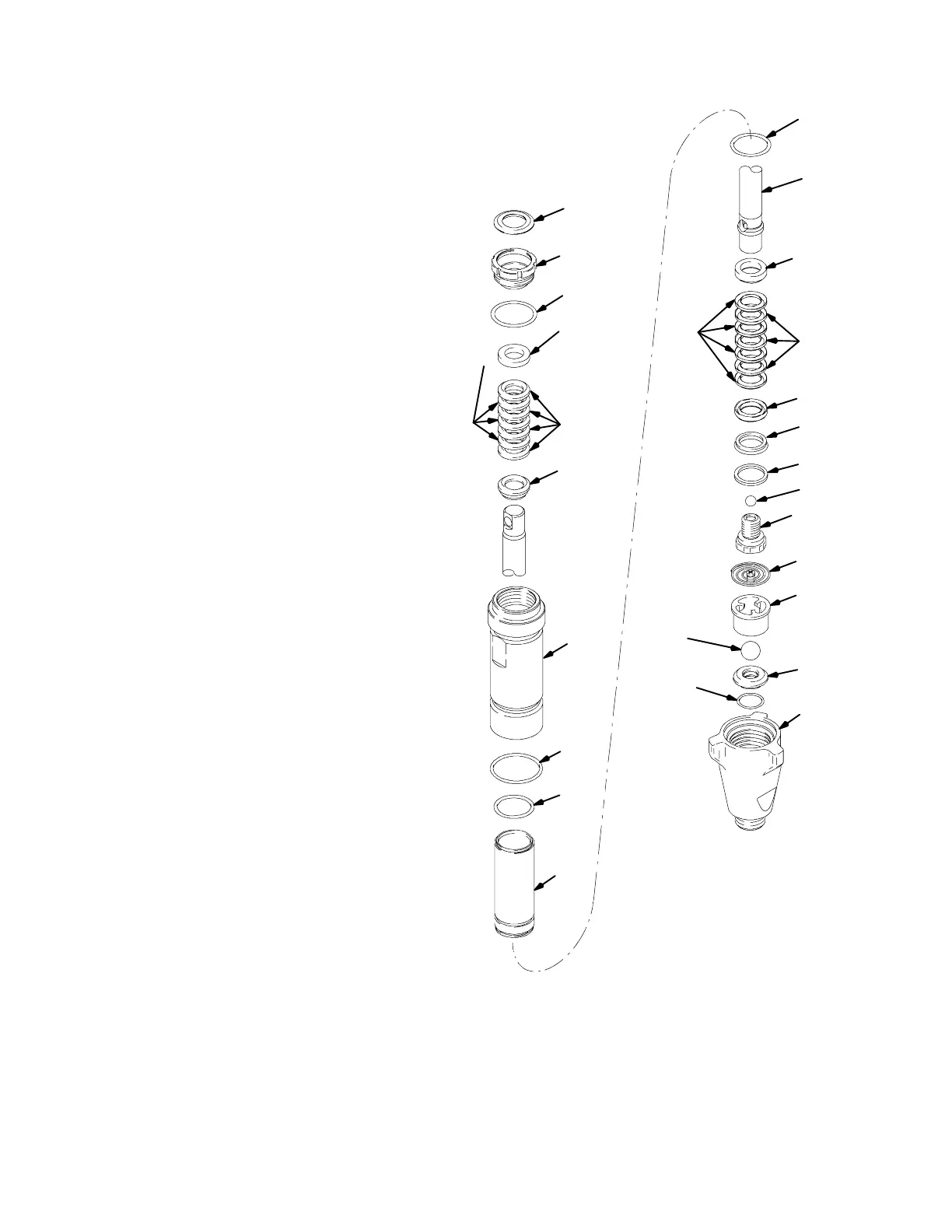

Parts -- Pump 289590
Model 289590, Series A;
Ref
No. Part No. Description Qty.
201 112590 PLUG 1
202 15E962 NUT, packing 1
203* 193722 V -PACKING 8
V-Maxt UHMWPE, blue
204* 198768 GLAND, packing, male, throat 1
205 15G437 CYLINDER, pump 1
206* 107203 BALL, valve, check 1
207* 107306 PACKING, o-ring 1
210 249177 VALVE, piston 1
211 233698 SPRING, intake ball 1
212† 240918 KIT, SEAT, carbide 1
includes 214 and 227
213 15A303 HOUSING, intake (foot) 1
214*† 107167 BALL, sst 1
215 193391 GUIDE, ball 1
216* 119636 WIPER, piston 1
217* 189588 GLAND, packing, female 1
218* 15E639 V-PACKING, piston, V-Maxt 3
UHMWPE, brown
219* 189585 GLAND, packing, male 1
220 249121 SLEEVE, cylinder 1
221* 108822 PACKING, o-ring 2
222 288103 ROD, piston 1
223* 112591 V-PACKING, leather, throat 3
224* 194175 GLAND, packing, female 1
227*† 107098 PACKING, o-ring 1
228 108832 PACKING, o-ring 1
229* 15J800 WASHER, backup 1
230†† 15G509 FITTING, pump (not shown) 1
232†† C20195 PACKING, o-ring (not shown) 1
* These parts are also included in Repair Kit 249123,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
240918, which may be purchased separately.
†† These parts are included with pump 289590.
It is recommended that the Check Valve be re-
paired at the same time as the pump. See manual
313773 and Kit 258650.
ti5673a
*223
216*
201
202
224*
203*
204*
205
221*
220
222
206*
219*
218*
217*
210
215
212†
213
†*214
*203
221
207*
†*227
228
229
211
