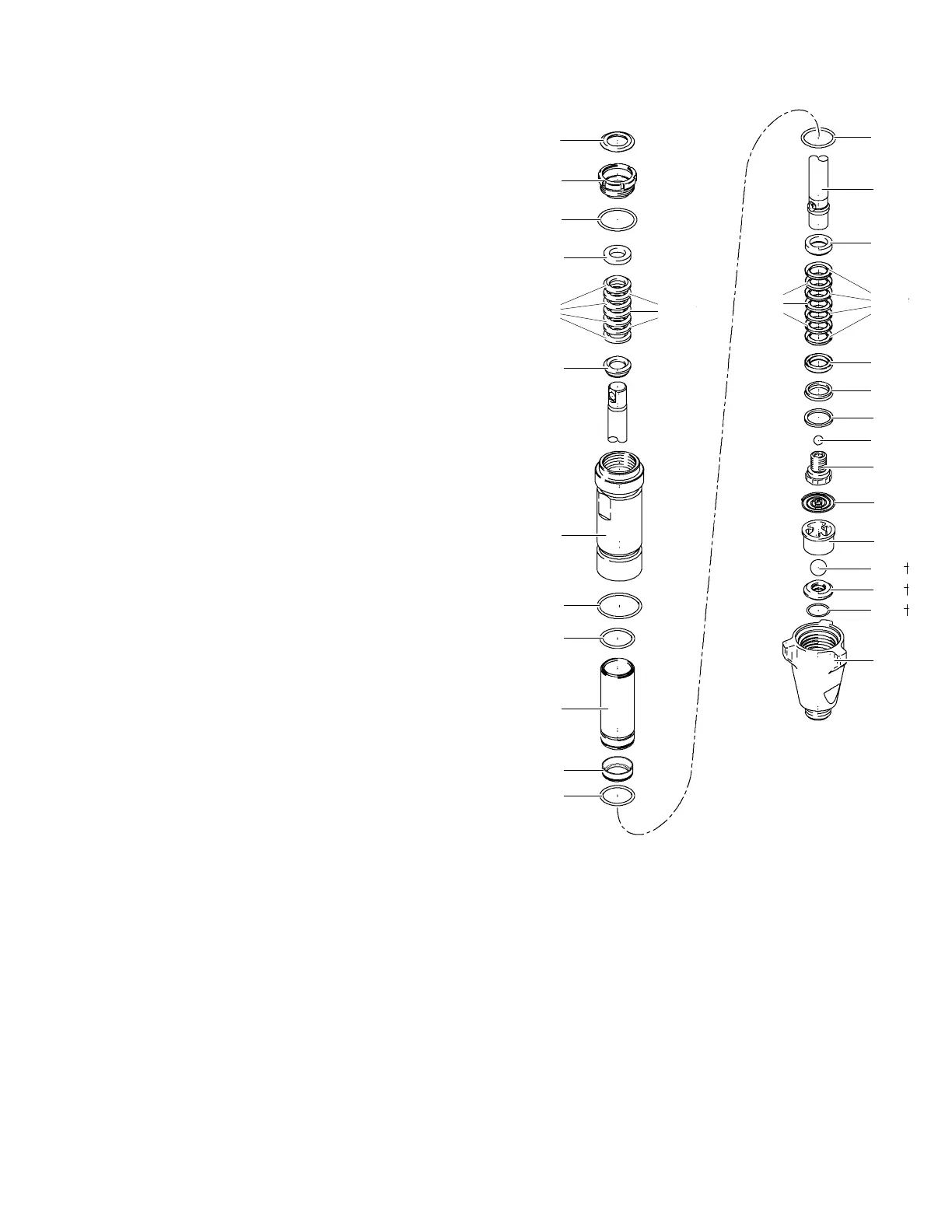

Parts -- Pump 24M416
Model 24M416, Series A;
Ref
No. Part No. Description Qty.
201 183171 PLUG 1
202 193032 NUT, packing 1
203* 193125 V -PACKING 4
204* 15C989 GLAND, packing, male, throat 1
205 16M290 CYLINDER, pump 1
206* 116327 BALL, valve, check, ceramic 1
207* 160325 PACKING, o-ring 1
210 240150 VALVE, piston 1
211 24E027 SPRING, intake ball 1
212† 24M832 KIT, SEAT, carbide 1
includes 214 and 227
213 15A303 HOUSING, intake (foot) 1
214*† 118602 BALL, ceramic, 0.875 in. 1
215 16M658 GUIDE, ball 1
216* 118504 WIPER, piston 1
217* 183185 GLAND, packing, female 1
218* 15E329 V-PACKING, piston, V-Maxt 3
UHMWPE, brown
219* 183178 GLAND, packing, male 1
220 248210 SLEEVE, cylinder 1
221* 107098 PACKING, o-ring 2
222 249028 ROD, piston 1
223* 183175 V -PACKING, leather, throat 3
224* 15C990 GLAND, packing, female 1
227*† 107098 PACKING, o-ring 1
228 C20987 PACKING, o-ring 1
229* 15C998 WASHER, backup 1
230†† 15G880 FITTING, pump (not shown) 1
231†† 193124 PARKING, vee 1
232†† C20195 PACKING, o-ring (not shown) 1
233* 108822 PACKING, o--ring 1
234* 16M291 SPACER, sleeve 1
* These parts are also included in Repair Kit 24M830,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
24M832, which may be purchased separately.
†† These parts are included with pump 24M416.
