18 310894

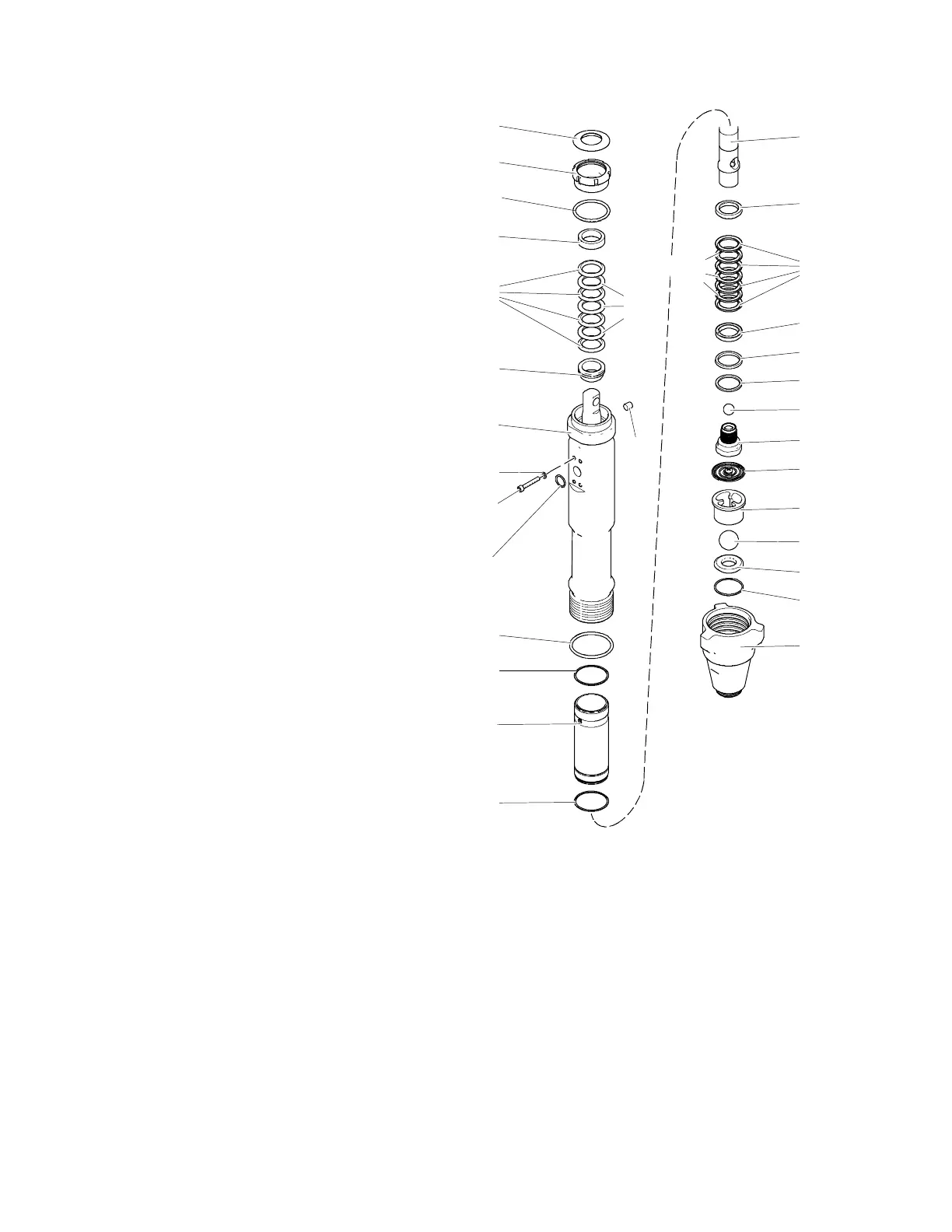

Parts -- Pump 24B322
Model 24B322, Series A;
Ref
No. Part No. Description Qty.
201** HOUSING, outlet, pump 1
202 15D809 SLEEVE, cylinder 1
203 15A303 HOUSING, intake 1
204 15G848 ROD, piston 1
205 287388 VALVE, piston 1
206 15E962 NUT, packing 1
207 112590 PLUG, throat seal 1
208 157195 PACKING, o--ring 1
209* 193722 PACKING, vee, piston 8
210* 112591 PACKING, vee, leather 3
211* 194175 GLAND, female 1
212* 198768 GLAND, packing, male 1
213* 108822 PACKING, o--ring 2
214 160325 PACKING, o--ring 1
215 245256 SPRING, intake ball 1
216 193391 GUIDE, ball 1
217 193395 SEAT, carbide 1
218*† 107167 BALL, sst 1
219*† 107098 PACKING, o--ring 1
220* 107203 BALL, valve, check 1
221* 15E639 PACKING, vee 3
222* 189585 GLAND, packing, male 1
223* 189588 GLAND, packing, female 1
224* 119636 WIPER, piston 1
225 15J800 WASHER, back--up 1
226** 115719 PACKING, o--ring, 015, FKM 1
227** 104705 SCREW, cap, sch 4
228** 100020 WASHER, lock 4
229** 116618 MAGNETS (must be installed with
same polarity) 3
†† 15X083 MANIFOLD (order separately)
* These parts are also included in Repair Kit 249123,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
240918, which may be purchased separately.
** Included in Cylinder Kit 24B525.
202
215
216
217
213
213
219
218
205
225
203
214
224
223
209
221
209
221
209
221
209
222
204
220
201
212
209
210
209
210
209
210
209
211
206
207
229
228
227
226
208
