Pinion Assembly/Clutch Armature/Clamp
10 311019L
Installation
Clutch Armature

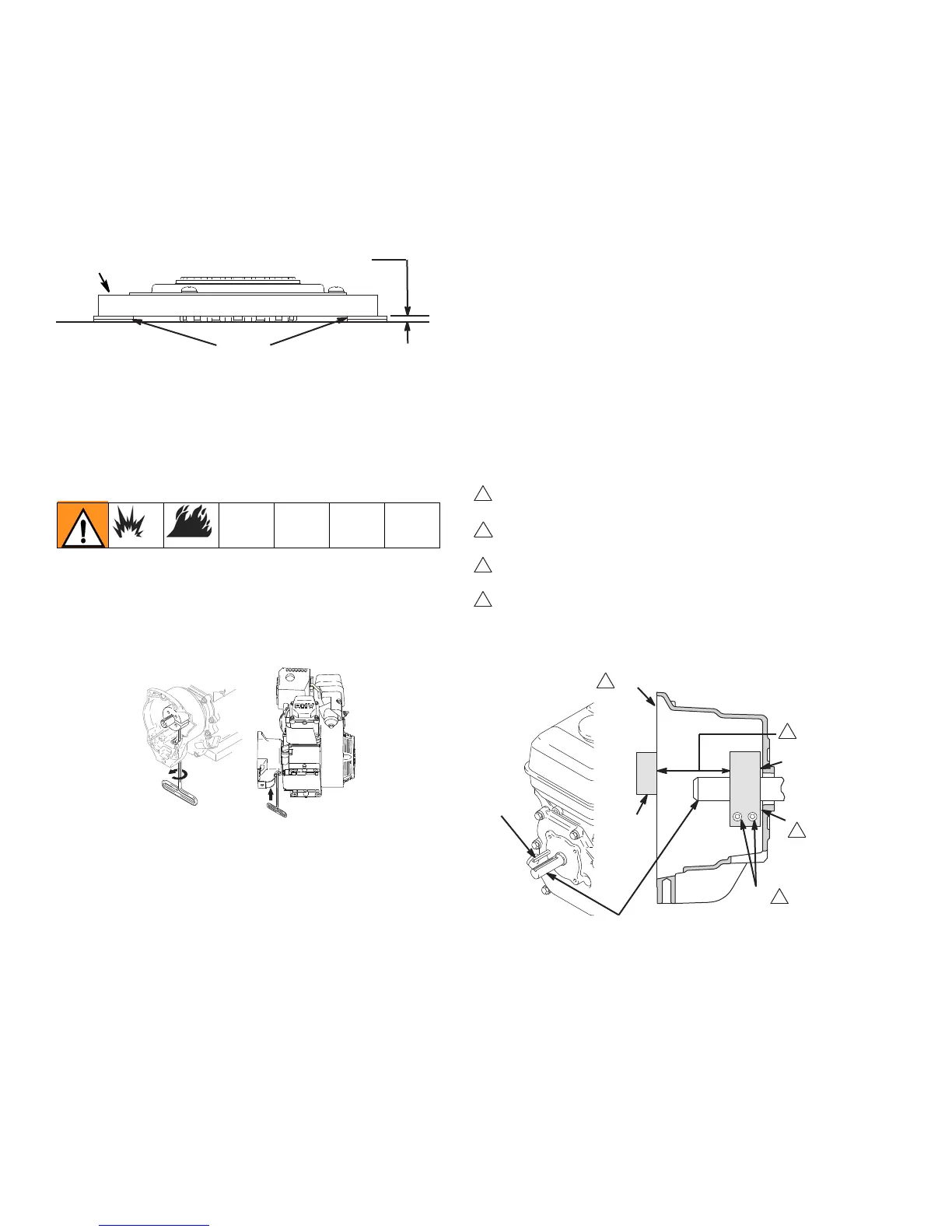

1. FIG. 8. Lay two stacks of two dimes on smooth bench
surface.
2. Lay armature (39) on two stacks of dimes.
3. Press center of hub down to bench surface.
FIG. 8
4. Install armature (39) on engine drive shaft.
5. Install four screws (36) and lock washers (35) with torque
of 125 in-lb.
Pinion Assembly
6. F
IG. 6. Install o-ring (44e).
7. Tap pinion shaft (44c) in with plastic mallet.
8. Install retaining ring (44d) with beveled side facing up.
9. FIG. 5. Place pinion assembly on bench with rotor side up.
10. Apply locktite to screws. Install four screws (42) and lock
washers (35). Alternately torque screws to 125 in-lb until
rotor is secure. Use threaded holes to hold rotor.
11. F
IG. 4. Install pinion assembly (44) with four screws (18).
12. Connect clutch (+) and clutch (–) connectors to wire
harness.
Clamp Removal
1. Do Engine Removal.
2. Drain gasoline from tank according to Honda manual.
3.
FIG. 9
. Tip engine on side so gas tank is down and air
cleaner is up.
4. FIG. 10. Loosen two screws (36) on clamp (38),
5. Push screwdriver into slot in clamp (38) and remove
clamp.
FIG. 9
Clamp Installation
1. FIG. 10 Install engine shaft key (37)
2. Tap clamp (38) onto engine shaft (A). Maintain dimension
shown note 2. Chamfer must face engine.
3. Check dimension: Place rigid, straight steel bar (B) across
face of clutch housing (45). Use accurate measuring
device to measure distance between bar and face of
clamp. Adjust clamp as necessary. Torque two screws
(36) to 125 ±10 in-lb (14 ±1.1 N·m)
Face of clutch housing
1.550 ±.010 in. (39.37±.25 mm)
Torque to 125 ±.10 in-lb (14 ±1.1 N·m)
Chamfer this side
FIG. 10
0.12 +.01 in. (3.0 +.25 mm)
dimes
ti5534a
