Auto-Fill Shut Off Overview
The Compact Dyna-Star Auto-Fill Shut Off fills and refills grease tanks in an automatic lubrication system. As grease
is added to the tank, it pushes the follower plate to the top of the tank where the valve pin actuates and closes the
inlet fluid path.
Note: The remote fill station pump stalls (dead-heads) when the tank is full. If this does not occur, there is a leak in
the system.
Note: The fill pump pressure can be as high as 2000 psi, depending upon the lengths and diameters of Refilling line
(GG) and Supply hose (JJ). Graco recommends using a 36:1 ratio, or higher, air operated fill pump.
Key:
AA Remote fill station pump*
BB Remote fill station tank*
CC Filter*
DD Pressure relief line*
EE Fill valve* [Graco Part No. 77X542]
FF Fill valve pressure relief knob* [Part of Fill Valve 77X542]
GG Refilling line*
HH Instruction label* [Included with Fill Valve 77X542]
JJ Supply hose*
V Auto-Fill Shut Off
V1 Auto-Fill Shut Off valve pin
Y Follower plate
KTank
*User provided

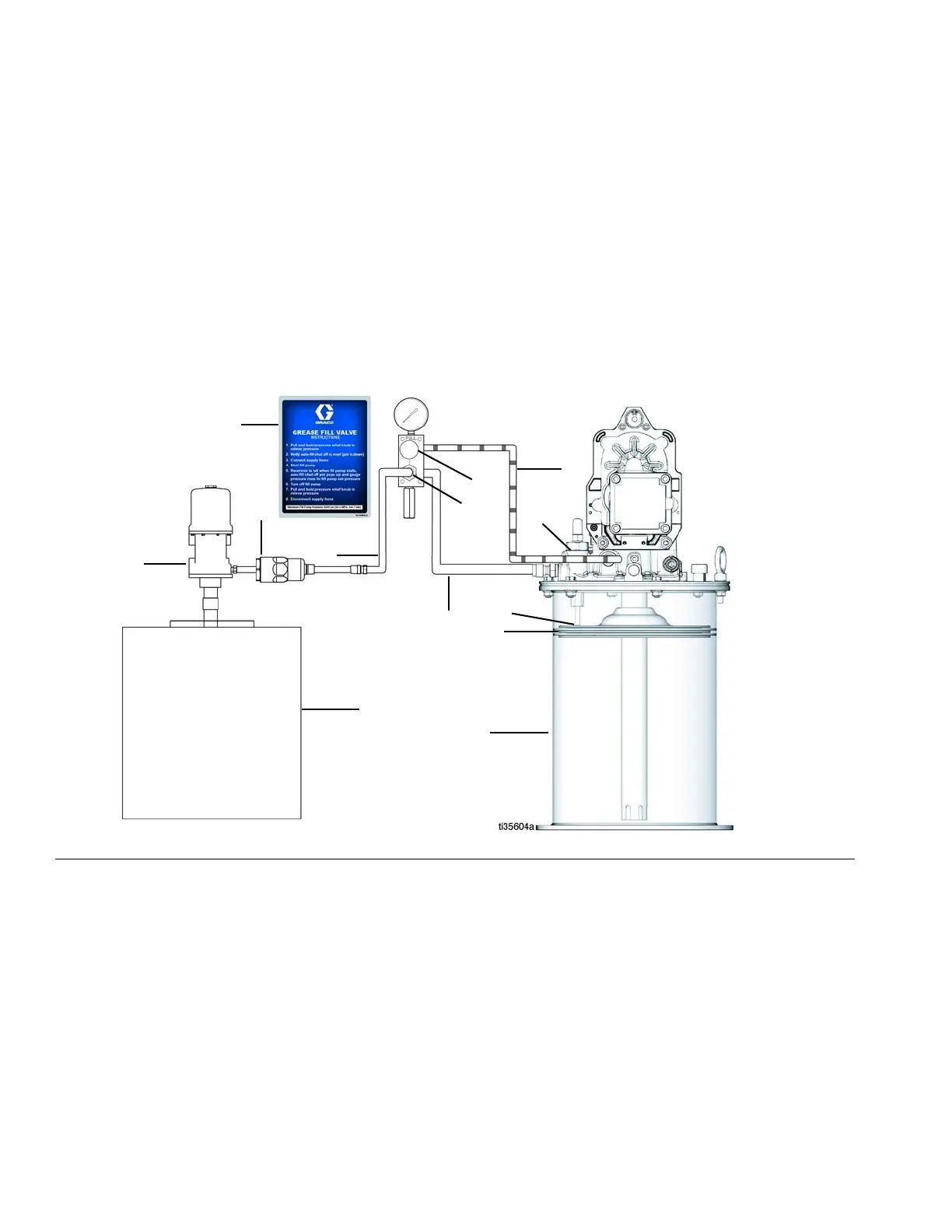

FIG. 16
