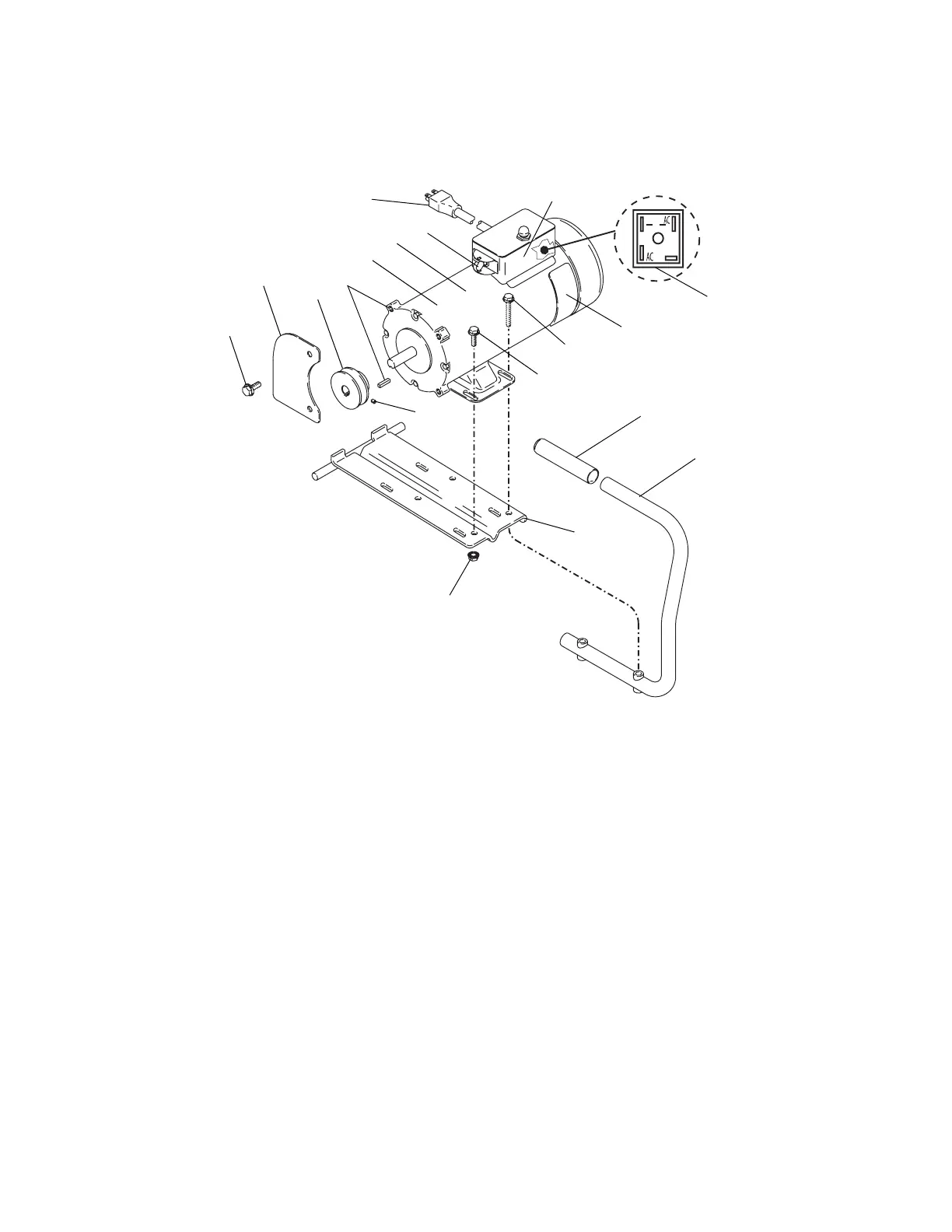

Parts - 288473, 288474, 248949, 248950
4 310812K
Parts - 288473, 288474, 248949, 248950
▲ Warning labels, tags, and cards are free.
† Brush Repair Kit 220853 is available for 248949,
288473
Brush Repair Kit 287737 is available for 248950,
288474
14
15
21
†
9
5
3
6
7
16
17
4
1
10
11
19
20
8
•
•
•
•
Ref. Part Description Qty.
1† ELECTRIC MOTOR
246129 NON-CSA, 2.0 HP, includes 19
1
246125 CSA, 2.0 HP, includes 19
1
3 198838 BRACKET, mount, engine
1
4 15A752 PULLEY, 2.5 in.
(Models 248949, 248950)
1
15J953 PULLEY, 4.25 in.
(Models 288473, 288474)
1
5 112586 SCREW, cap, hex hd
2
6 110996 NUT, flanged, hex
4
7 100002 SCREW, set
2
8▲ LABEL, warning
187975 NON-CSA
1
193096 CSA
1
9 114653 SCREW, cap, hex hd
2
10▲ 189285 LABEL, danger, (English)
1
195805 LABEL, danger, (French)
1
14 246214 HANDLE, conversion
1
15 111700 GRIP, handle
1
16 111192 SCREW, cap, flange hd
2
17 15B562 BRACKET, guard, motor
1
18 176347 LABEL, identification
1
19 287145 SWITCH, breaker
1
20 196836 CORD, power
1
21 111419 RECTIFIER, bridge
1
