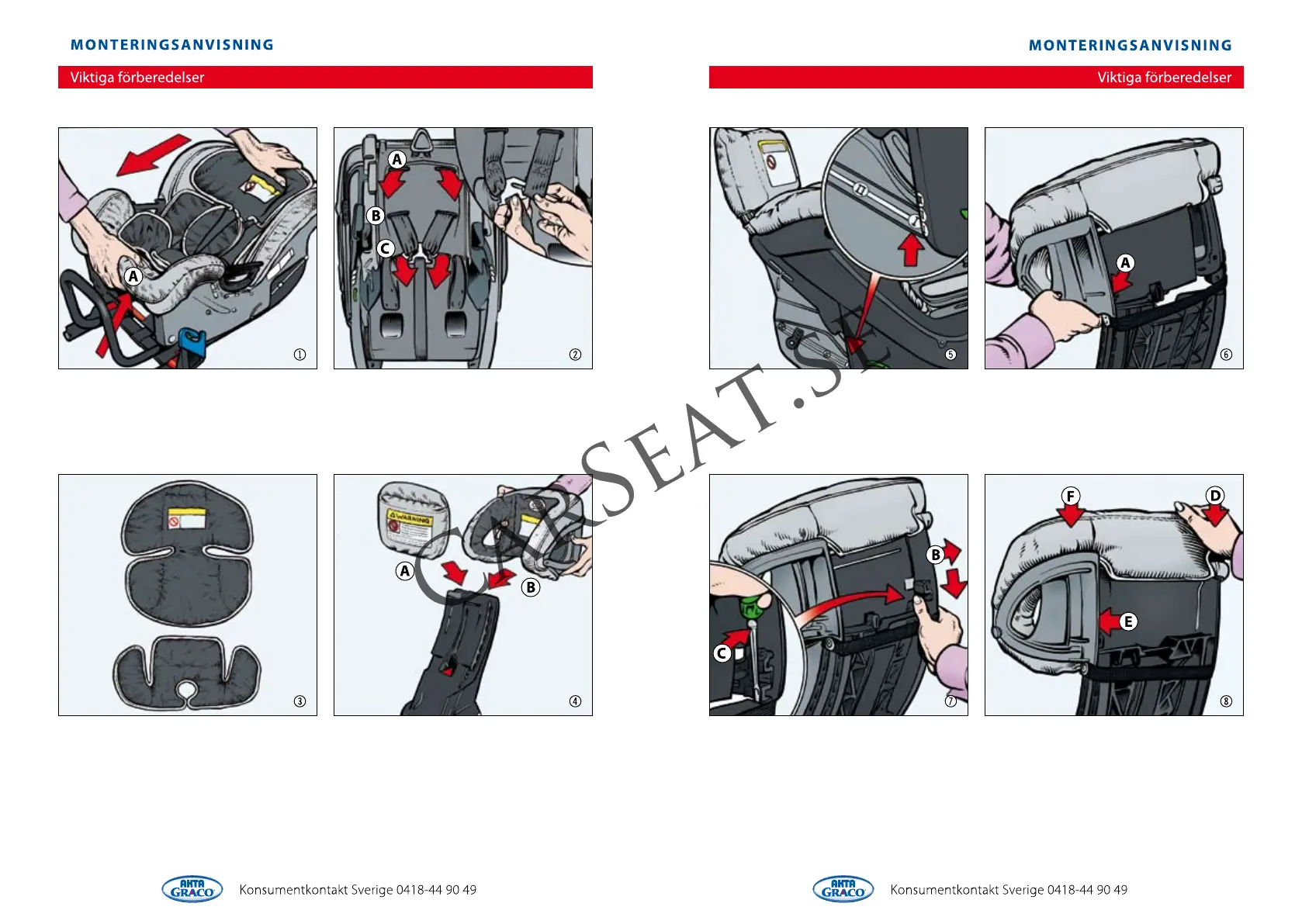

1. Split the car seat by pulling handle (A)
and remove seat from its base.
2. Height adjustment of harness: Pull belt
and remove from buckle (small upper photo).
Thread belt through opening at proper level
(A, B or C). Fasten buckle securely.
Note!!!! Make sure belt is not twisted!
3. A complete comfort cushion for newborns
is included. It consists of a bottom and a top
part. When the baby is around 3 months
bottom must be removed. Upper part is
removed around 9 months of age or earlier
if necessary.
4. Children under 9 kg. (20 lbs) use the soft
neck cushion (A) which is pulled over the
base. If child weighs more than 9 kg. (20 lbs),
head protector (B) is used.
5. Children under 9 kg. (20 lbs) should travel
with car seat in position "I".
6. Head protector for children from 9 kg.
(20 lbs) and up is installed by first pressing
down the heel on the left side (A)......
7. ..... Now pull the right side (B) and press
down heels in track provided. A gentle nudge
with a screwdriver might be help (C)......
8. ......Push down right side (D) to push heels
further down. Finish by pulling left side (E)
and pushing (F) to put heels firmly in
place. (To remove head protector, nudge heels
carefully with a screwdriver and pull up)
