Graco FUSION 309550U - Overall View

Overall View
309550U 9

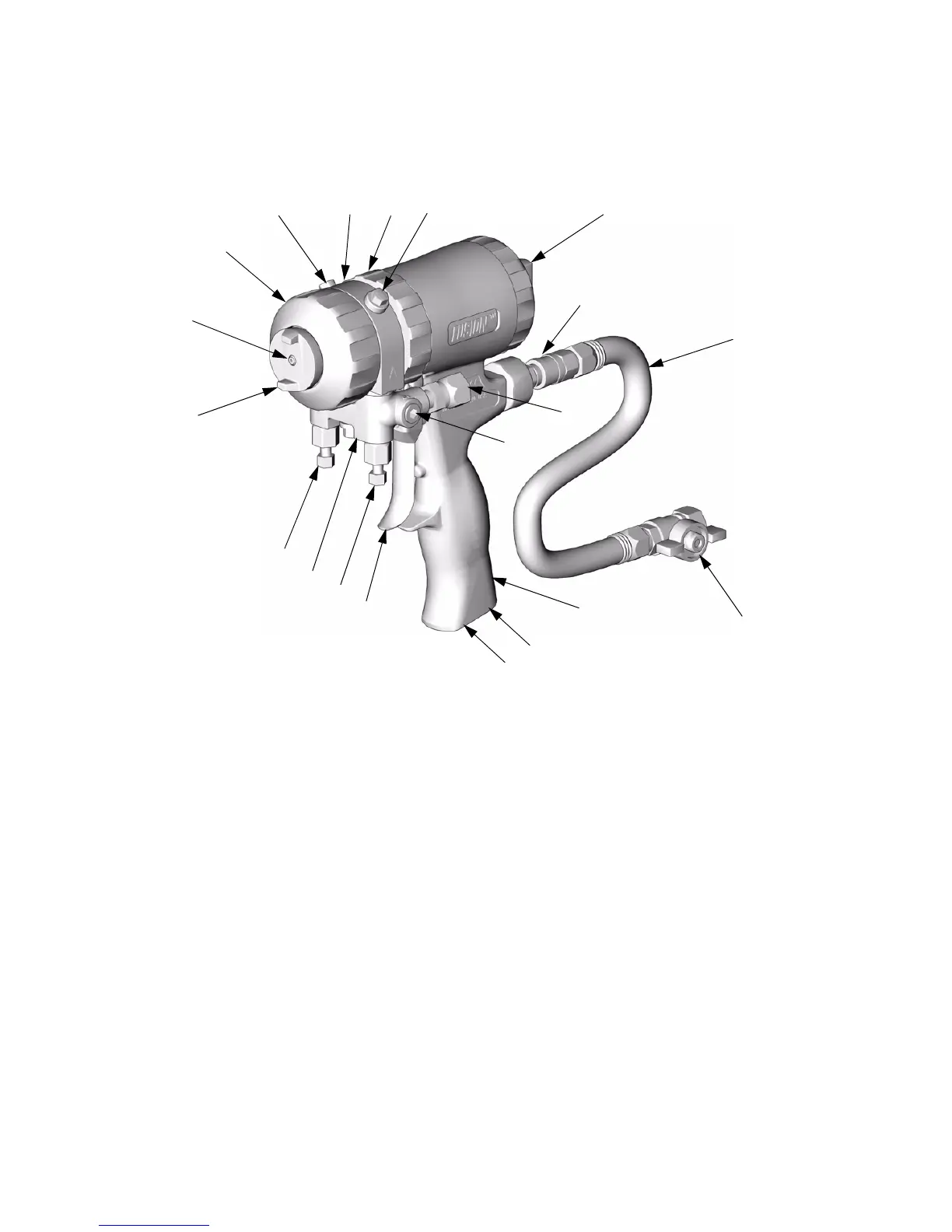

Overall View
Key:
A A Side Fluid Valve (ISO)
B B Side Fluid Valve (RESIN)
C Air Cap
D Air Line Quick Coupler
EMuffler
F Fluid Housing
G Grease Fitting (under cap)
H Handle
J Optional Air Inlet
K Cleanoff Air Valve
L Piston Safety Lock
M Gun Fluid Manifold
N Mix Chamber Nozzle
P Optional Fluid Inlets (A Side Shown)
R Lock Ring
S Fluid Inlet Swivels (A Side Shown)
T Trigger
U Front Retaining Ring
V Gun Air Whip Hose
WAir Valve
A
B
C
D
E
FG
H
J
KL
M
N
P
R
S
T
TI2408A
U
V
W
