Graco G Series User Manual

307026 21
Technical Data

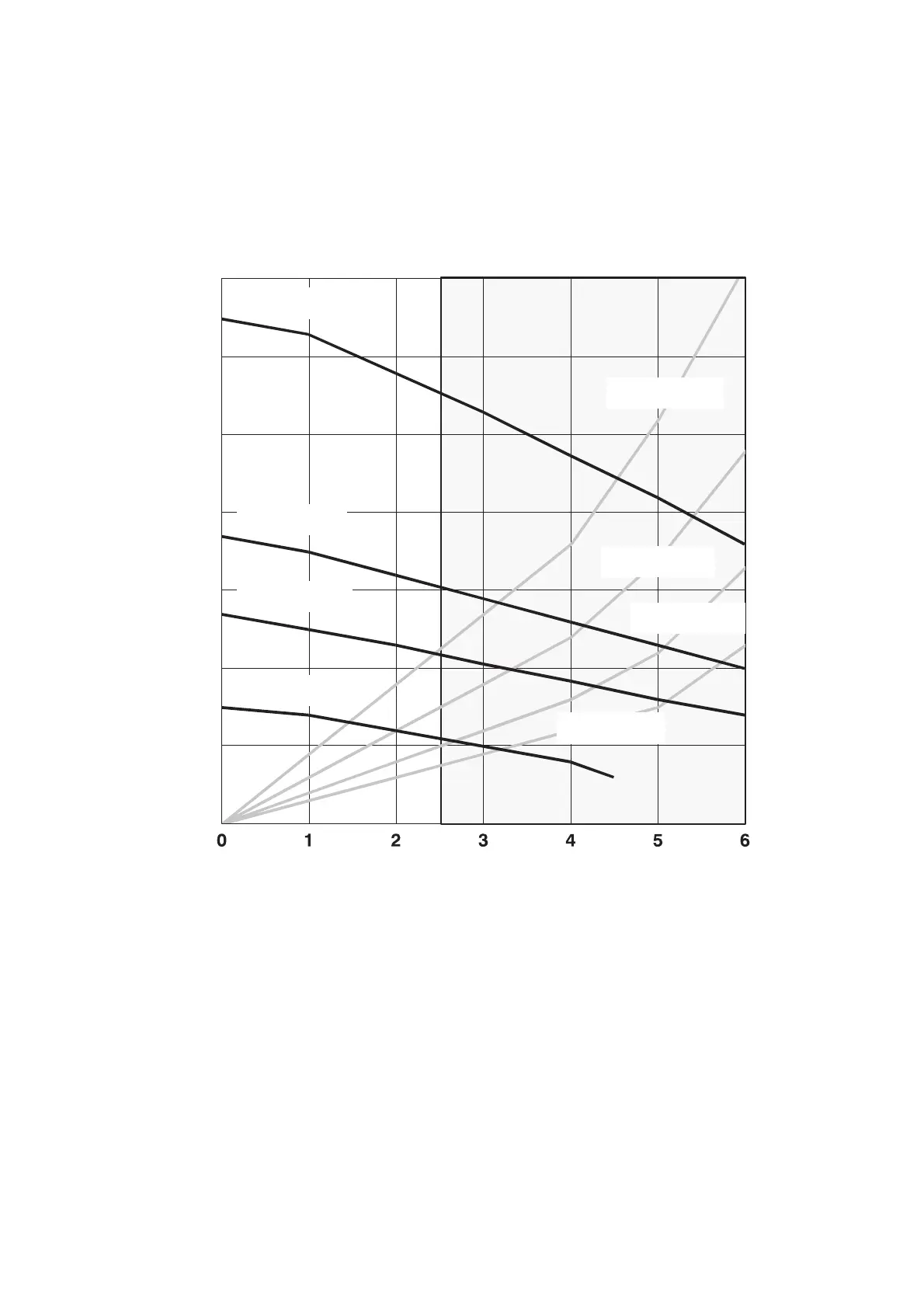

KEY: Fluid Outlet Pressure - Black Curves
Air Consumption - Gray Curves
NOTE: Pump may be operated continuously to shaded
area (100 cpm). Area shown is for Model 226040 only. For
Model 223954, 100 cpm line is at 1.5 gpm.
FLUID FLOW (TEST FLUID: NO. 10 WEIGHT OIL)
To find Fluid Outlet Pressure (psi/bar) at a specific fluid
flow (gpm/lpm) and operating air pressure (psi/bar):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected
fluid outlet pressure curve (black). Follow left to scale
to read fluid outlet pressure.
To find Pump Air Consumption (scfm or m/min) at a
specific fluid flow (gpm/lpm) and air pressure (psi/bar):
1. Locate desired flow along bottom of chart.
2. Read vertical line up to intersection with selected air
consumption curve (gray). Follow right to scale to
read air consumption.
180 psi (12 bar)
air pressure
100 psi (7 bar)
air pressure
70 psi (4.9 bar)
air pressure
40 psi (3 bar)
air pressure
180 psi (12 bar)
air pressure
100 psi (7 bar)
air pressure
70 psi (4.9 bar)
air pressure
40 psi (3 bar)
air pressure
350
24.5
300
21.0
250
17.5
200
14.0
150
10.5
100
7.0
50
3.5
0
cycles/min (Model 223954) 50 100 125 150 200 250
cycles/min (Other Models) 40 80 100 120 160 200
scfm
m
3
/min
24.0
0.672
20.0
0.560
16.0
0.448
12.0
0.336
8.0
0.224
4.0
0.112
(3.8) (7.6) (11.4) (15.2) (19.0) (22.8)
0.75 1.5 2.25 3.0 3.75 4.5
(2.85) (5.7) (8.55) (11.4) (14.25) (17.1)
FLUID PRESSURE
psi
bar
gpm (liters/min)
(Other Models)
gpm (liters/min)
(Model 223954)
