Graco GX FF User Manual

Maintenance
3A8429B 37
3. Clean any debris and dried paint from
the cavity and replace the ball and
spring. Tighten inlet valve to pump
using integrated tool on the frame.

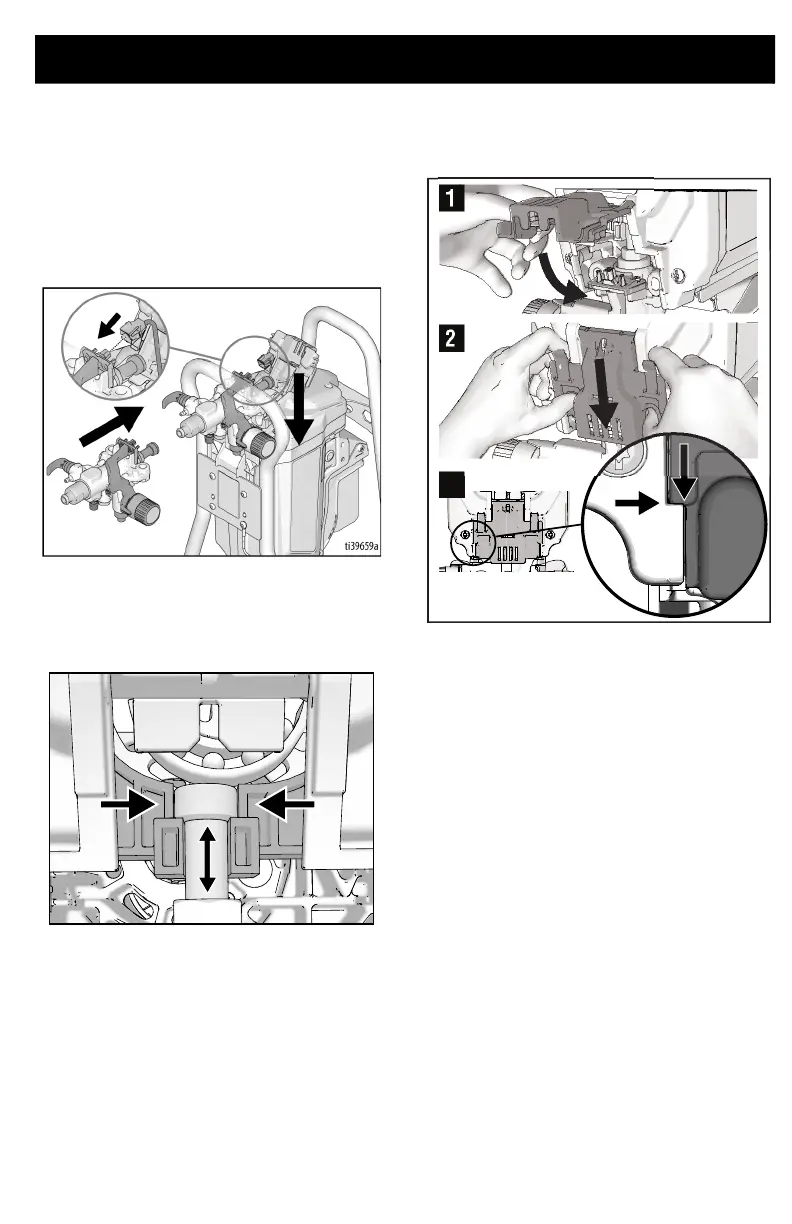

Pump Installation
1. Slide pump assembly onto the mounting
pins.
2. Move pump displacement rod up or
down until cap is level with the opening
in the yoke.
3. Swing easy access door pump door
closed while pushing the entire door
towards the inlet end of the pump.
NOTE: Door must be fully closed and
latched before sprayer will operate.
ti27037a
1
ti27478a
2
3

Graco GX FF Specifications

General

Type	Airless Paint Sprayer
Max Pressure	3000 PSI
Hose Length	25 ft
Max. Working Pressure	3000 PSI
Power Source	Electric
Motor Power	0.625 HP
