GX19 and GX FF Portable Hopper Sprayer
44 3A8429B

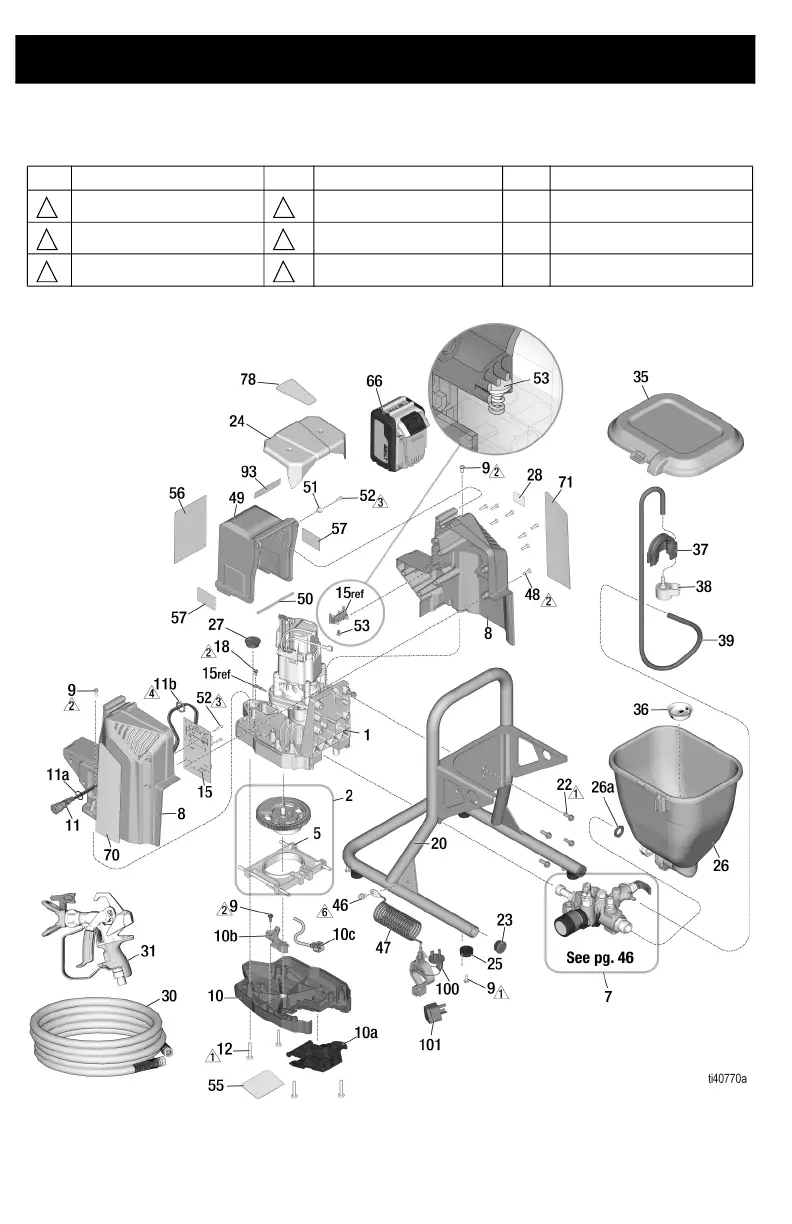

GX19 and GX FF Portable Hopper Sprayer Parts
Ref. Torque Ref. Torque Ref. Torque
110-120 in-lb (12-14 N•m) 35-45 in-lb (4-5 N•m)
30-35 in-lb (2.4-4 N•m) 23-27 in-lb (2.6-3 N•m)
8-10 in-lb (0.9-1.1 N•m) 80-90 in-lb (9-10.2 N•m)
1 4
2 5
3 6
