Graco GX FF User Manual

Know Your Sprayer
3A8429B 9

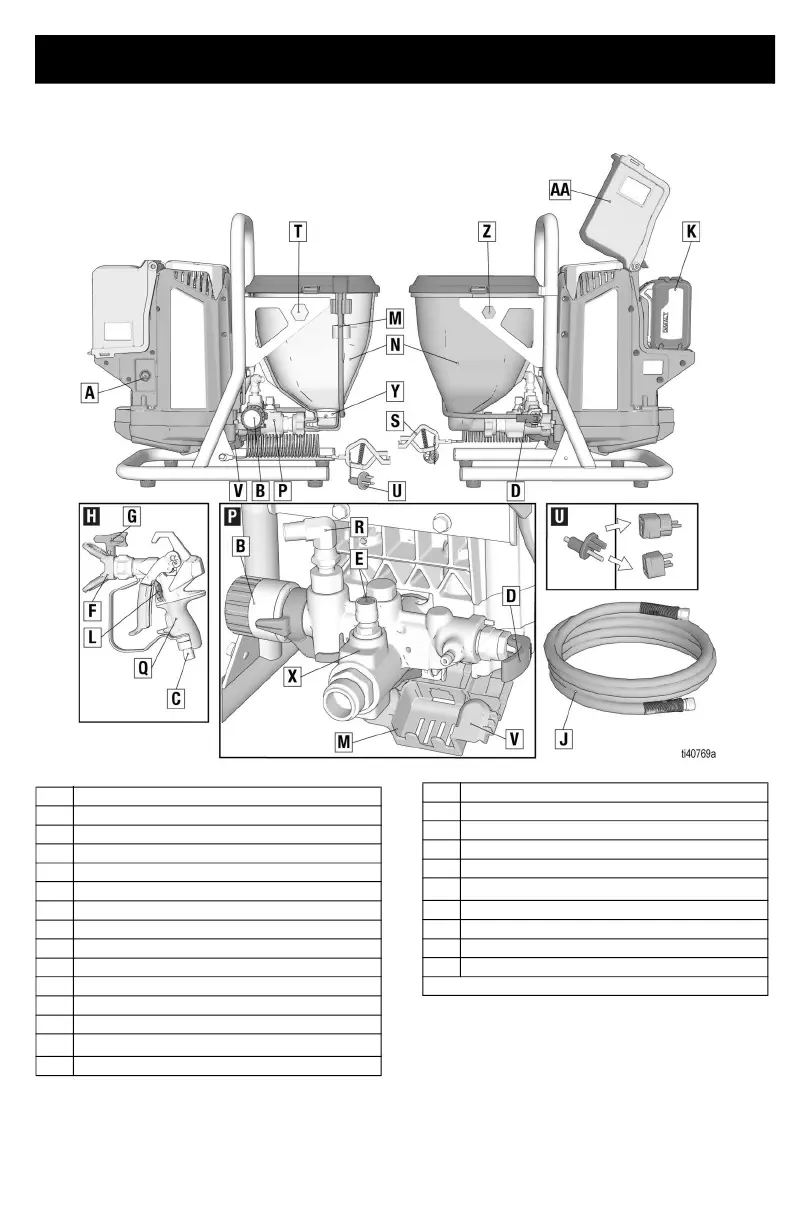

GX19 and GX FF Component Identification
A ON/OFF Switch
B Pressure Control Knob
C Gun Fluid Inlet Fitting
D Prime Valve
E Push Prime Button
F Tip Guard
G Reversible Spray Tip
H Airless Spray Gun
J Airless Hose
K Battery
L Gun Trigger Lock
M Drain Tube (with Diffuser)
N Hopper
P
ProXChange
™
Pump
Q Gun Fluid Filter (inside handle)
R Fluid Outlet Fitting (airless hose connection)
S Ground Wire with Clamp
T Inlet Valve Removal Tool
U Ground Adapter
V Easy Access Door
X
InstaClean
™
Fluid Filter (inside fluid outlet)
Y Inlet Strainer, Inside Hopper (not shown)
Z Pump Removal Tool
AA Battery Shroud
Model/Serial Tag (Not shown, located on frame)
See Quick Reference, page 34 for more information.

Graco GX FF Specifications

General

Type	Airless Paint Sprayer
Max Pressure	3000 PSI
Hose Length	25 ft
Max. Working Pressure	3000 PSI
Power Source	Electric
Motor Power	0.625 HP
