Component Identification and Function
7011A

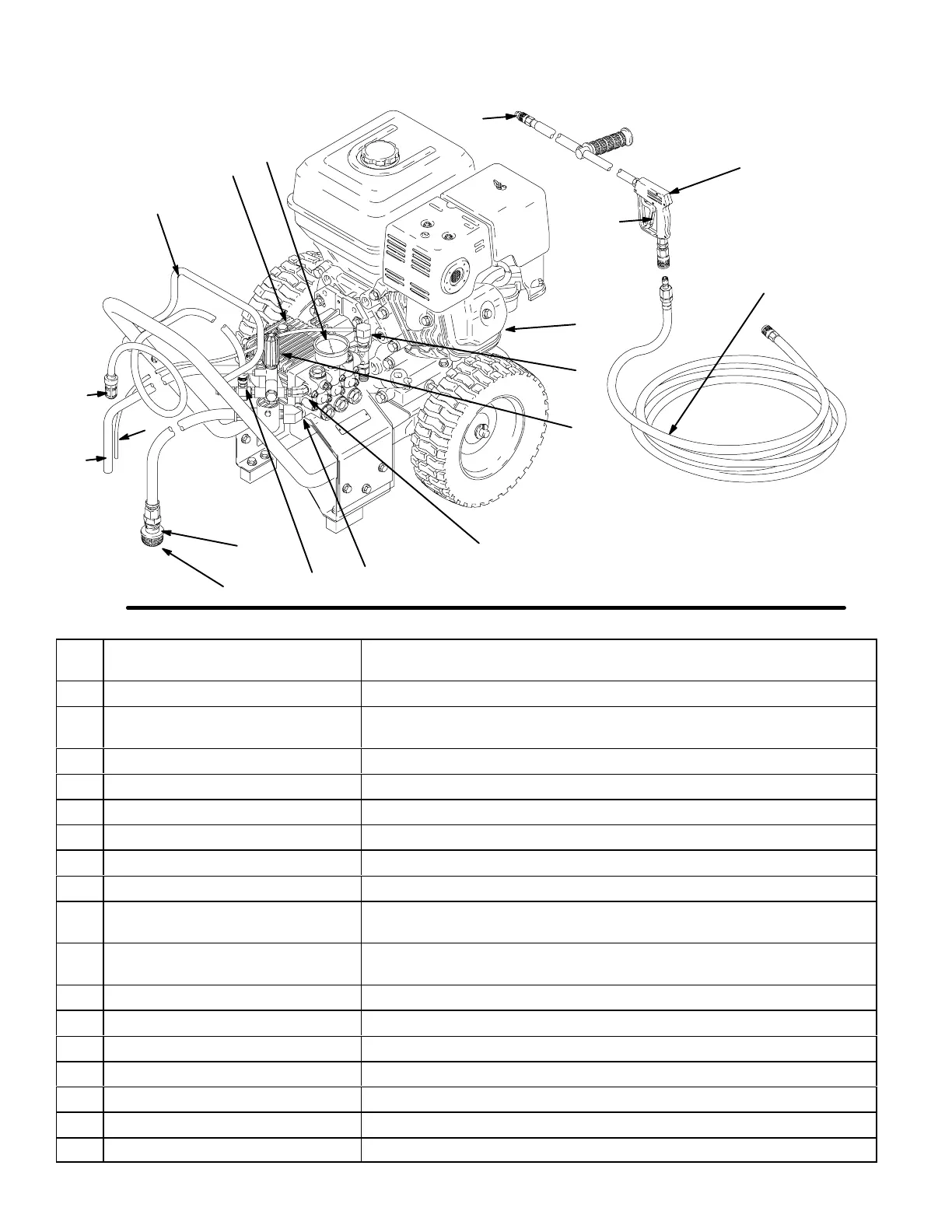

Typical Installation – Pressure Washer
Fig. 1
F
T
E
G
K
A
B
D
L
C
H
J
M
N
P
R
S
V
7010B
A Engine 5.5 horsepower (models 1535 and 2030), 9 horsepower (model 2540),
11 horsepower (model 3040), operates pump assembly
B Pump Assembly Pressurizes fluid to be sprayed through spray gun
C Inlet Screen Screens out debris and other material between source and siphon tube
fluid filter
D Inlet Filter Filters fluid between screen and fluid inlet
E Fluid Inlet Fluid inlet to displacement pump from siphon tube
F Fluid Outlet Hose and spray gun connection
G Spray Gun High pressure spray gun with gun safety latch
H Spray TIp Variety of spray tips depending on job needs
J Spray Gun Safety Latch Prevents accidental triggering of spray gun
K Spray Hose 100 ft (30 m), 1/4 in. or 3/8 in. ID, grounded, nylon hose with spring
guards on both ends
L Injector Injects chemical into spray hose and gun during pressure washer op-
eration by syphon action
M Injector Strainer and Tube Strains and routes chemical from source to injector
N Unloader Relieves fluid pressure when open
P Unloader Drain Tube Provides drainage for unloader
R EZ Start Valve Provides quick priming and pump operation
S EZ Start Drain Tube Provides drainage for EZ start valve
T Hose Rack Provides storage for spray hose
V Pressure Gauge Measures and displays pump air pressure
