Operation
Trigger Safety Latch
WARNING
To reduce risk of serious bodily injury, including
fluid injection, splashing in eyes or on skin, always
engage trigger safety latch when spraying is
stopped, even for a moment. In engaged position,
trigger safety latch prevents gun from being trig-
gered accidentally by hand or if dropped or
bumped. Be sure to push down latch fully to en-
gage it. If latch not fully engaged, gun can acciden-
tally trigger. See Figure 2.

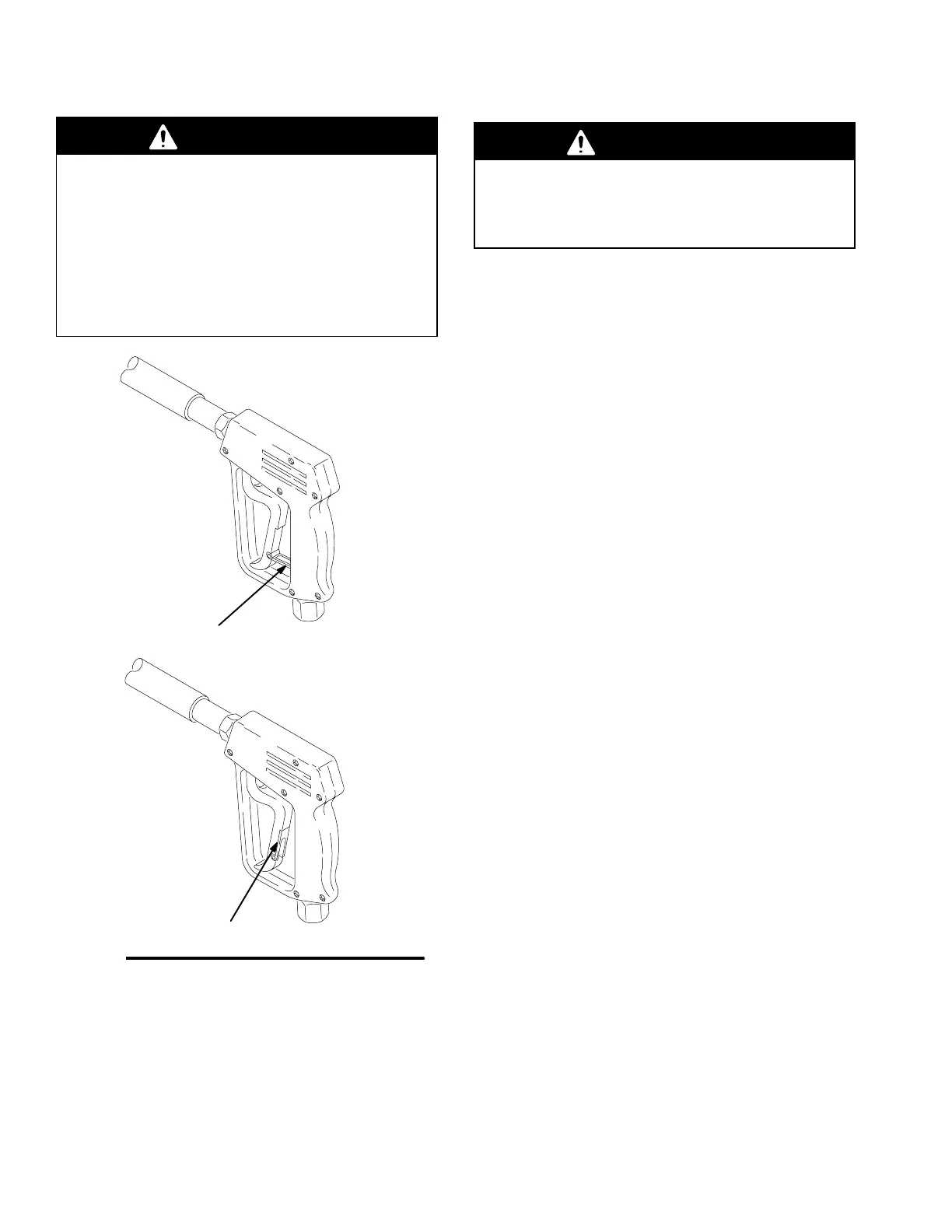

Figure 2
TRIGGER SAFETY LATCH SHOWN ENGAGED
TRIGGER SAFETY LATCH SHOWN DISENGAGED
04612
Chemical Injector Operation
WARNING
To reduce risk of serious bodily injury, including
fluid injection or splashing in eyes or onto skin, use
extreme caution when changing spray tips. Always
follow procedure below.
1. Follow Pressure Relief Procedure.
2. Insert chemical filter (attached with clear tubing to
chemical injector) into container of chemical.
3. Install black spray tip for chemicals (see Installing
and Changing Tips).
The large hole of the chemical spray tip causes a drop
in pressure that actuates the chemical injector. Chang-
ing back to a smaller diameter spray tip deactivates
the chemical injector and produces high pressure for
rinsing. The chemical filter can be left in the chemical
container during high pressure use. The flow rate of
the chemical may be regulated by turning the chemical
adjustment knob on the injector. The maximum chemi-
cal flow is a full two turns counterclockwise from the
closed (clockwise) position.
