INSTALLATION
Mounting the Pump (Model 223–634 Ram)
NOTE: Model
223–634 Ram is only for use with
Check–
Mate 450 Pumps having a 222–790 Displace-
ment
Pump. The Pump Selection Chart on page
3
lists
the Check–Mate 450 Pumps which can be
mounted
on this ram.
This
installation requires Mounting Kit 222–776.
See
Accessories on page 18.
1.
Place the gasket (K) from Mounting Kit 222–776 on
the
ram plate. See Fig 2. Lower the Check–Mate
450
pump
onto the gasket
and plate. Secure the pump’
s
intake
flange
to the plate with the screws (L) and lugs
(M)
included in the mounting kit.
2.
For Senator and Bulldog Check–Mate 450 Pumps
only:
Position the mounting brackets (57) under the
base
of the air motor
. See the
T
ypical Installation on
page 4. Attach the motor to the mounting brackets
with
the screws (27)
and washers (26) provided. The
mounting brackets (57) are not used with Monark
and
President Check–Mate 450 Pumps.

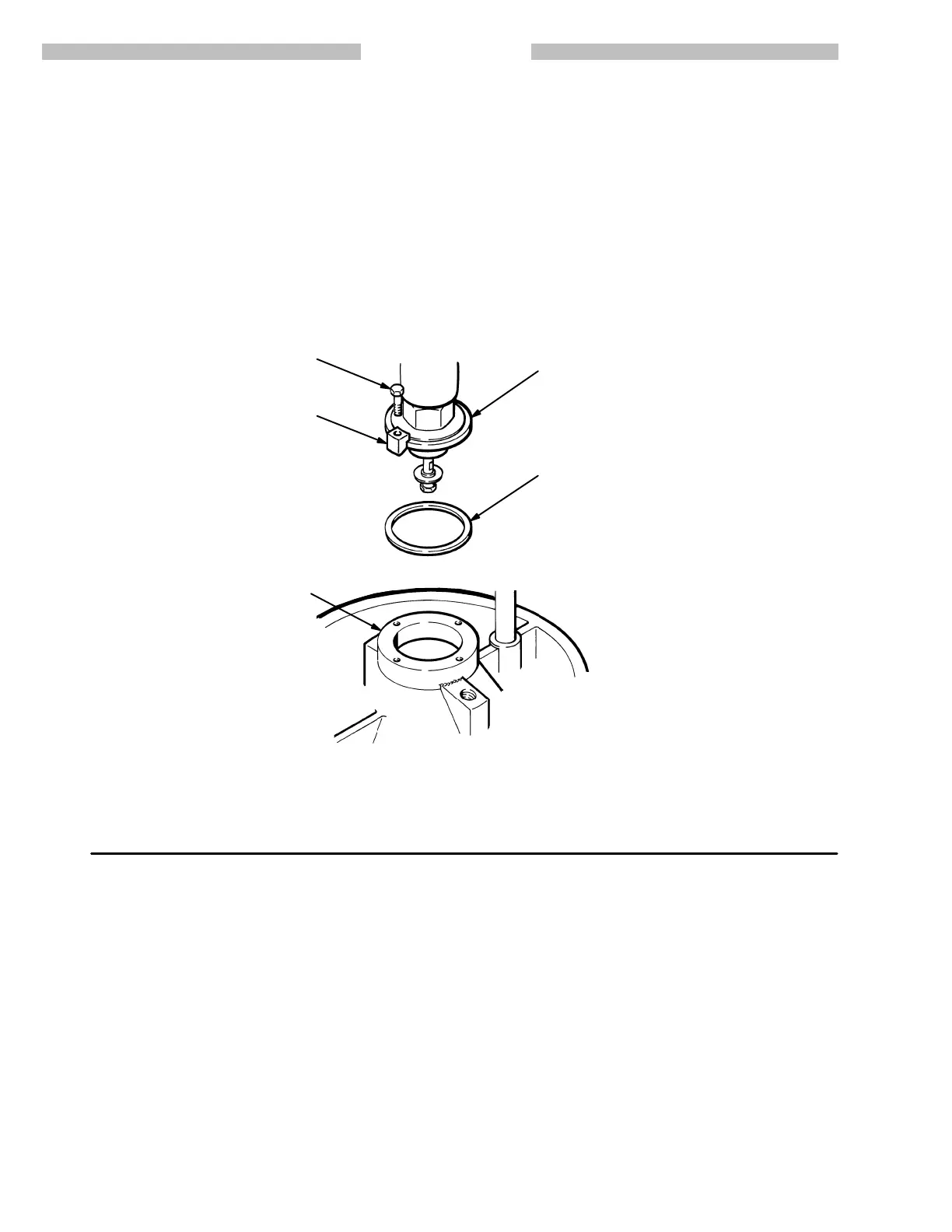

Fig 2
L
M
K
CHECK–MA
TE 450 PUMP
INT
AKE FLANGE
RAM PLA
TE
