Graco Magnum LTS 15 User Manual

Setup
313034A 13

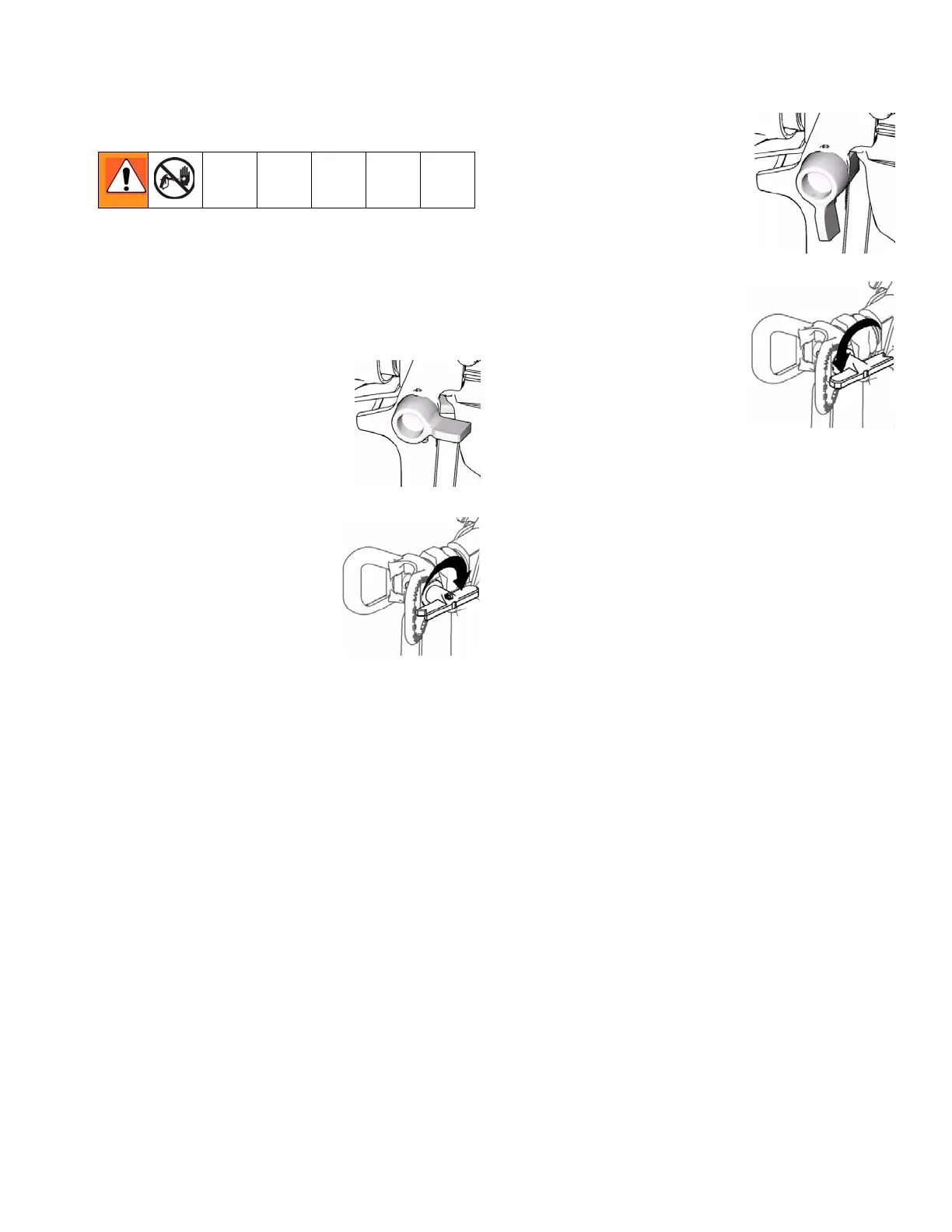

Unclogging Spray Tip
To avoid fluid splashback:
• Never pull gun trigger when arrow-shaped han-
dle is between SPRAY and UNCLOG positions.
• Tip must be pushed all the way into guard.
1. To UNCLOG tip obstruction,
engage trigger lock.
2. Point arrow-shaped handle
backward to UNCLOG
position.
3. Aim gun at piece of scrap
or cardboard.
4. Unlock trigger lock. Pull
trigger to clear clog.
5. When obstruction is
cleared, engage trigger
lock and rotate
arrow-shaped handle
back to SPRAY position.
Point the arrow-shaped handle on the spray tip
forward to SPRAY and backward to UNCLOG
obstructions.
ti8908a
ti9048a
ti8909a
ti9049a

Graco Magnum LTS 15 Specifications

General

Type	Airless Paint Sprayer
Maximum Tip Size	0.015 inches
Maximum Pressure	3000 psi
Power Source	Electric
Voltage	120V
Maximum Hose Length	75 feet
Flow Rate	0.27 GPM
Application	Interior and Exterior
Spray Tip	515
