Graco Magnum LTS 15 User Manual

Setup
313034A 15

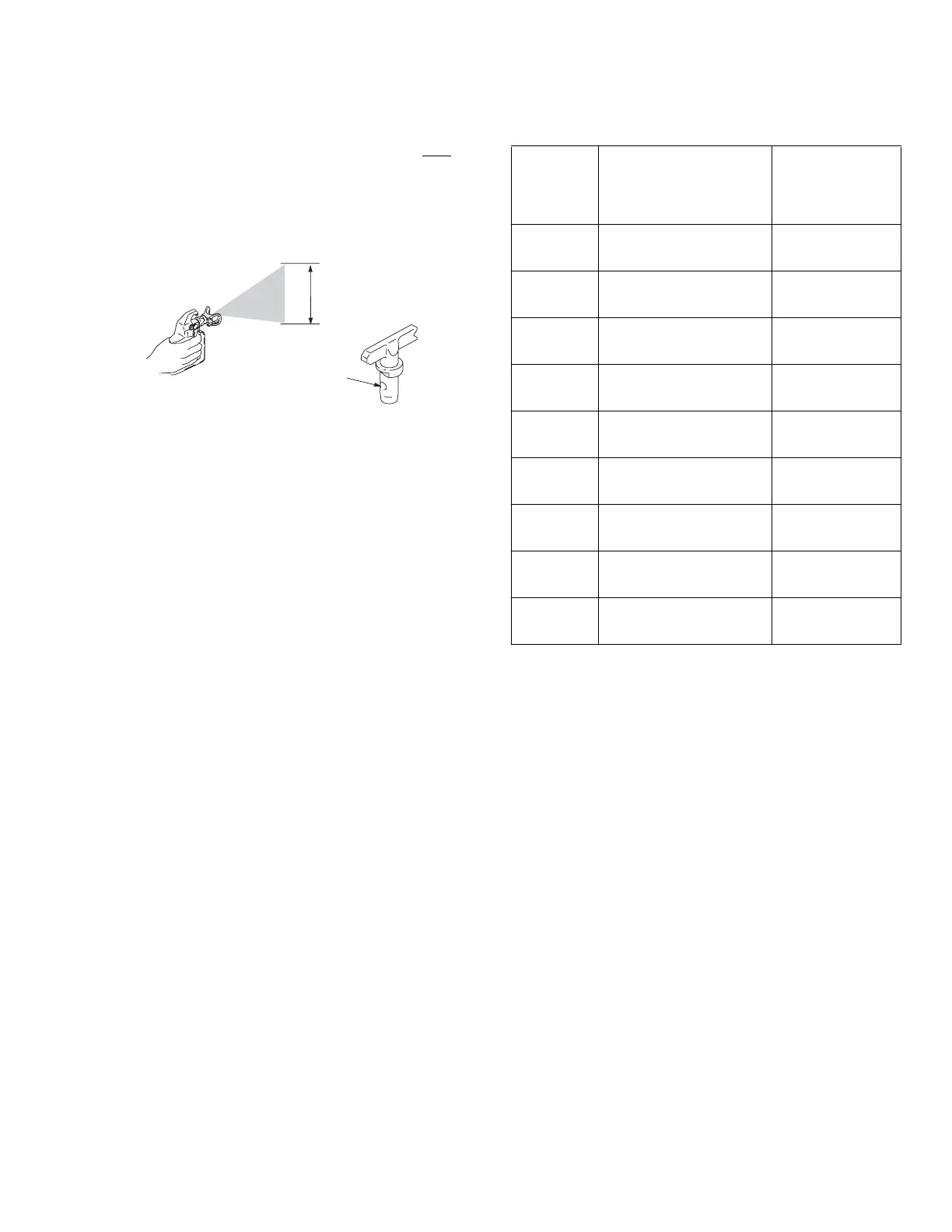

Understanding Tip Number
The last three digits of tip number (i.e.: 221413)
contain information about hole size and fan width
on surface when gun is held 12 in. (30.5 cm) from
surface being sprayed.
Reversible Tip Selection Chart
Example: For an 8 to 10 in. (203 to 254 mm) fan
width and 0.013 (0.33 mm) hole size, order Part No.
221413.
First digit when doubled
= approximate
fan width
413 tip has
8-10 in.
fan width
413 tip has
a 0.013 in
.
hole size
Last two digits = tip hole size in thousands of an inch
ti5559a
Tip
Part
No.
Fan Width 12 in.
(305 mm) from
surface Hole Size
221311 6 - 8 in.
(152 - 203 mm)
0.011 in.
(0.28 mm)
221411 8 - 10 in.
(203 - 254 mm)
0.011 in.
(0.28 mm)
221313 6 - 8 in.
(152 - 203 mm)
0.013 in.
(0.33 mm)
221413 8 - 10 in.
(203 - 254 mm)
0.013 in.
(0.33 mm)
221415 8 - 10 in.
(203 - 254 mm)
0.015 in.
(0.38 mm)
221515 10 - 12 in.
(254 - 305 mm)
0.015 in.
(0.38 mm)
221417 8 - 10 in.
(203 - 254 mm)
0.017 in.
(0.43 mm)
221517 10 - 12 in.
(254 - 305 mm)
0.017 in.
(0.43 mm)
221619 12 - 14 in.
(305 - 356 mm)
0.019 in.
(0.48 mm)

Graco Magnum LTS 15 Specifications

General

Type	Airless Paint Sprayer
Maximum Tip Size	0.015 inches
Maximum Pressure	3000 psi
Power Source	Electric
Voltage	120V
Maximum Hose Length	75 feet
Flow Rate	0.27 GPM
Application	Interior and Exterior
Spray Tip	515
