Storage
24 313034A

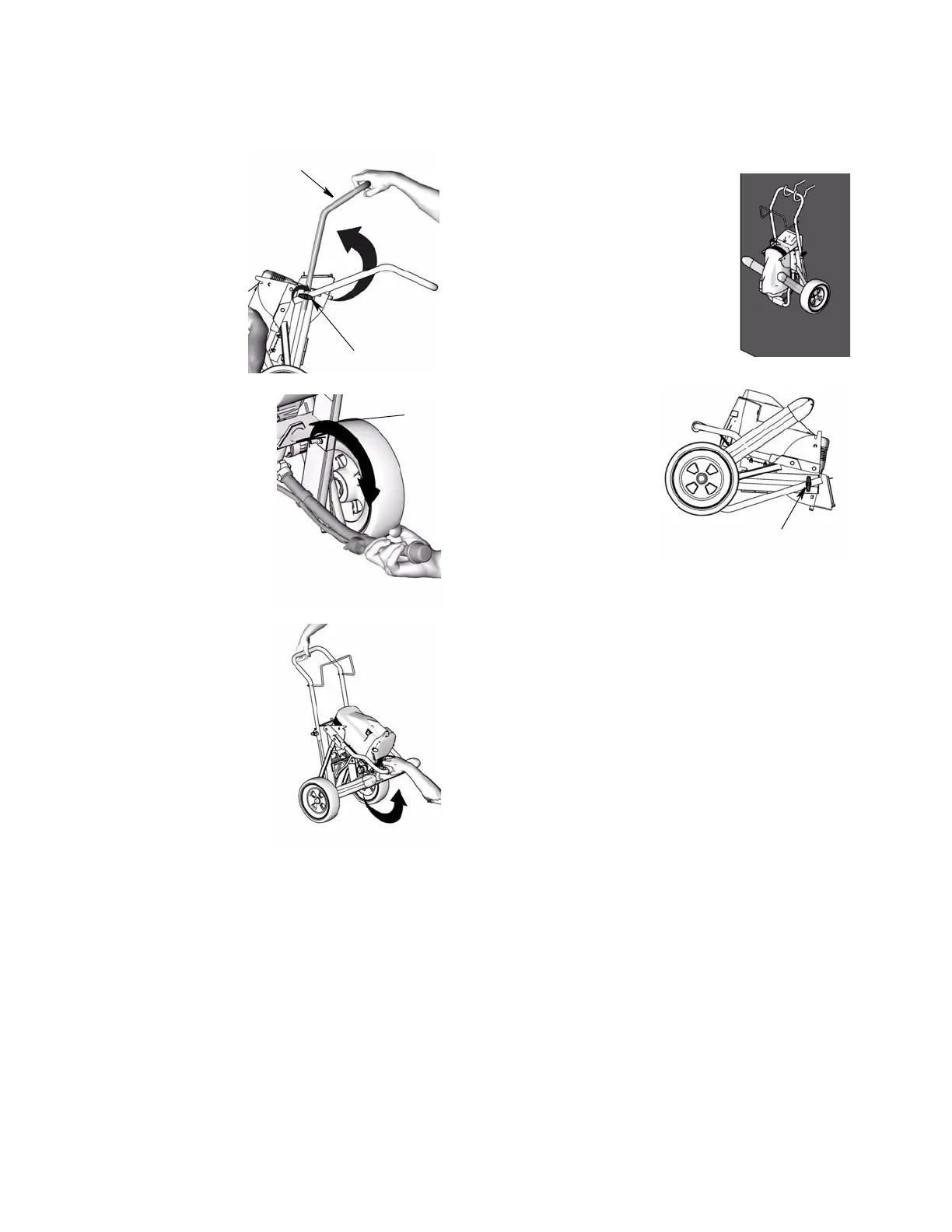

Unfolding the Sprayer (ProLTS Sprayers Only)
1. If folded for compact,
shelf storage, unfold
handle (a) and align
as shown.
2. Tighten wingnuts (b).
3. Remove suction tube
from hook (c) in the back
of the sprayer.
4. Grasp cart handle
securely with one hand.
With the other hand lift
and pull Fold-n-Store
handle (a) located in
front of sprayer frame,
toward you. Lift up front
of sprayer until you hear
a click and the cart is
locked in place.
Storage Options (ProLTS Sprayers Only)
• The folded sprayer can be
stored on a wall as
shown.
• For compact, shelf
storage, loosen, but
do not remove, wing-
nuts (c) and fold han-
dle down as shown.
a
b
ti9675a
c
ti9430a
ti9431a
ti9677a
c
ti9676a

Graco Magnum LTS 15 Specifications

General

Type	Airless Paint Sprayer
Maximum Tip Size	0.015 inches
Maximum Pressure	3000 psi
Power Source	Electric
Voltage	120V
Maximum Hose Length	75 feet
Flow Rate	0.27 GPM
Application	Interior and Exterior
Spray Tip	515
