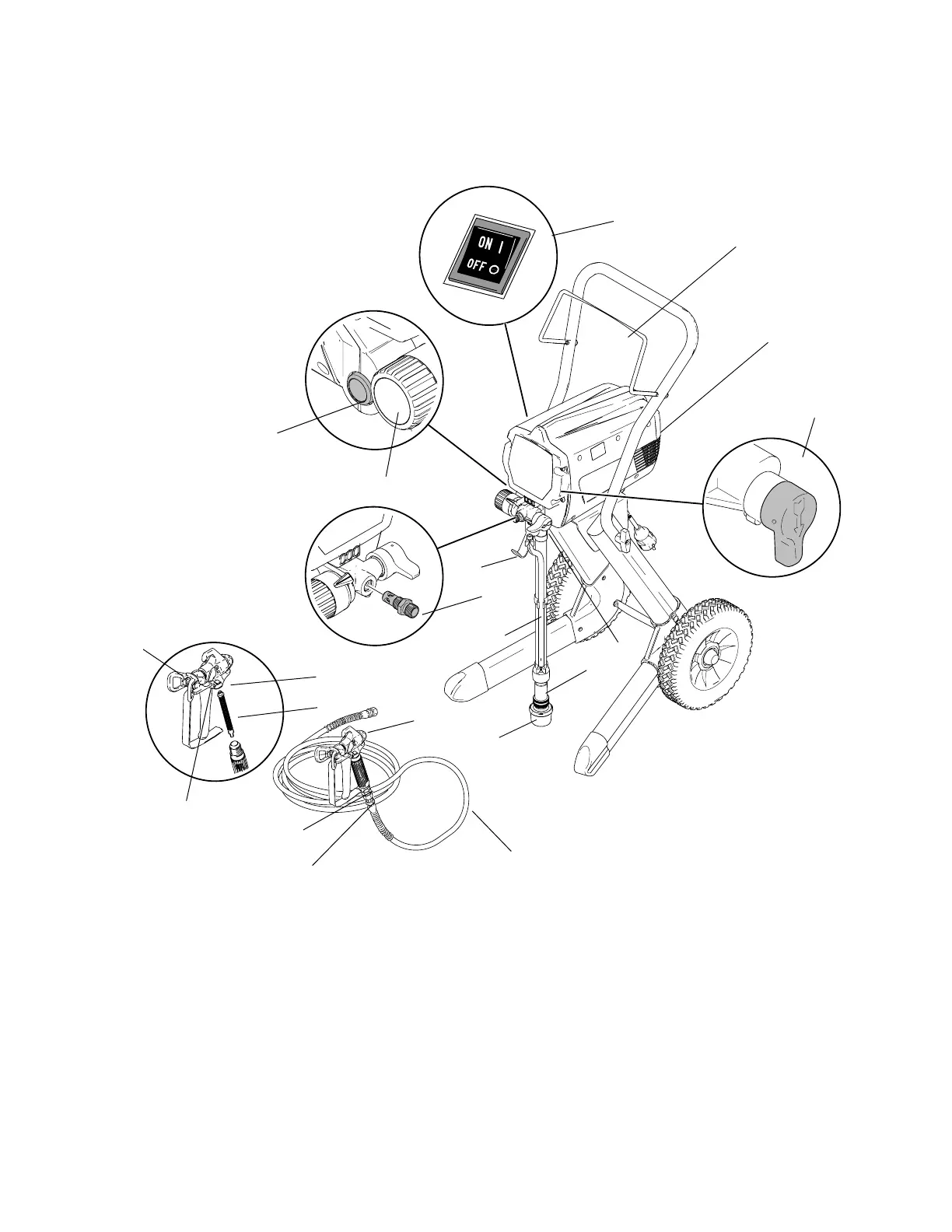

Component Identification (16E665)
3A1222B 7
Component Identification (16E665)
B
J
A
H
L
G
K
D
C
P
M
U
S
R
Q
ti15964a
T
V
W
Z
X
A Electric motor (inside enclosure)
B Power switch
C Pressure control knob
D Pump fluid outlet fitting
G Suction Tube
H Prime tube (with diffuser)
J Prime/Spray valve control
K Fluid inlet connection and inlet valve
L Inlet screen
M Paint hose
P SG3 airless spray gun
Q Tip guard
R Reversible spray tip
S Trigger safety lever
T Gun fluid inlet fitting
U Smooth Glide™ swivel
V Gun fluid filter (in handle)
W Hose/cord wrap bracket
X Pail hanger
Z Pump Priming Button
