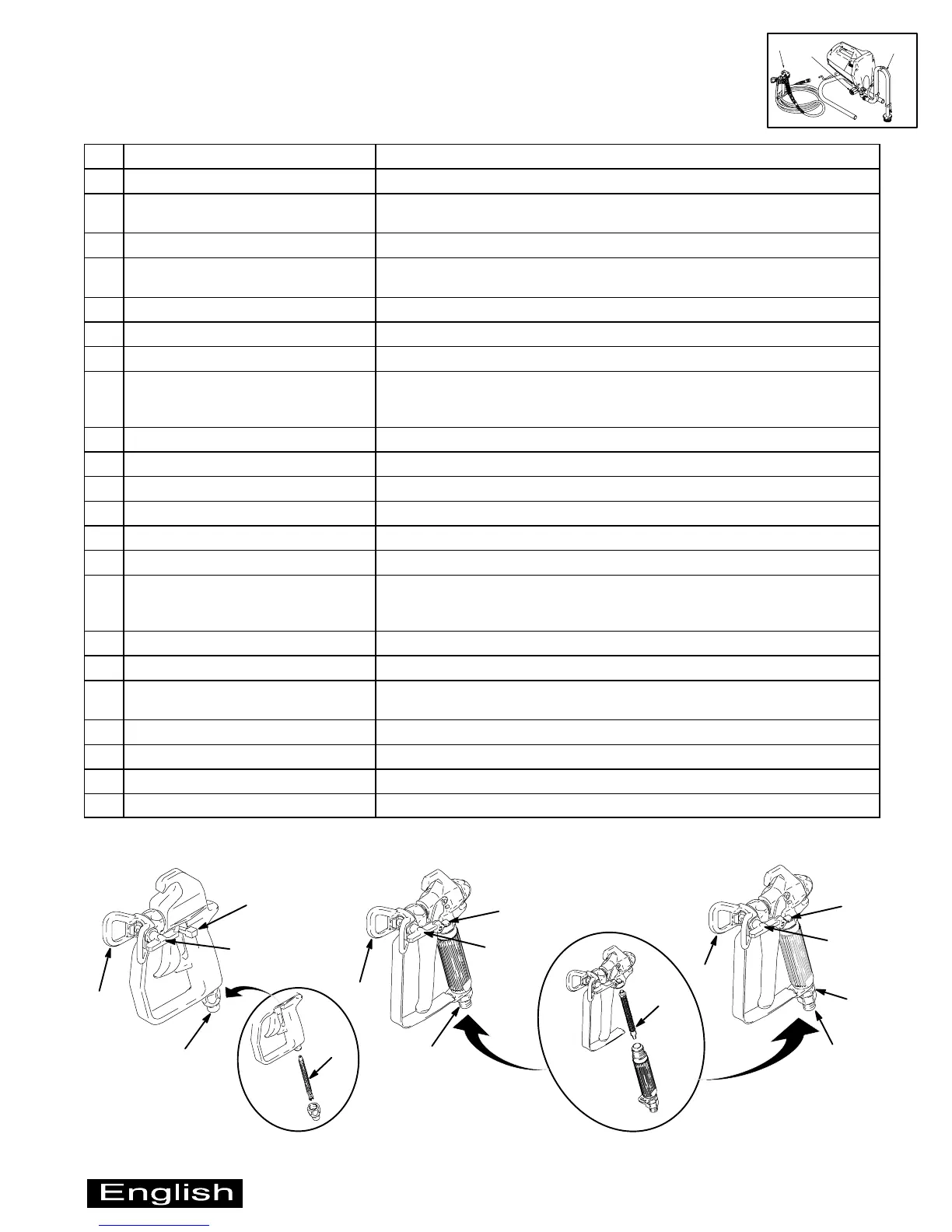

Component Identification and Function
A Electric motor (inside of shroud) Provides mechanical power to pump
B Power switch For manually turning on/off electrical power to motor (“I” is ON / “0” is OFF)
C Pressure Control knob For manually increasing (turn clockwise) and decreasing (turn
counter-clockwise) fluid pressure in pump, hose, and gun
D Pump fluid outlet fitting Threaded connection for paint hose
E InstaClean fluid filter D Filters fluid coming out of pump to reduce tip clogging and improve finish
D Self cleans during pressure relief
F Power-Piston pump (behind cover) Pumps and pressurizes fluid and delivers it to paint hose
G Suction tube Draws fluid from paint pail into pump
H Prime tube (with diffuser) Drains fluid in system during priming and pressure relief
J Spray/Prime valve control D Directs pressurized fluid to paint hose in SPRAY position (pointing forward)
D Directs fluid to prime tube in PRIME position (pointing down)
D Automatically relieves system pressure in overpressure situations
K Fluid inlet connection Where suction tube connects to pump
L Inlet screen Prevents debris from entering pump
M Paint hose Transports high-pressure fluid from pump to gun
N Cord wrap bracket For stowing power cord (MAGNUM XR5 only)
P Airless spray gun Manually-controlled, hand-held on/off device for fluid being sprayed
Q Tip guard Reduces risk of fluid injection injury
R Reversible tip D Atomizes fluid being sprayed, forms spray pattern, and controls fluid flow
according to hole size
D Reverses for unclogging without disassembly
S Trigger safety lever Prevents accidental triggering of gun
T Gun fluid inlet fitting Threaded connection for paint hose
U Smooth Glidet swivel
(SG3 gun only)
Allows gun to swivel without twisting paint hose
V Gun fluid filter (in handle) Filters fluid entering gun to reduce tip clogging and improve finish
W Hose/Cord wrap bracket For stowing paint hose and power cord (MAGNUM XR7 and XR9 only)
X Pail hanger For transporting pail by its handle (MAGNUM XR7 and XR9 only)
Y Power Flush attachment (included) Connects garden hose to suction tube for power flushing water-base fluids
SG1 Gun
included with MAGNUM XR5
Q
R
S
T
V
SG2 Gun
included with MAGNUM XR7
Q
R
S
SG3 Gun
included with MAGNUM XR9
Q
R
S
U
T
T
V
9561A
9562A
A
B
C
