Graco Merkur A Series - Dimensions

Dimensions
12 312792F
Dimensions
Displacement Pump Dimensions
* Height measured at mid-stroke.
F
IG. 8
Displacement
Pump
A
(Height*)
in. (mm)
B
(Inlet Size)
in. npt
C
(Outlet Size)
in. npt
Weight
lbs (kg)
LWO25A
14.9 (378) 1/2 in. 3/8 in. 9.0 (4.1)
LW050A
14.8 (376) 3/4 in. 3/8 in. 13.2 (6)
LW075A
15.4 (391) 3/4 in. 3/8 in. 15.3 (6.9)
LW100A
15.4 (391) 3/4 in. 3/8 in. 18.6 (8.4)
LW125A
15.6 (396) 1 in. 1/2 in. 21.2 (9.6)
LW150A
15.6 (396) 1 in. 3/4 in. 22.0 (10)
C
C
A
A

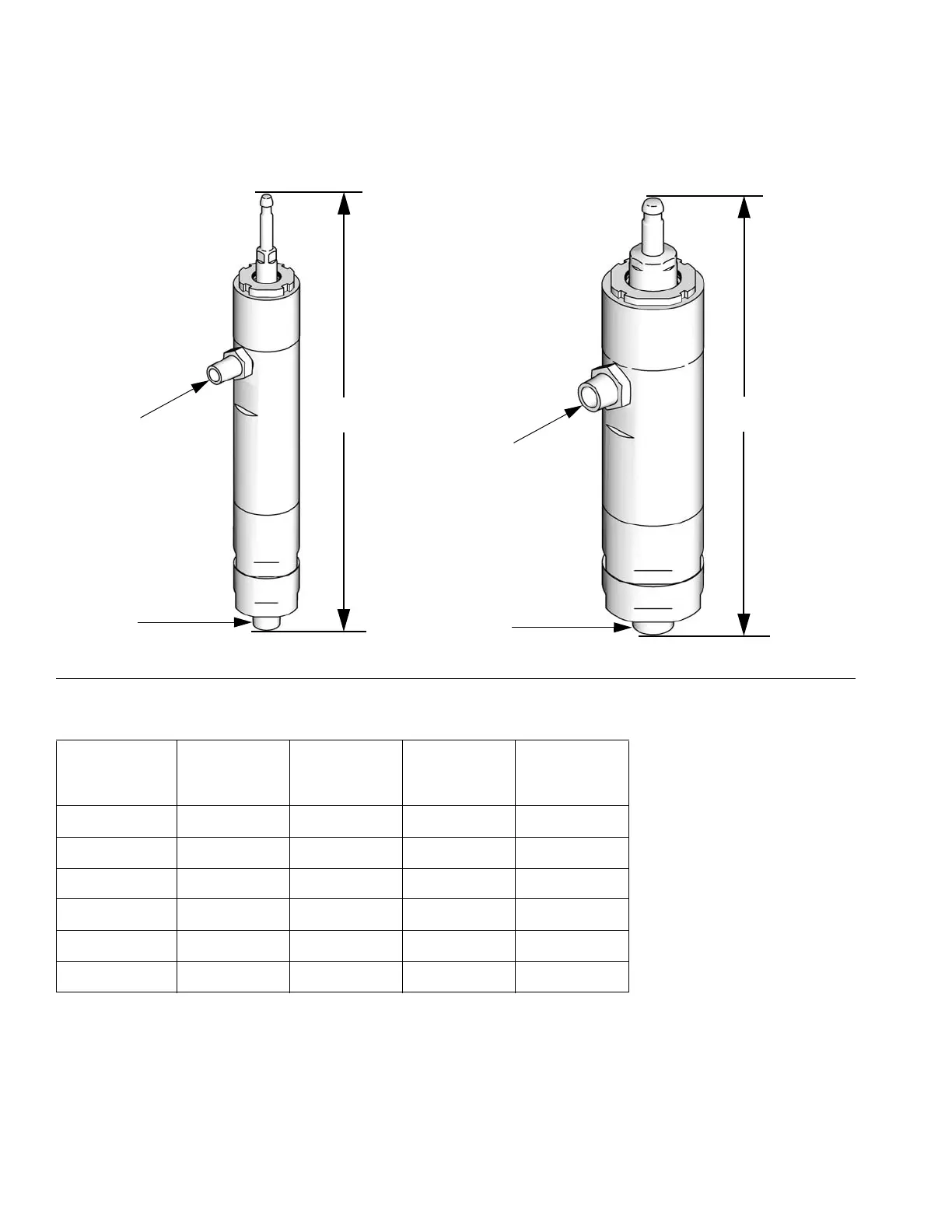

Model LW025A Model LW150A
ti11643a
ti11645a
B
B
