Graco Monark A Series 215-363 - Dimensional and Mounting Layouts; Dimensional Drawings; Mounting Hole Layouts

5
307-043

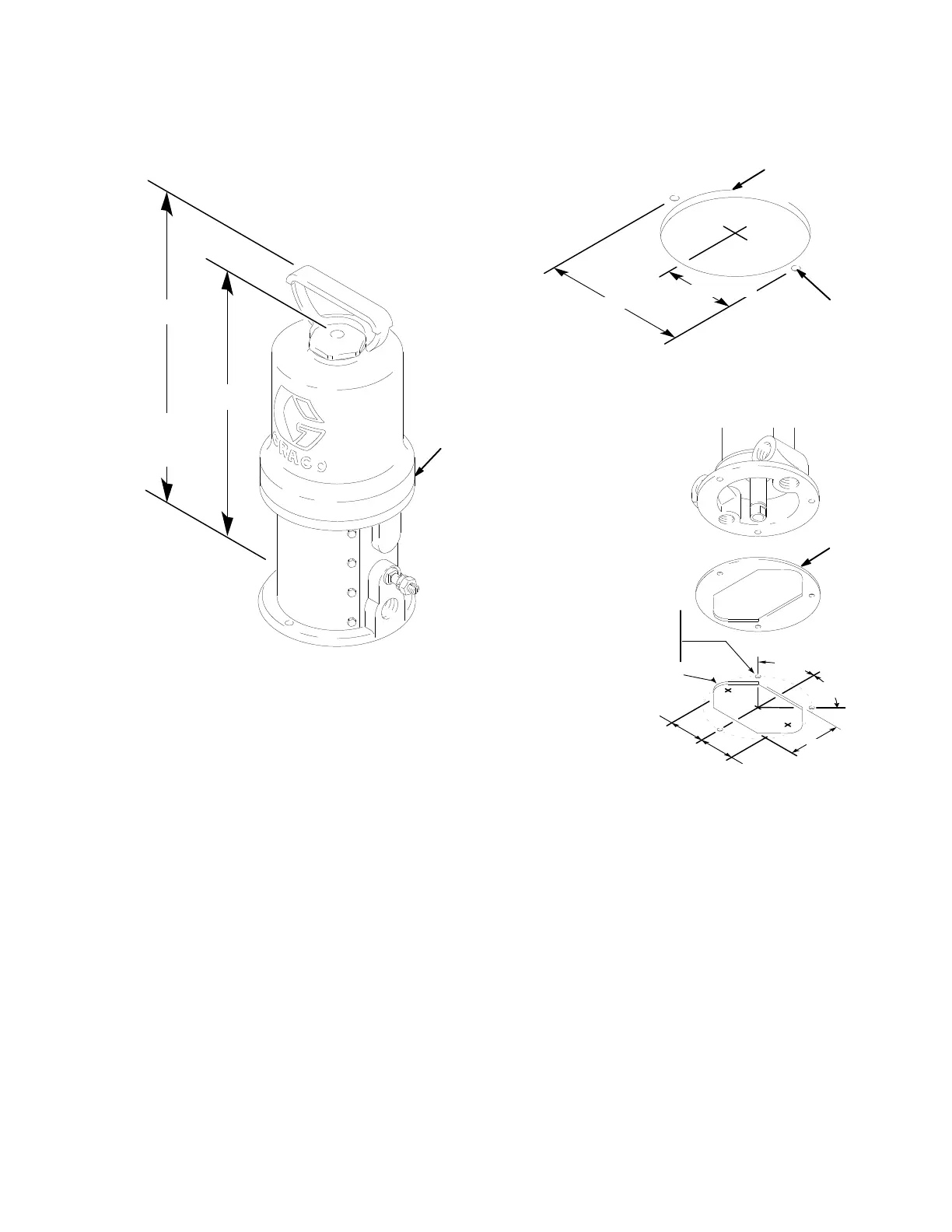

Dimensional
Drawings
05709
11.75 in.
(298.4 mm)
13.25 in.
(336.6 mm)
15.75 in.
(400.1 mm)
for
206–955
5.75 in.
(146.1 mm)
Mounting Hole
Layouts
Three 0.34 in. (8.6 mm)
diameter holes
on 6.38 in. (162.1 mm) bolt
circle
3 T ie Rod Pumps
05707
05708
45_
45_
2.5
in. (64 mm)
2.5 in.
(64 mm)
4 in. (102 mm)
1 in. (25 mm)
radius
161–322
gasket
5 in. (127 mm)
2.5 in. (64 mm)
2 Stanchion T ube Pumps
0.28 in. (7.1 mm)
diameter
4.38 in. (1 1 1.3 mm)
diameter
