Graco Monark User Manual

14 307985

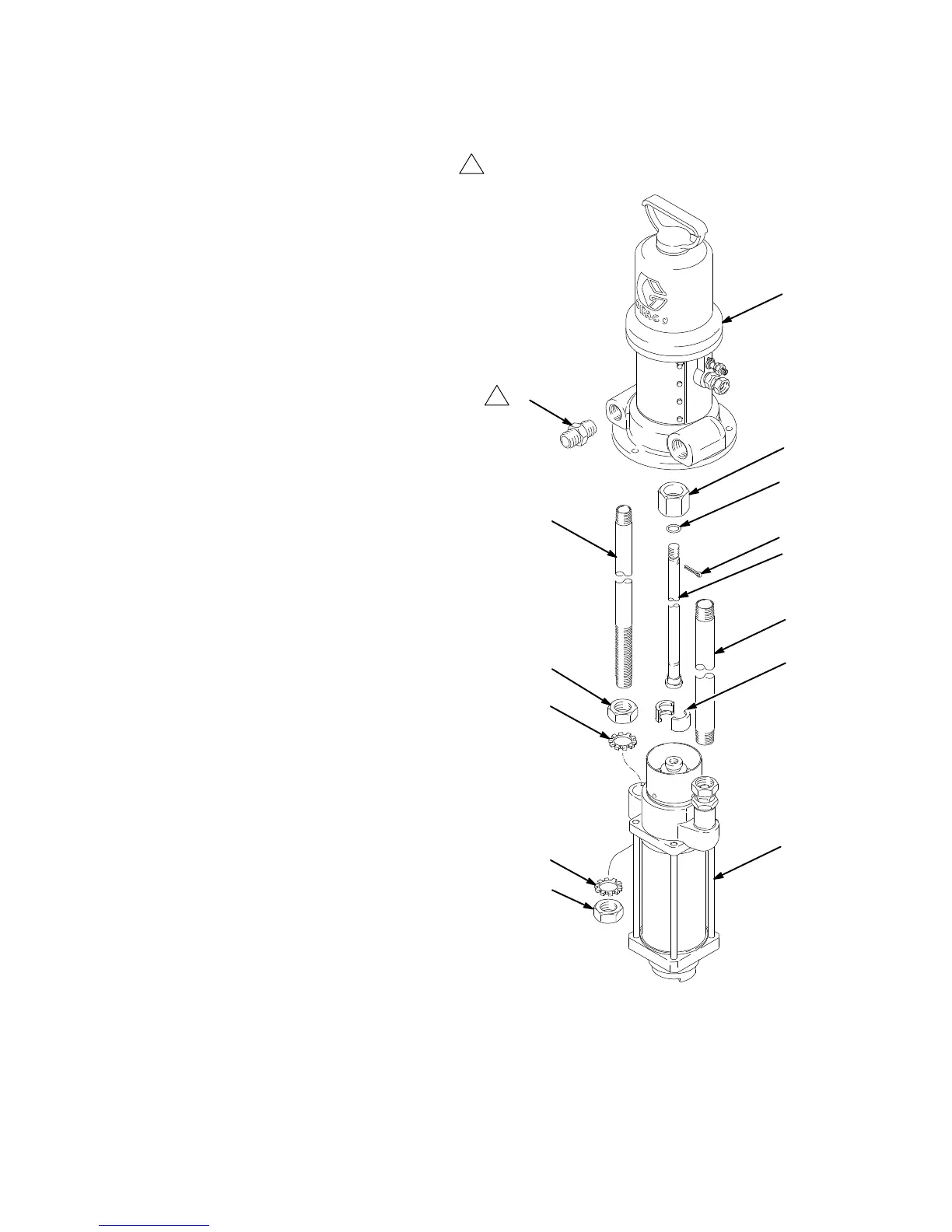

Parts
Model 223185, Series C
2:1 Ratio Monark Pump, 55 Gallon (200 Liter) Drum Size; UHMWPE and Leather Packed
Ref Part
No. No. Description Qty
1 206955 AIR MOTOR, Monark
See 307043 for parts 1
3 223177 PUMP, displacement;
used on Model 223185
See 307983 for parts 1
4 191611 ROD, connecting;
19.54 in. (496.3 mm) long 1
6 100579 PIN, cotter 1
7 162648 LOCKWASHER, ext shakeproof 2
8 156082 O-RING; nitrile rubber 1
9 171217 NUT, special lock;
3/4 garden hose thread 2
11 162646 TUBE, return;
24.675 in. (626.7 mm) long 1
12 190177 TUBE, supply;
19.3 in. (490.2 mm) long 1
13 160032 NIPPLE; 3/4 npt (used on
Model 223185 only) 1
14 190117 NUT, coupling 1
15 190066 COLLAR, coupling 2
06087
1
1
Used on Model 223185 only.
3
4
6
7
9
11
12
13
14
15
7
8
9
1

Graco Monark Specifications

General

Type	Diaphragm Pump
Maximum Fluid Pressure	100 PSI
Air Inlet Size	1/2 inch NPT
Fluid Inlet Size	1 inch NPT
Fluid Outlet Size	1 inch NPT
Wetted Materials	Polypropylene, Santoprene
Flow Rate	5.5 GPM
Maximum Head	230 feet
Inlet Size	1 inch NPT
Outlet Size	1 inch NPT
Material	Polypropylene, Stainless Steel
Horsepower	N/A (Air Operated)
