307985 17

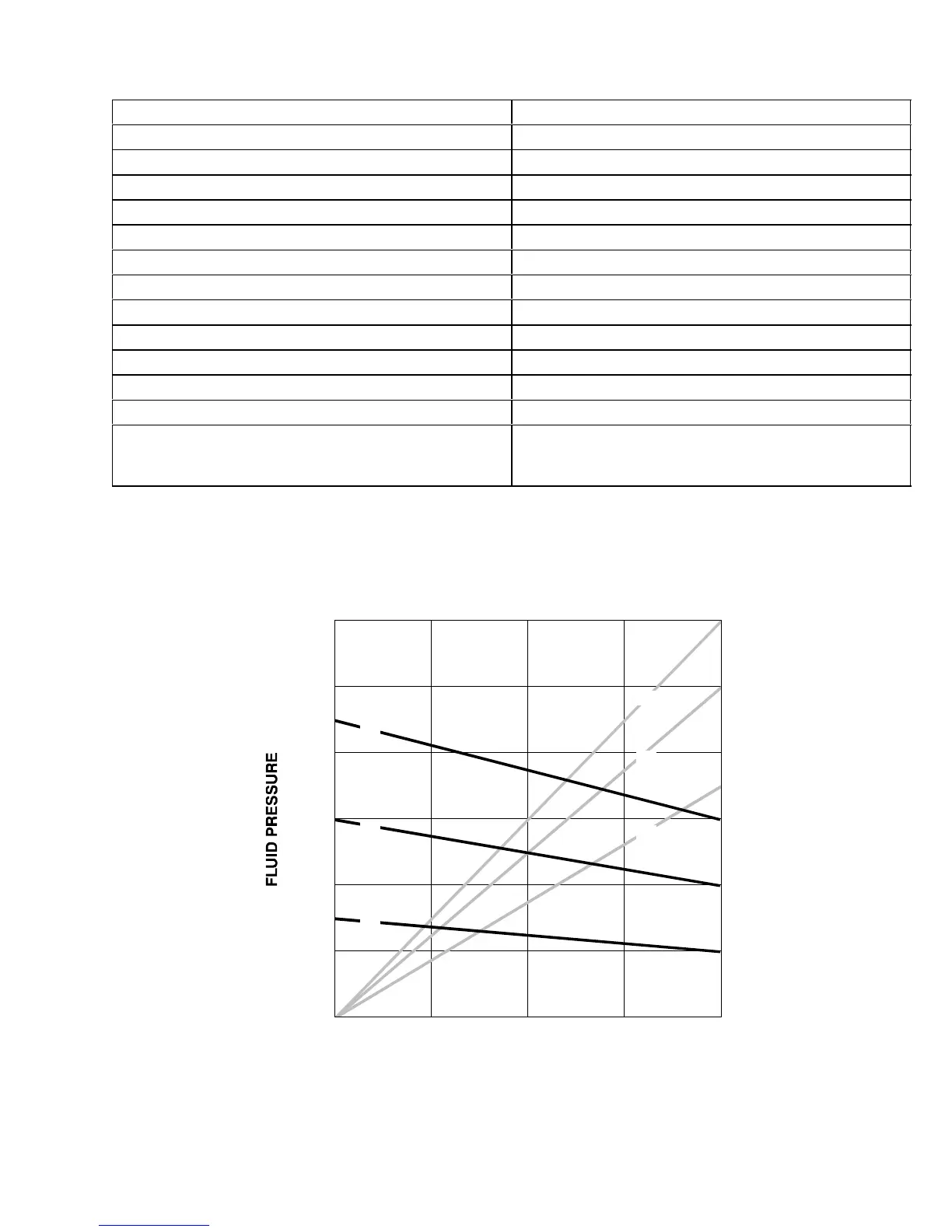

Technical Data
Category Data
Ratio 2:1
Maximum fluid working pressure 200 psi (14 bar)
Maximum air input pressure 100 psi (7 bar)
Pump cycles per 1 gallon (3.8 liters) 11
Fluid flow at 60 cycles per minute 5.5 gpm (21 liters/min)
Fluid inlet size 1–1/2 npt(f)
Fluid outlet size 1 in. npt(f)
Air inlet size 3/8 npsm(f)
Weight 40 lb (18.14 kg)
Maximum pump operating temperature 180_F (82_C)
* Sound level at 100 psi, 15 cycles per minute 62.6 dBa
* Sound power level at 100 psi, 15 cycles per minute 71.8 dBa
Wetted parts Supply and Return Tubes: Nickel-plated carbon steel
Air Motor Base: Aluminum
Displacement Pump: Refer to manual 307983
* Tested in accordance with ISO 3744.
0
40
80
120
160
200
240
0.0 1.5 3.0 4.5 6.0
cycles per min 16 32 48 64
bar
psi
5.7 11.4 17 23liters/min
gpm
FLUID FLOW (TEST FLUID: NO 10 MOTOR OIL)
To find Fluid Outlet Pressure (bar/psi) at a specific fluid flow (lpm/
gpm) and operating air pressure (bar/psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet
pressure curve (black). Follow left to scale and read fluid outlet
pressure.
To find Pump Air Consumption (m#/min or scfm) at a specific fluid
flow (lpm/gpm) and operating air pressure (bar/psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected air consump-
tion curve (gray). Follow right to scale and read air consumption.
m#/min
scfm
4.0
0.224
0.168
0.056
2.0
0.112
6.0
8.0
10.0
12.0
0.280
0.336
2.8
5.6
8.4
11.2
14.0
16.8
KEY: Fluid Outlet Pressure - Black Curves
Air Consumption - Gray Curves
A 100 psi (7 bar) air pressure
B 70 psi (4.9 bar) air pressure
C 40 psi (2.8 bar) air pressure
A
A
B
B
C
C
