Graco Monark User Manual

16 307985

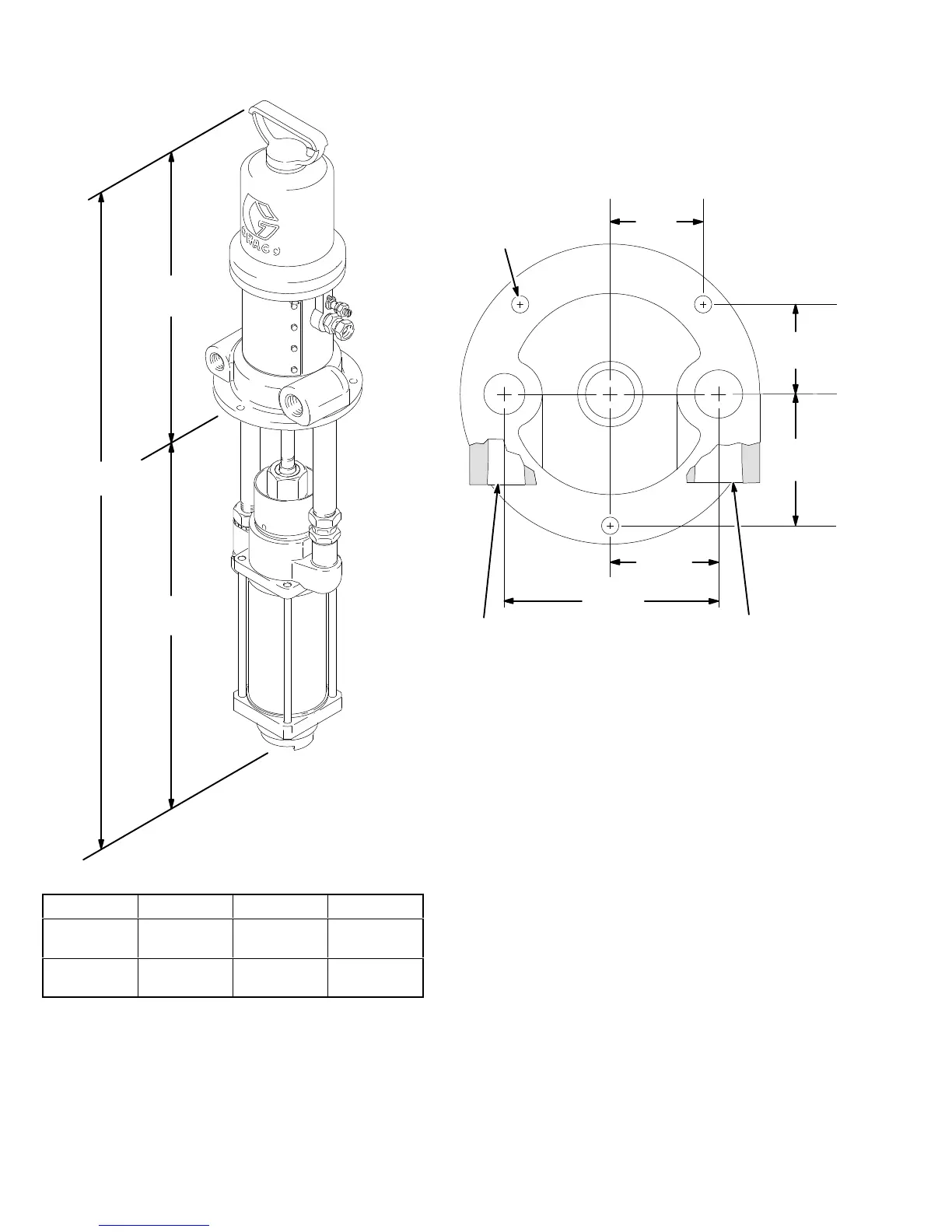

Dimensions
06085
A
B
C
Model No. A B C
223185 47.81 in.
(1215 mm)
15.31 in.
(389 mm)
32.5 in.
(826 mm)
223186 35.31 in.
(897 mm)
15.31 in.
(389 mm)
20 in.
(508 mm)
Mounting Hole
Layout
2.254 in.
(57.25 mm)
5.250 in.
(133.4 mm)
0.375 in.
(9.52 mm)
diameter
2.625 in.
(66.67 mm)
3.188 in.
(80.97 mm)
NOTE: Use mounting gasket 161322.
1 in. npt(f)
outlet
3/4 npt(f)
return
06088
2.254 in.
(57.25 mm)

Graco Monark Specifications

General

Type	Diaphragm Pump
Maximum Fluid Pressure	100 PSI
Air Inlet Size	1/2 inch NPT
Fluid Inlet Size	1 inch NPT
Fluid Outlet Size	1 inch NPT
Wetted Materials	Polypropylene, Santoprene
Flow Rate	5.5 GPM
Maximum Head	230 feet
Inlet Size	1 inch NPT
Outlet Size	1 inch NPT
Material	Polypropylene, Stainless Steel
Horsepower	N/A (Air Operated)
