Graco Monark User Manual

6 307985
Installation
06089

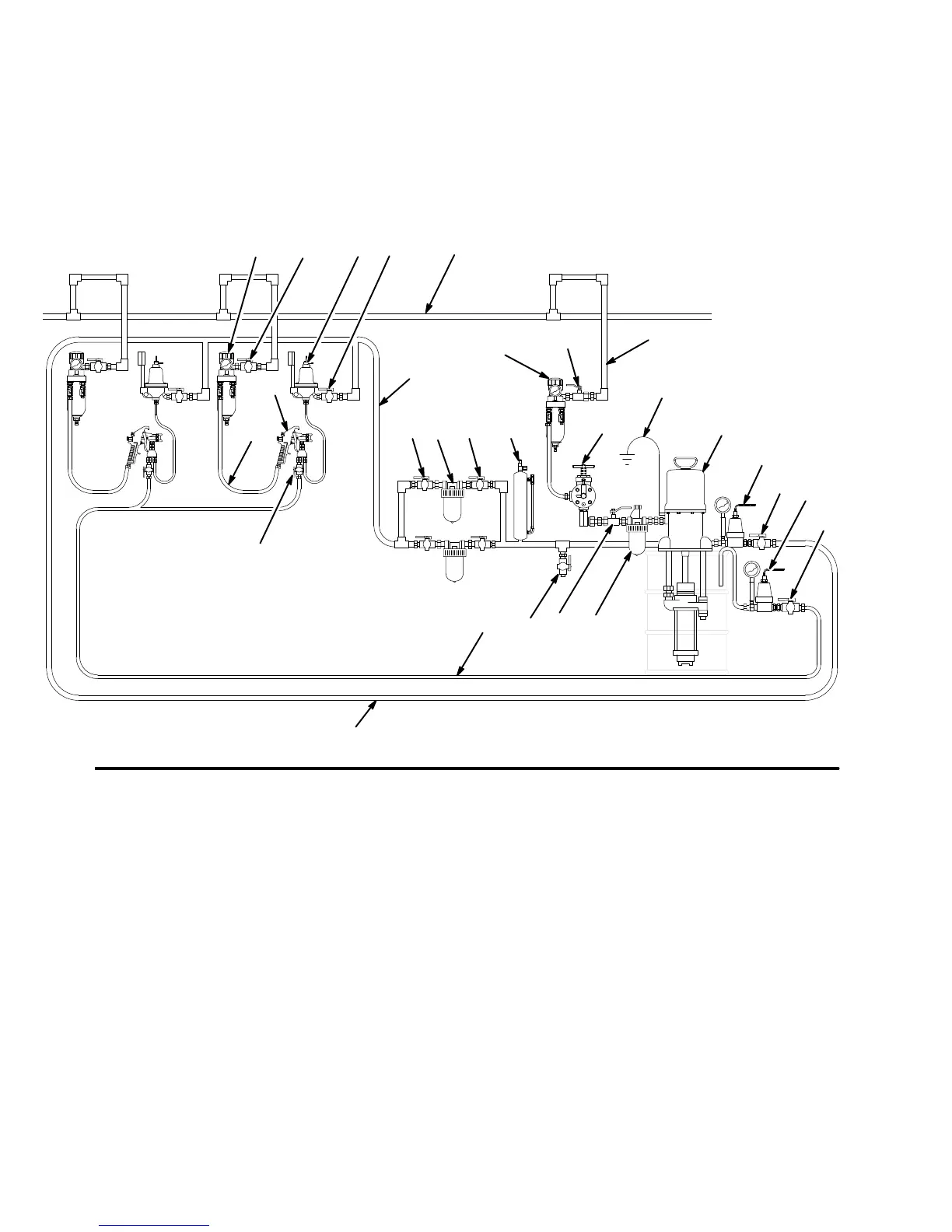

Fig. 2
KEY
A Bleed-Type Master Air Valve
(required, for pump)
B Air Filter/Regulator
C Air Line Lubricator
D Fluid Drain Valve (required)
E Surge Tank
F Fluid Shutoff Valves
G Fluid Filter
H Fluid Pressure Regulator
J Air Spray Gun
K Back Pressure Regulator
L Pump
M Air Supply Line
N Bleed-Type Master Air Valves
(for accessories)
P Main Fluid Supply Line
R Pump Runaway Valve
S Main Fluid Return Line
T Secondary Fluid Return Line
Y Ground Wire (required;
see page 5 for installation
instructions)
A
B
D
EFG
H
J
K
M
N
P
R
S
T
Y
B
C
F
F
F
F
F
K
L
M
M
N

Graco Monark Specifications

General

Type	Diaphragm Pump
Maximum Fluid Pressure	100 PSI
Air Inlet Size	1/2 inch NPT
Fluid Inlet Size	1 inch NPT
Fluid Outlet Size	1 inch NPT
Wetted Materials	Polypropylene, Santoprene
Flow Rate	5.5 GPM
Maximum Head	230 feet
Inlet Size	1 inch NPT
Outlet Size	1 inch NPT
Material	Polypropylene, Stainless Steel
Horsepower	N/A (Air Operated)
