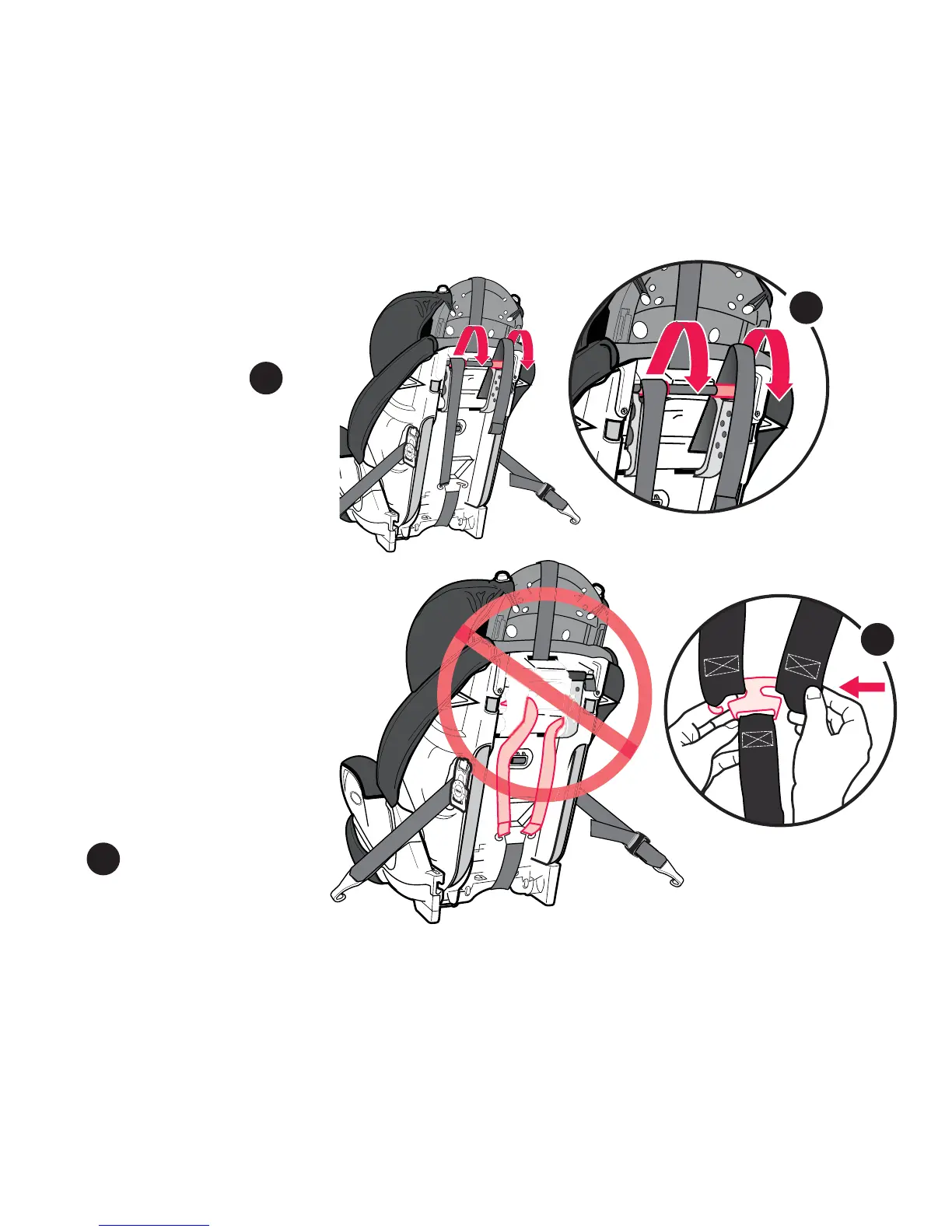

8. Use plastic strap guides as
a guide to feed the harness up
over the red rollers. Make sure
to feed straps OVER red rollers
and plastic strap guides .
Make sure that the tether strap
does not interfere when
changing the harness strap
height positions.
9. If the straps are not fed
OVERWKHUHGUROOHUVWKH
assembly is incorrect and MUST
be corrected before using child
restraint.
10. Reassemble straps onto
metal junction plate exactly as
shown .
Check that straps are
completely within the slots
and that they are not twisted.
Harness
straps
MUST
go over
red
rollers.
12
11
11
12

Graco NAUTILUS Elite Specifications

General

Height Limit	27-57 inches
Harness Type	5-point harness
Recline Positions	3
Headrest Positions	10
Forward-facing Weight Capacity	22-65 lbs
Car Seat Weight	20.5 lbs
Warranty	1 year limited warranty
Installation	LATCH or seat belt
Booster Seat Weight Capacity	30-100 lbs
Booster Seat Height Capacity	Up to 57 inches
