Graco NAUTILUS Elite User Manual

53

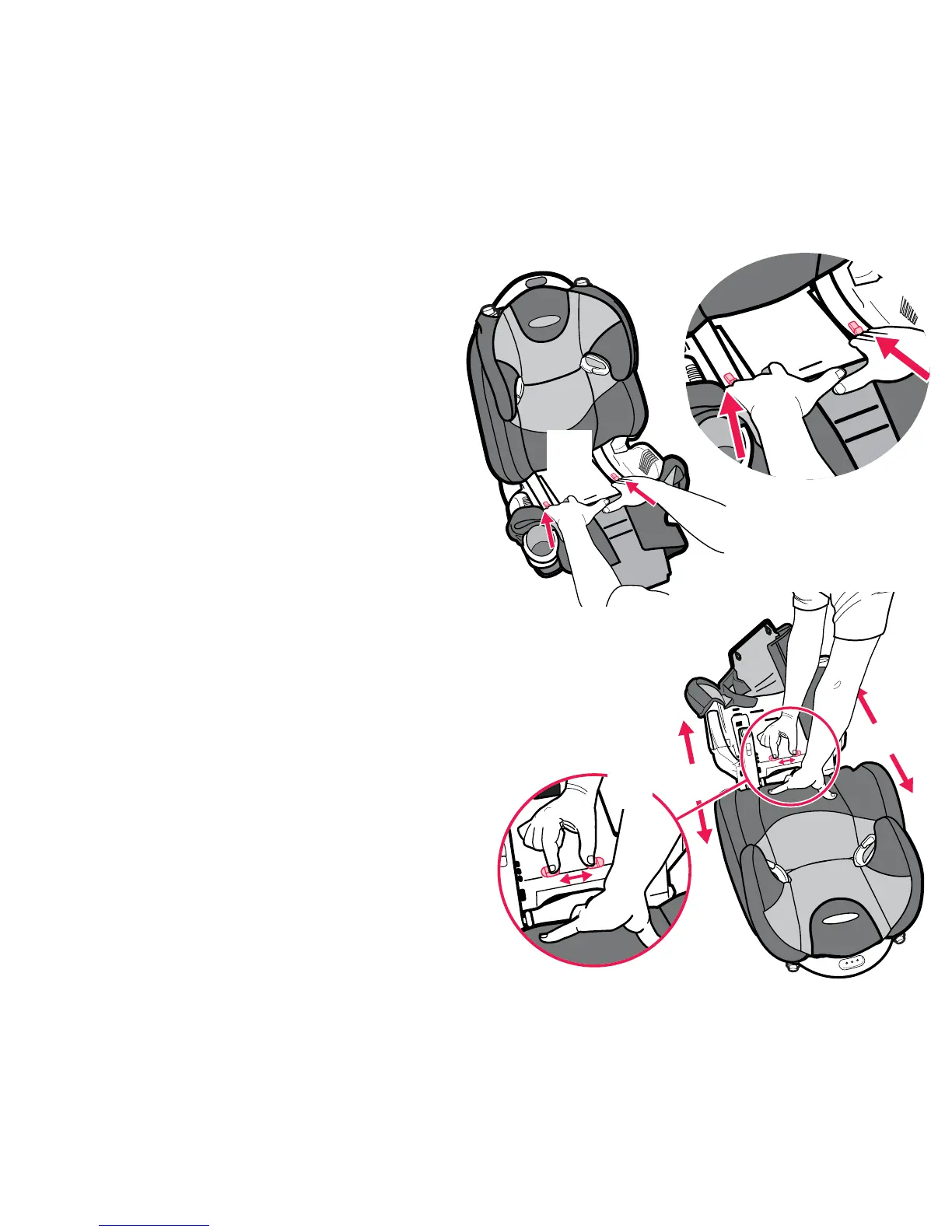

3. Pull the seat pad out of the way to reveal
red buttons as shown in
. Slide the buttons
to release the back support from the base and
lower it into a flat position.
:KHQUHPRYLQJEDFNVXSSRUW\RXPXVW
support the back support when sliding the red
buttons that disengage the back support from
WKHEDVH0DNHVXUHDOOKDQGVILQJHUVDQG
other objects are not behind the back support
when removing it.
4. Move seat pad fabric out of the way and
squeeze red buttons together to release back
support from seat. Pull seat and back support
apart
.



Graco NAUTILUS Elite Specifications

General

Height Limit	27-57 inches
Harness Type	5-point harness
Recline Positions	3
Headrest Positions	10
Forward-facing Weight Capacity	22-65 lbs
Car Seat Weight	20.5 lbs
Warranty	1 year limited warranty
Installation	LATCH or seat belt
Booster Seat Weight Capacity	30-100 lbs
Booster Seat Height Capacity	Up to 57 inches
